Appendix | Software
A 3.3.3
There are two possible settings in the Adjustment menu:
- Two-point adjustment
- Zero-point adjustment

A 3.3.3.1 Two-point Adjustment

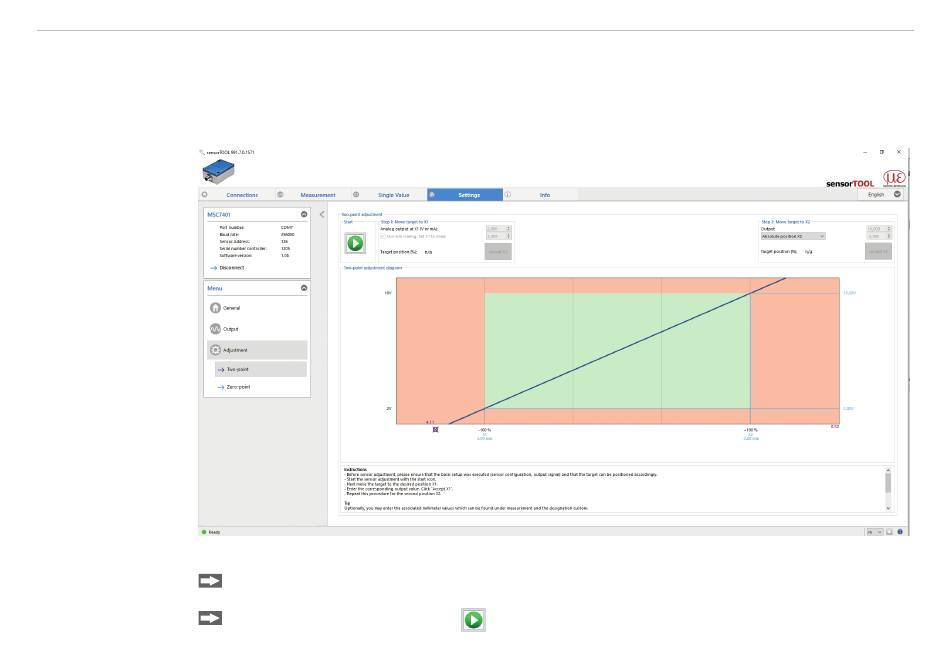

Fig. 72 View 1 Two-point adjustment
induSENSOR DTD / MSC7xxx
Adjustment
Please make sure before the adjustment that the basic settings were carried out (sensor configuration,
output signal) and that the target can be positioned accordingly.
Start the sensor adjustment via the button.
Page 79
