Appendix | Software

A 3.3.3.2 Zero-point Adjustment

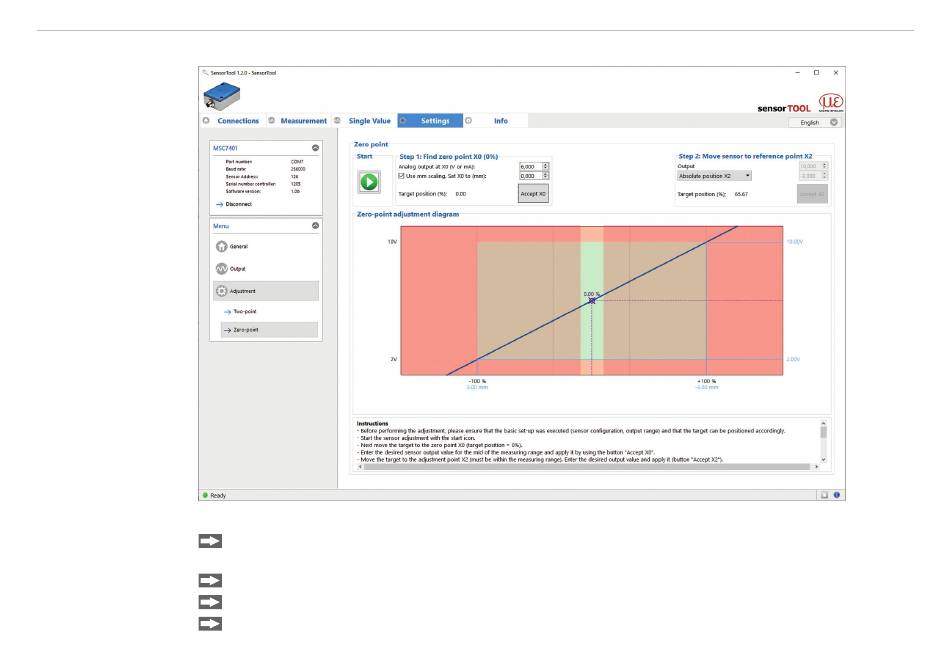

Fig. 75 View 1 Zero-point adjustment
induSENSOR DTD / MSC7xxx
Please make sure before the adjustment that the basic settings were carried out (sensor configuration,
output signal) and that the target can be positioned accordingly.
Start the sensor adjustment via the Start button.
Then move the target to the zero point X
Enter the desired output value for the midrange and accept it by clicking the button Accept X
(target position = 0 %)
0
.
0
Page 82
