MICRO-EPSILON inertialSENSOR INC5701 Assembly Instructions

Pin Assignment
Connect the open cable end in accordance with
the color coding.
Pin 1 Color 2 Description
1 White Voltage output (angle)
3
2 Brown GND (current output)
4 8
3 Green Current output (angle) 5
4 Yellow RS485+
GND
5 Gray
Fig. 4 View of
(signal voltage output)
solder pin side,
Black/
6 GND (Supply) 8-pin, A-coded,
pink
female
7 Blue RS485-
connector
8 Red Supply+ 3
1) - SA - Connector
2) PCx/8-M12 Power supply and output cable, see
operating instructions, Chap. A 1.
3) 5 - 32 VDC
MICRO-EPSILON MESSTECHNIK GmbH & Co. KG
Königbacher Straße 15
94496 Ortenburg / Germany
Tel. +49 (0) 8542 / 168-0 / Fax +49 (0)8542 / 168-90
e-mail info@micro-epsilon.de
www.micro-epsilon.com
Current and Voltage Output
The sensor makes the angular value available as ana-
log output variable either as current or voltage value on
separate pins, depending on the configuration of the
sensor using the software tool of Micro-Epsilon.
2
Further Information
1
For further information about the system read the
7
6 operating instructions. You will find this online at:
www.micro-epsilon.de/download/manuals/
man--inertialSENSOR-INC5701--en.pdf.
Decommissioning, Disposal
Remove the power and output cable from the
sensor.
Incorrect disposal may cause harm to the environment.
Dispose of the device, its components and ac-
cessories, as well as the packaging materials in
compliance with the applicable country-specific
waste treatment and disposal regulations of the
region of use.

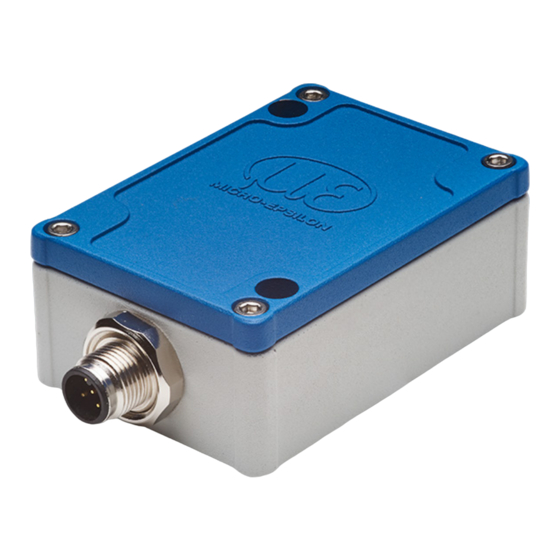

Assembly Instructions
inertialSENSOR
INC5701
