MICRO-EPSILON induSENSOR DTD Operating Instructions Manual page 29

Installation and Assembly
Secondary +
Center tab
Secondary center tap
Sensor cable shield

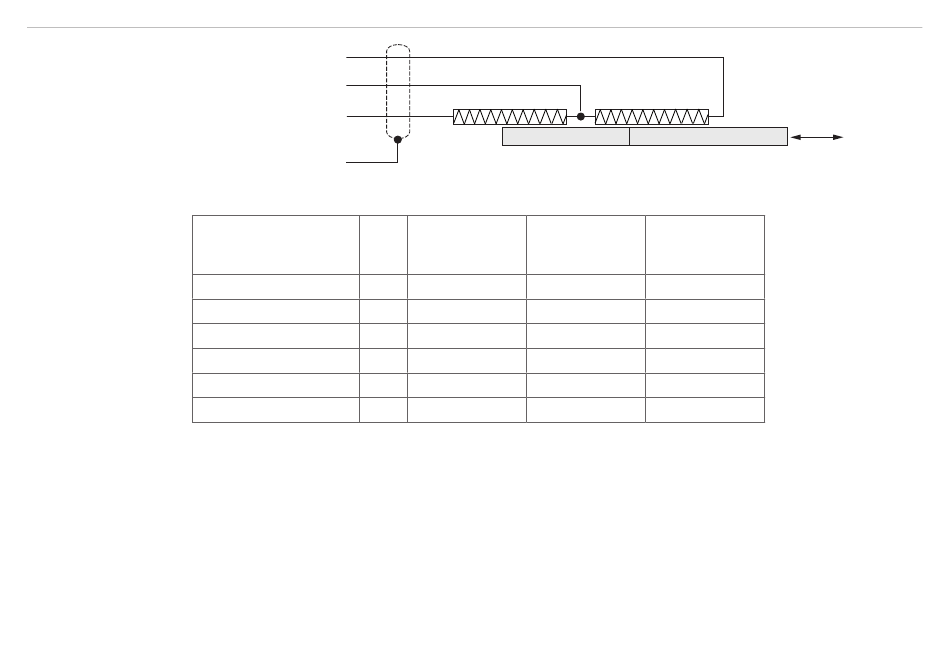

Fig. 18 Pin assignment for the sensor at terminal block X2, half bridge
Terminal block X2
Shield (sensor cable)
Secondary center tap
Secondary +
Secondary -
Primary +
Primary -
Fig. 19 Table of the pin assignment for the sensor at terminal block X2, half bridge
The pin assignment for the terminal blocks can also be found in the graphic and the
1) The colors and pins listed refer to the sensors from MICRO-EPSILON & Co. KG.
induSENSOR DTD / MSC7xxx
Magnetic core
Pin Cable Connector
1
LDR-x-CA LDR-x-SA
LVP-25-20-x
1 - -
2 Green 4
3 White 1
4 Brown 3
5 - -
6 - -
Plunger
Sensor cable
1
C7210-x
-
Black
Brown
Blue
-
-
tables, see Fig. 20 ff.
Page 29
