Operation and Setting
6.2.2
6.2.2.1
i
6.2.2.2
Analog output

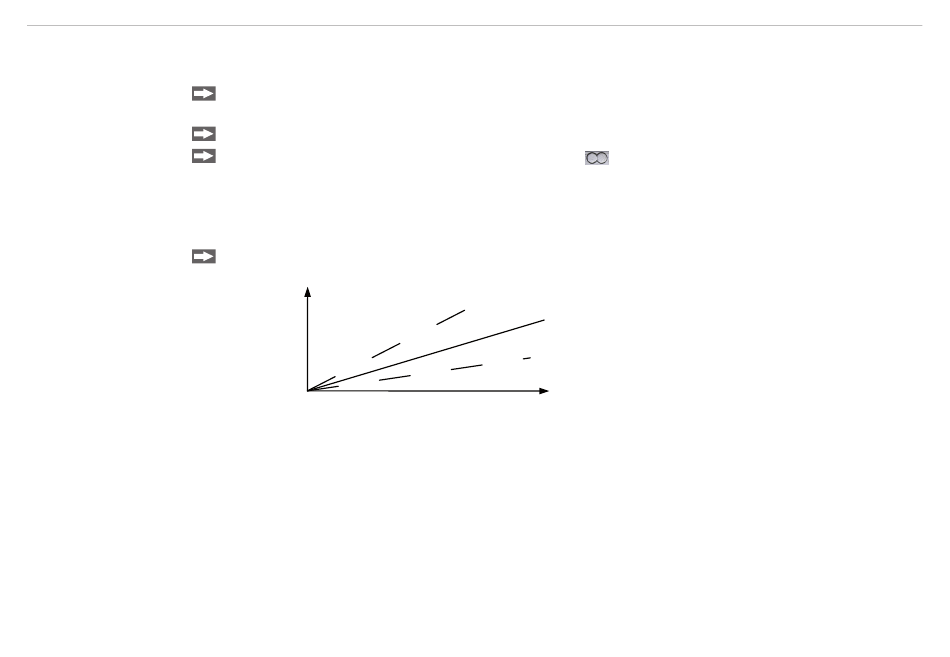

Fig. 19 Settings for transmitted light mode
optoCONTROL CLS-K

Adjustment of the Sensibility

Settings for Reflex Operation

Turn the potentiometer P1 (sensitivity) clockwise, until the LED changes from green to red (max.
15 turns), see Fig. 18.
Add one turn for the function reserve.
In the case of a large scanning range set S1 switch to
The analog signal can be used for finding the optimal setting.

Settings for Transmitted Light Mode

Adjust the range analogously in the case of adjusted and free light path, see Chap. 6.2.2.1.
Far.
Light quantity on the receiver
Page 27
