Installation and Assembly
4.6
The MSC7602 is designed for multi-channel operation. Therefore, power supply and RS485 must therefore
be applied only to one controller and can then be transmitted to the adjacent controller via a DIN rail bus
connector on the rear side.
The Sync signal is only available on the DIN rail bus connector and executed in series, i.e., it is not dai-
sy-chained in the bus connector.
All of the connections for the power supply/sensors/signal output are on the
Connections:
Screw terminal connection; AWG 16 up to AWG 24; up to AWG 28 with ferrule

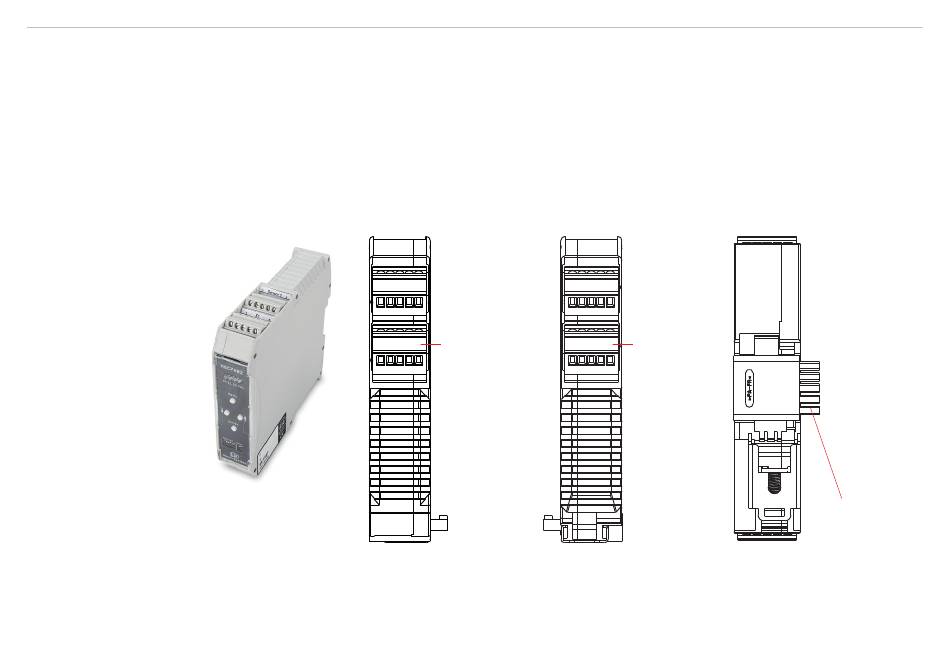

Fig. 36 View MSC7602
induSENSOR DTD / MSC7xxx
Power Supply, Sensor and Signal Output
X1
X2-2
Fig. 37 Upper view,
MSC7602
MSC7602
X3
Connection
for
X2-1
sensor 2
Fig. 38 Lower view,
MSC7602
controller, see Fig. 36
Connection
for
sensor 1
Fig. 39 View rear side,
MSC7602 inclusive
DIN rail bus connector
ff.
Din rail
bus connector
Page 41
