Installation and Assembly
Power and signal connection:
Cable gland WS19
Clamping range 4.5 mm ... 10 mm

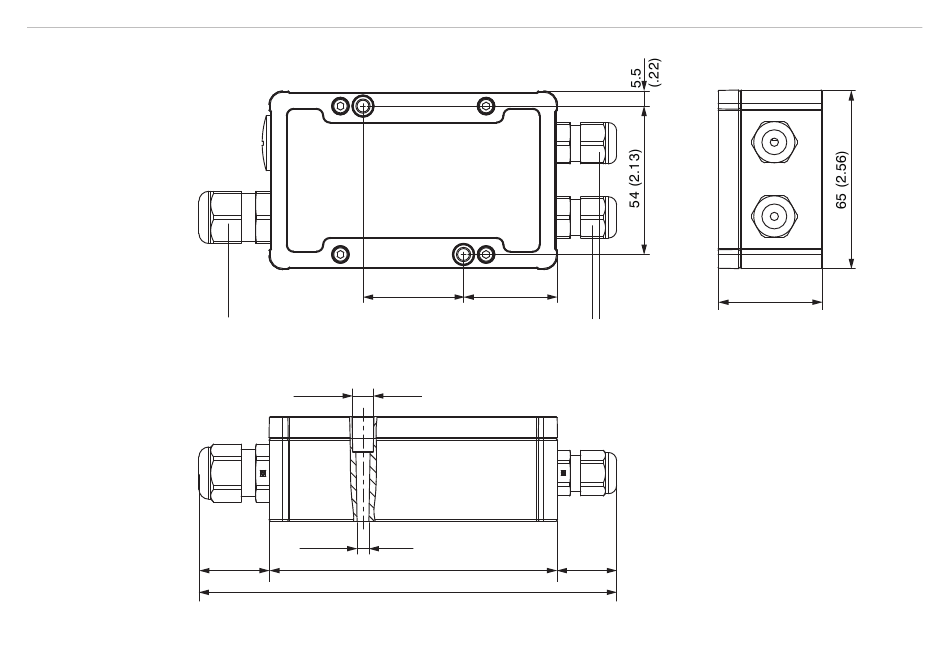

Fig. 6 Dimensional drawing of MSC7802 controller, dimensions in mm (inches)
induSENSOR DTD / MSC7xxx
36.6
(1.44)
Ø7.5
(.29 dia.)
Ø4.3
(.17 dia.) 105 (4.13)
25.5
(1)
152 (5.98)
34.2
(1.35)
Sensor connections:
Cable gland WS15
Clamping range 1 mm ... 5 mm
21.5
(.85)
38
(1.50)
