Installation and Assembly
Installation with ferrite
To stabilize the output signal against EMC interference, the sensor cables can be guided through a fastening
clip with a sleeve-shaped ferrite (both included in
This ferrite must be mounted as close as possible to the input terminals.

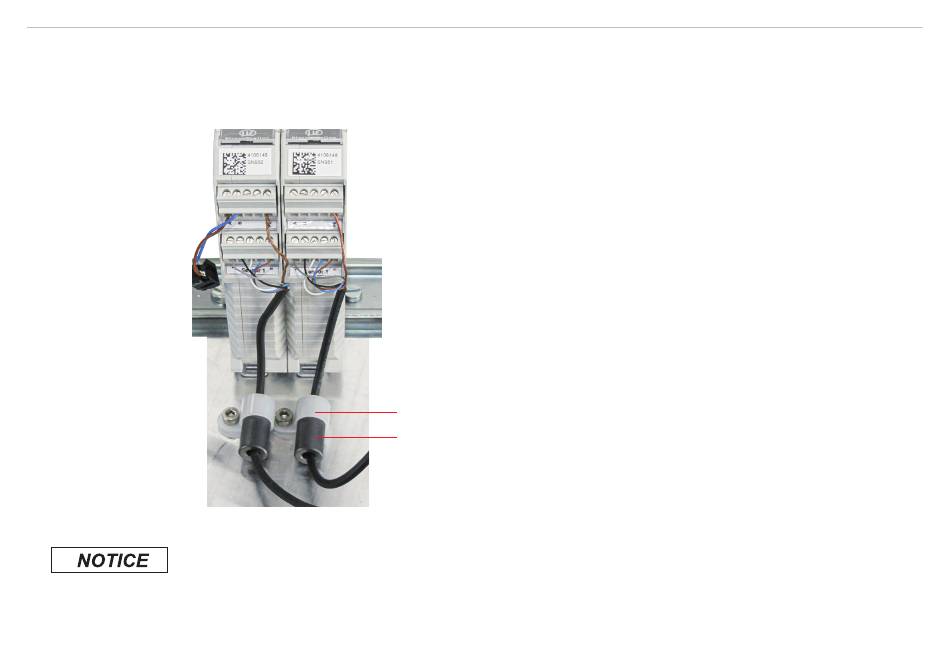

Fig. 11 Installation example of induSENSOR MSC7602 with ferrite
Avoid applying force on the terminals and the sensor cables.
> Damage to the sensor cables and/or the controller
induSENSOR DTD / MSC7xxx
delivery), see
Fastening clips
Ferrite
3.1.
Page 25
