MICRO-EPSILON induSENSOR DTD Operating Instructions Manual page 22

Installation and Assembly
Power and signal connection:
M12x1 plug; 5-pole

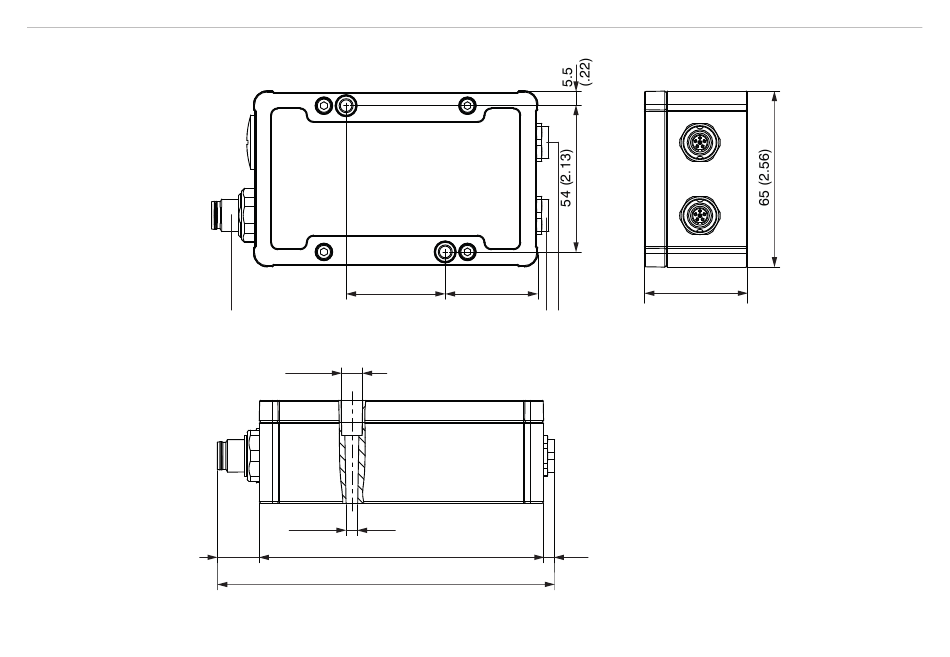

Fig. 7 Dimensional drawing of MSC7802(010) controller, dimensions in mm (inches)
induSENSOR DTD / MSC7xxx
36.6
(1.44)
Ø7.5
(.29 dia.)
Ø4.3
(.17 dia.)
15.5 105 (4.13)
(.61)
124.6 (4.90)
34.2
(1.35)
Sensor connections:
M9 5-pole socket
Series 712 (Binder)
4.1
(.16)
38
(1.50)
