Digital Interface - MICRO-EPSILON induSENSOR DTD Operating Instructions Manual

Installation and Assembly
Pin assignment of supply and
analog output
Assignment
Analog output for channel 2
Analog output for channel 1
Supply voltage
GND supply/signal ground
-
Shield (housing)

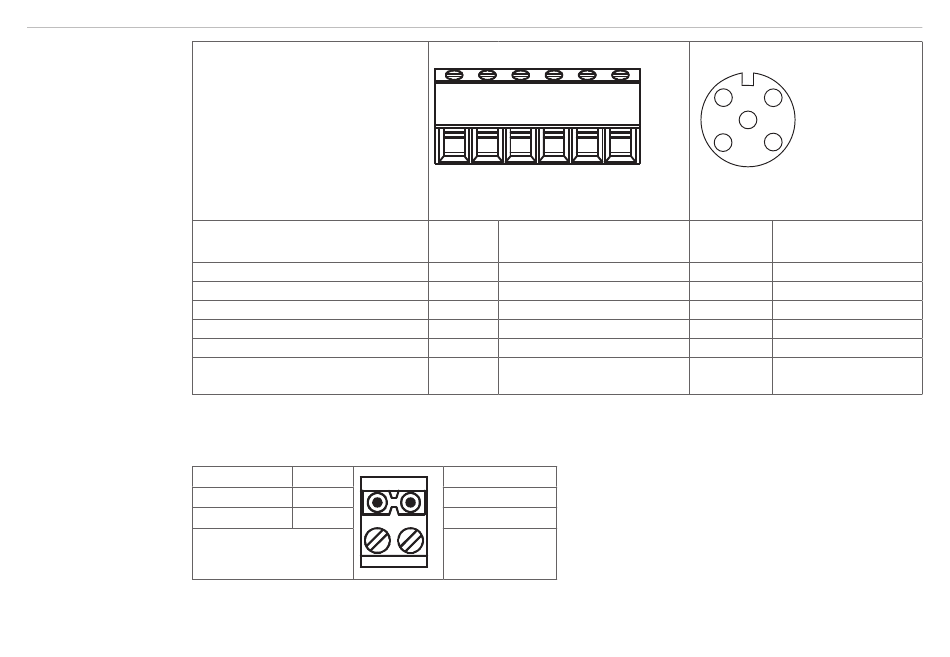

Fig. 32 Table for pin assignment of supply and analog output
4.5.2
Assignment
RS485 A
RS485 B
Fig. 33 Table for pin assignment of digital interface RS485
induSENSOR DTD / MSC7xxx

Digital Interface

Pin X3
X3
1
2
1 2
Variant with cable gland
X1
1 2 3 4 5
Pin X1 Color
(cable: PC7400-6/4)
1 Green
2 Yellow
3 White
4 Brown
5 -
6 Cable shield
i
Color (IF7001) Use the IF7001 single-channel USB/RS485
converter for MSC7xxx available as an optonal
Brown
accessory, see A
White
Do not apply the IF7001 shield!
Connector variant
2
1
6
5
3 4
5-pin M12x1
(A-coded); view on pin side
5-pin Color
(cable: PC5/5-IWT)
2 White
4 Black
1 Brown
3 Blue
5 Gray
- Cable shield guided
over connector
