Operation
5.2

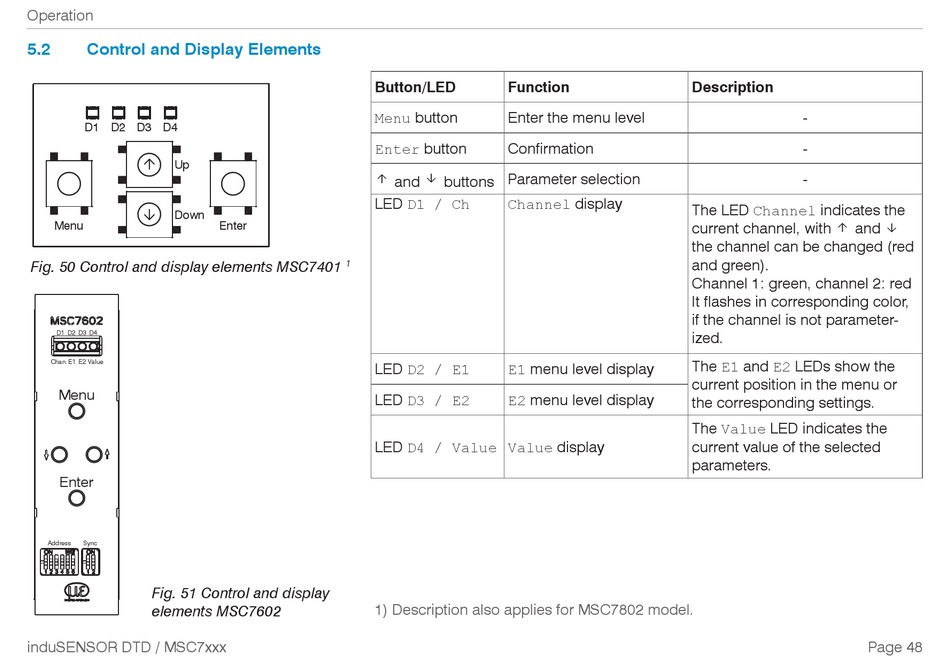

Control and Display Elements

D1 D2 D3 D4
Up
Down
Menu
Fig. 50 Control and display elements MSC7401
D1 D2 D3 D4
Chan. E1 E2 Value
Menu
Enter
Address Sync
Fig. 51 Control and display
elements MSC7602
induSENSOR DTD / MSC7xxx
Button/LED
Menu button
Enter button

and
LED D1 / Ch
Enter
1
LED D2 / E1
LED D3 / E2
LED D4 / Value Value display
1) Description also applies for MSC7802 model.
Function
Enter the menu level
Confirmation
buttons Parameter selection

Channel display
E1 menu level display
E2 menu level display
Description
-
-
-
The LED Channel indicates the
current channel, with and

the channel can be changed (red
and green).
Channel 1: green, channel 2: red
It flashes in corresponding color,
if the channel is not parameter-
ized.
The E1 and E2 LEDs show the
current position in the menu or
the corresponding settings.
The Value LED indicates the
current value of the selected
parameters.
