MICRO-EPSILON optoNCDT 1700 Assembly Instructions

Proper Environment
- Protection class: IP 65 (only with sensor cable connected)
Lenses are excluded from protection class. Contamination of the lenses leads to impairment or
failure of the function.
- Operating temperature: 0 ... 50 °C (+32 up to +122 °F)
- Storage temperature: -20 ... 70 °C (-4 up to +158 °F)
- Humidity: 5 - 95 % (no condensation)
- Ambient pressure: Atmospheric pressure
Dimensional Drawing and Free Space,
Sensor Mounting
Measuring Ranges 2/10/20/50/100/200/250VT mm
The sensors of the series
Measuring Ranges 20/200BL optoNCDT 1700 are optical sen-
sors with which is measured in
the μm area.
i
Make sure that mounting
and operation is handled
24.2 36.1 carefully!
(.95) (1.42)
Mount the sensors with
Mounting holes three screws type M4. The
3 x ø4.5 (.18 dia.) bearing surfaces surround-
ing the fastening holes
(through holes) are slightly
raised.
A
B
ø 4 ø 8
13.4 (.53)
(dia .16)
15 (.31 dia)
80 (3.15) 
(.59)
89 (3.50)
97 (3.82)

MR SMR a
2 24 35.0 ° 44.8 ° 25.8 16.8
10 30 34.3 ° 35.6 ° 28.7 20.5
20 40 28.8 ° 26.7 ° 30.1 22.0
50 45 26.5 ° 18.3 ° 31.5 22.5
100 70 19.0 ° 10.9 ° 32.6 24.1
Dimensions in mm (inches), not to scale
200 70 19.0 ° 7.0 °
MR = Measuring range
250VT 70 19.0 ° 6.0 °
SMR = Start of measuring range
20BL 40 28.8 ° 26.7 ° 30.1 22.0
MMR = Midrange
200BL 100 13.5 ° 6.3 °
EMR = End of measuring range
Membrane Keys, LED's
Measurement mode (normal operation):
- zero key:
ƒ Sets the analog output to the value for the midrange, i.e. 5 VDC or
12 mA.
ƒ Pressing the zero key again resets the function.
- function key:
ƒ Switches the sensor to setup mode.
Pressing and holding the function/enter key for longer than 5 se-
conds, overwrites all the parameter values with the factory settings (default
values).
Setup mode (function key actuated):
- function key:
ƒ For running through the levels and parameters.
- select key:
ƒ To open the selection list and
ƒ select the value of the parameter in sequence.
- enter key:
ƒ For saving the selected parameter value and
ƒ returning to measurement mode.
If approximately 15 seconds have elapsed since the last press of the function key or
30 seconds since the last press of the select key, the sensor returns to measurement mode
without changing the parameters.
LED Status Measurement mode
Object is in the measurement
illuminated
range or error
off Sensor off or laser off
state
flashes slowly ...
flashes quickly ...
illuminated or Indication of the parameter values
output
flashing level 1
speed
avg
flashing red
e A B
illuminated Sensor „master" or „set to mid-point"
zero off Normal operation
flashing Sensor as slave without synchronous signal
In case of bore holes, blind holes and
edges in the surface of moving targets
the sensor must be arranged in such a
way that the edges do not obscure the
Correct
33.1 24.1
laser spot.
33.5 24.1
33.1 24.1
Inputs and Outputs
Pin Designation Comment
5 +U Power supply (11 ... 30 VDC)
B
System ground for power supply and
6 GND switching signals (Laser on/off, Zero,
Limits)
Current 4 ... 20 mA or
13 Analog output
voltage 0 ... 10 V
14 AGND Reference potential for analog output
9 Laser on/off Switching input laser on /off
10 Zero Switching input setting mid-point
8 Switching output 1 Error or limit output
7 Switching output 2 Limit output
3 Sync + 1 Symmetrical synchron output
4 Sync - (Master) or input (Slave)
1
1 Tx +
RS422 - output (symmetrical)
2 Tx -
12 Rx +
RS422 - input (symmetrical)
11 Rx -
1) Used as trigger inputs in mode „Triggering".
Plug connector: ODU MINI-SNAP , 14-pin, series B, dimension 2,
Setup mode
code 0, IP 68; www.odu.de
View on solder-pin side male cable connector, insulator
...
Selected parameter value matches the
Power Supply, nominal value: 24 VDC (11 ... 30 V, max. 150 mA).
saved value
Selected parameter value does not 5 Sensor
11 ...
match the saved value pin
30 VDC
ILD 1700
5
Selected parameter value
6
6
Status „off"
Switching Inputs Laser On/Off, Setting Masters and Mid-point
U  0.2 V
L
I  0.5 mA
L
9 (10)
Incorrect
(shadow)
U
L
6
N-channel Relais/ Open-
switch Collector
Sensor cable
PC1700-x
red
black
Coaxial inner conductor, white
Coaxial screening
red-blue
white-green
gray-pink
violet
blue
Proper Use
pink

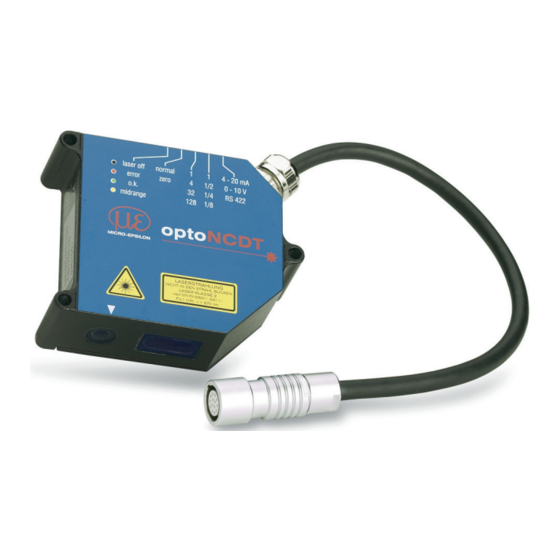

green The optoNCDT1700 is designed for use in industrial areas. It is used for measuring displacement,
brown distance, position and elongation for in-process quality control and dimensional testing.
gray
The sensor may only be operated within the limits specified in the technical data, see instruction
yellow
manual, Chap. 3.4. The sensor should only be used in such a way that in case of malfunctions or
failure personnel or machinery are not endangered. Additional precautions for safety and damage
prevention must be taken for safety-related applications.
1 10
2 9
11 Warnings
3 12 14 8
Connect the power supply in accordance to the safety regulations for electrical equipment. The
13
4 7
power supply may not exceed the specified limits.
5 6
> Danger of injury, damage to or destruction of the sensor
Avoid continuous exposure to spray on the sensor. Avoid exposure to aggressive materials (washing
agent, penetrating liquids or similar) on the sensor. Mount the sensor only to the existing holes on a
flat surface. Clamps of any kind are not permitted.
PC1700-x Power
> Damage to or destruction of the sensor
Use power supply only for measurement
color supply
devices. MICRO-EPSILON recommends
Avoid shock and vibration to the sensor. Protect sensor cable against damage.
red +U
the use of the optional available power
> Damage to or destruction of the system, failure of the measuring device
B
supply PS2020 for the sensor.
black GND
Laser Class
The optoNCDT1700 sensors operate with a semiconductor laser with a wavelength of 670 nm (visi-
ble/red, ILD 1700) respectively 405 nm (visible/blue, ILD 1700BL).
The switching inputs for laser on/off and
U
ILD 1700
int The following warning labels are attached to the cover (front and/or rear side) of the sensor housing:
setting masters/mid-point are similarly
wired. Connect pin 9 with pin 6 in order
to activate the laser. If the connection is
released, the laser is deactivated.
I
L
MICRO-EPSILON MESSTECHNIK
GmbH & Co. KG
Königbacher Str. 15 · 94496 Ortenburg
www.micro-epsilon.com
*X9771139-A06*
X9771139-A071037MSC
Assembly Instructions
optoNCDT 1700
ILD 1700-2/10/20/50/100/200/250VT
ILD1700-2/10/20/50LL
ILD 1700-20/200BL
LASER RADIATION LASER RADIATION
Do not stare into the beam Do not stare into the beam
CLASS 2 LASER PRODUCT CLASS 2 LASER PRODUCT
IEC 60825-1: 2015-07 IEC 60825-1: 2015-07
P≤1 mW; λ= 670 nm P≤1 mW; λ= 405 nm
IEC label Only for USA IEC label for ILD1700-x BL only
Never deliberately look into the laser beam! Consciously close your eyes or
turn away immediately if ever the laser beam should hit your eyes.
