Installation and Assembly
4.6.1
Assignment
Supply voltage +24 V
GND supply/signal ground
Output signal 1
Output signal 2
Cable shield sensor 2
(direct connection to DIN rail)

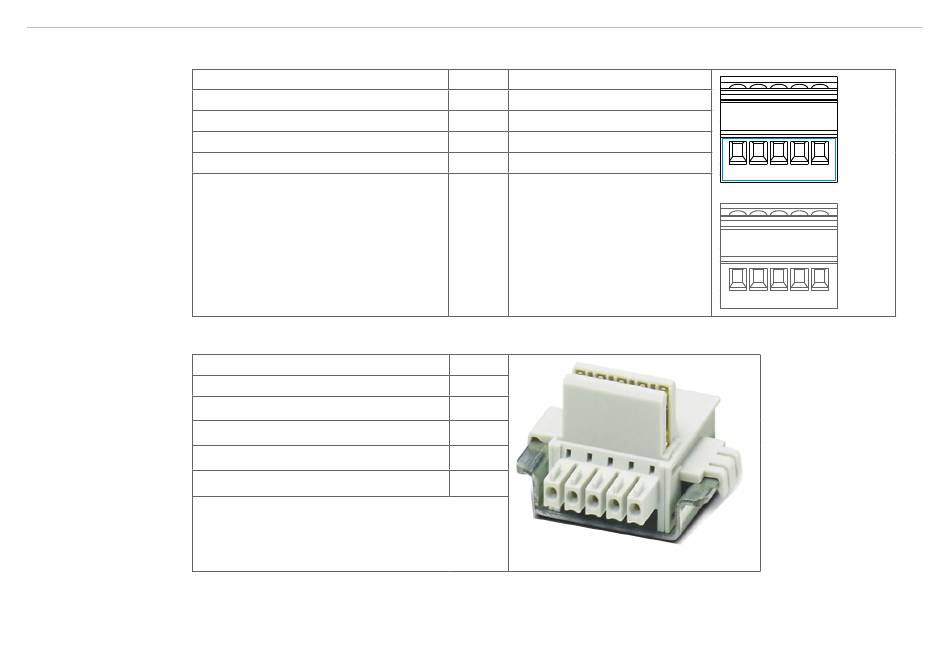

Fig. 40 Table for pin assignment of supply and analog output
Assignment
Supply voltage +24 V
Ground 0 V
RS485 A
RS485 B
Sync-signal
ME22,5 TBUS 1,5/4P1S KMGY
(Phoenix: 2201732)
Suitable mating plug: MCVR 1.5/5-ST-3.81
(Phoenix: 1827156)
Fig. 41 Table for pin assignment of DIN rail bus connector
induSENSOR DTD / MSC7xxx

Power Supply and Signal

Pin X1 Color (cable: PC7400-6/4)
1 White
2 Brown
3 Yellow
4 Green
5 -
Pin
1
2
3
4
5
1 2
3 4 5
X1
5 4 3 2 1
X2-2
5 4 3 2 1
Page 42
