3.2
Mechanical Dimensions
Top View
5
Side View
10
Dimensions: mm
12.90
34.93
55.92
77.62
116.87
132.35
147.86
169.80
183.72
197.72

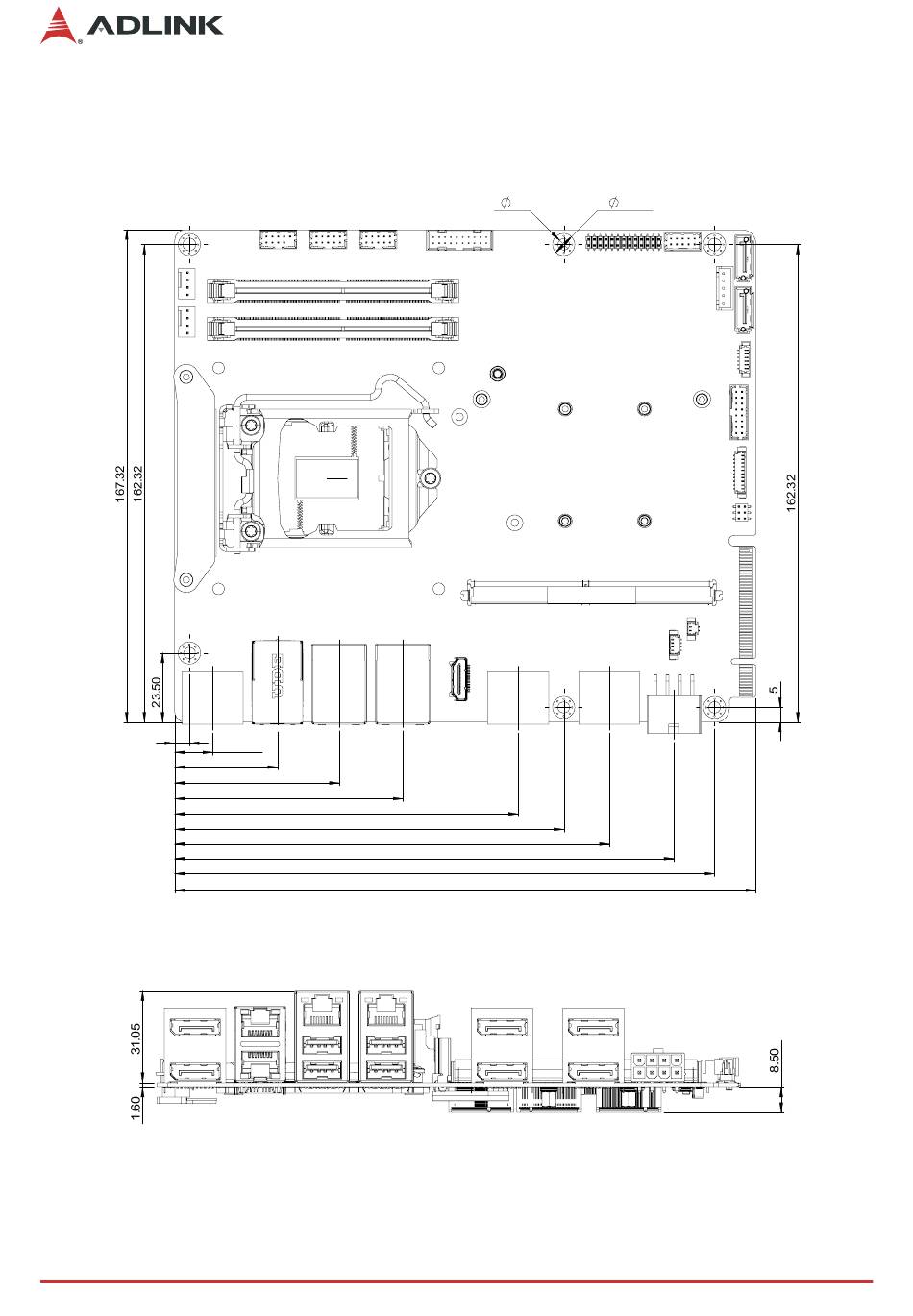

Figure 5: Mechanical Dimensions - Top View
4
7.60
Mechanical Layout
