Express-ID7 User's Guide

8. Mechanical and Thermal

8.1. Module Dimensions

Page 57
All dimensions are shown in millimeters. Tolerances should be
± 0.25mm, unless otherwise noted.
The tolerances on the module connector locating peg holes
(dimensions [16.50, 6.00]&[16.50,18.00]) should be ± 0.10mm.
Dimensions: mm

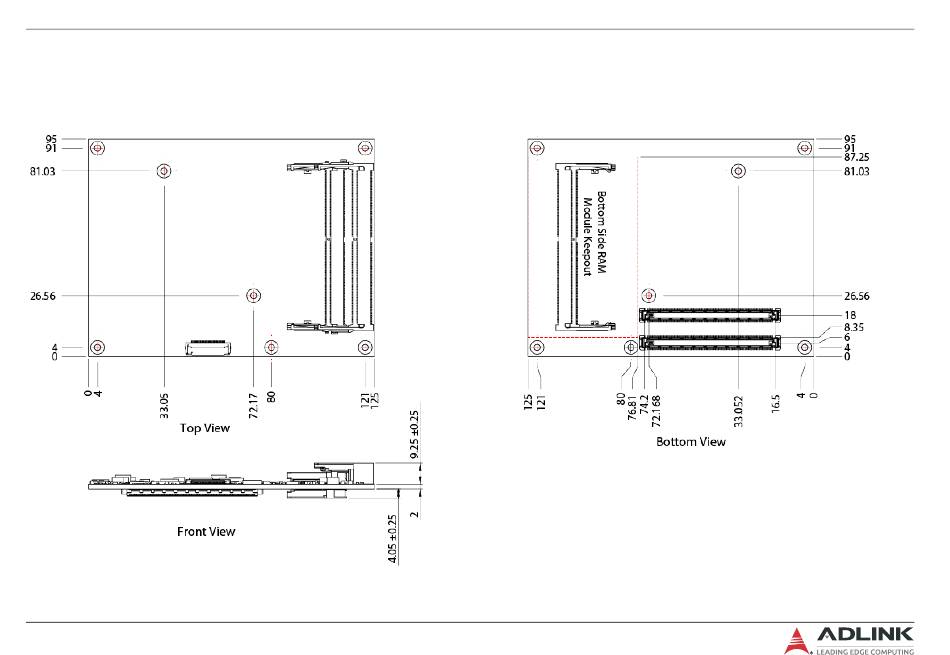

Figure 5 – Module mechanical dimensions
Copyright © 2022 ADLINK Technology, Inc.
PICMG COM.0 R3.1
