- Page 1 VPX3-TL Series SOSA-aligned Rugged 3U VPX Processor Blade ® ® with Intel Xeon W11865MRE User’s Manual Manual Rev.: Revision Date: October 19, 2023 Part No: 50M-31129-1010...
- Page 2 Revision History Revision Release Date Description of Change(s) 2023-07-05 Initial release 2023-10-19 Update storage specifications Revision History...
-
Page 3: Preface
VPX3-TL Preface Copyright © 2023 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Diox- ane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...
-
Page 5: Table Of Contents
VPX3-TL Table of Contents Revision History..............ii Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Overview................1 Features................2 Block Diagrams..............3 Model Number Decoder - Processor Blade ......4 Package Contents ............... 5 2 Specifications .............. - Page 6 3.13 GPIO Expander PCA9554 ..........15 3.14 UART NCT5104D .............. 15 3.15 TPM ................... 16 3.16 Embedded Controller ............16 3.17 XMC Site................16 4 VPX3-TL Board Interfaces..........17 VPX3-TL Board Layout ............17 VPX3-TL Mechanical Dimensions ........19 VPX3-TL Connector Pin Assignments ....... 20 Status LEDs ...............
-
Page 7: List Of Figures
VPX3-TL List of Figures Figure 1-1: VPX3-TL Functional Block Diagram ........ 3 Figure 4-1: VPX3-TL Top Side Layout ..........17 Figure 4-2: VPX3-TL Bottom Side Layout........17 Figure 4-3: VPX3-TL Conduction-Cooled Mechanical Dimensions . 19 Figure 4-4: VPX3-TL Front View ............26 Figure 5-1: VPX3-TL-RL1 RTM Functional Block Diagram.... - Page 8 This page intentionally left blank. viii List of Figures...
-
Page 9: List Of Tables
VPX3-TL List of Tables Table 1-1: VPX3-TL SKU Table............4 Table 2-1: VPX3-TL Blade Specifications......... 7 Table 2-2: VPX3-TL-RL1 RTM Specifications ........9 Table 4-1: VPX3-TL Board Layout Legend........18 Table 5-1: VPX3-TL-RL1 RTM Board Layout Legend ....29 List of Tables... - Page 10 This page intentionally left blank. List of Tables...
-
Page 11: Introduction

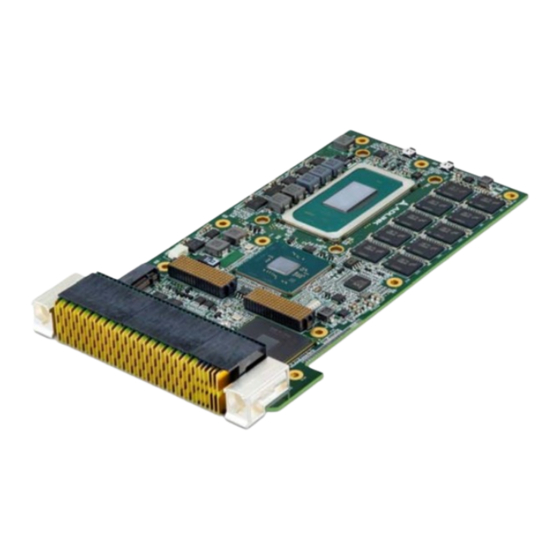

VPX3-TL Introduction 1.1 Overview The VPX3-TL Series is a 3U VPX processor blade based on the Intel® Xeon® W11865MRE Processor (formerly "Tiger Lake-H"), supporting up to 64GB DDR4-2666 soldered ECC memory, 2x 10GBASE-KR or 2x 1GBASE-KX, one XMC expansion slot with PCIe x8 Gen3 to P1 &... -
Page 12: Features
1.2 Features Intel® Xeon® W11865MRE Processor (formerly “Tiger Lake-H”); up to 8 cores with 45 watt TDP SOSA-aligned and VITA 46/47/48/65 compliant for quick deployment 32GB DDR4-2666 soldered ECC SDRAM (roadmap to 64GB) Supports NVMe and SATA SSD up to 1TB (by BOM option) One XMC expansion slot with PCIe x8 Gen3 Ethernet connectivity: 1x 2.5GBASE-T to P2;... -
Page 13: Block Diagrams
VPX3-TL 1.3 Block Diagrams DDR4 Ch A DDR4 3200 16GB Max w ECC Intel® Xeon® DDR4 Ch B DDR4 3200 16GB Max w ECC DisplayPort W 11000E TCP0 X16s PCIe x4 Gen3 X12d PCIE16 [0:7] PCIe x4 Gen3 PCIE16 [8:11] PCIe x4 Gen3 PCIE16 [12:15] DMI[0:7]... -
Page 14: Model Number Decoder - Processor Blade
Model Number Decoder - Processor Blade VPX3-TL/W11865MRE/M32/XMC1.0-R2 (A) CPU Code W11865MRE = Intel® Xeon® W11865MRE Processor, 8 cores, 45W TDP (B) Memory Size Code M32 = 32GB DDR4-2666 ECC soldered SDRAM (C) PCI Express interface code XMC1.0 = XMC 1.0 interface, 2x PCIe x4 Gen3 to P1 XMC2.0 = XMC 2.0 interface, 2x PCIe x4 Gen3 to P1 P16 = 2x PCIe x4 Gen3 to P1 + 2x PCIe x4 Gen3 to P1 (D) Ruggedized Level Code... -
Page 15: Package Contents
VPX3-TL 1.5 Package Contents The VPX3-TL is packaged with the following components. If any of the items on the contents list are missing or damaged, retain the shipping carton and packing material and contact the dealer for inspection. Please obtain authorization before returning any prod- uct to ADLINK. - Page 16 This page intentionally left blank. Introduction...
-
Page 17: Specifications
VPX3-TL Specifications 2.1 VPX3-TL Blade Specifications VITA • VITA 46, 47, 48, 65 compliant Standards • SOSA aligned Module Profile • MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-2 Slot Profile • SLT3-PAY-1F1F2U1TU1T1U1T- 14.2.16 Processor • Intel® Xeon® W11865MRE, up to 8 cores, 45W TDP Chipset • Intel® RM590E Chipset Memory •... - Page 18 Serial COM1: • 2-wire TX/RX on P1 supporting TIA-232 & LVCOMS (3.3V) mode selected by BIOS option COM2: • 1x RS-232/422/485 to P2 (RS232, 2-wire) • Max. data rate for RS232/422/485 is 115200bps • RS485 mode supports auto flow control •...
-
Page 19: Vpx3-Tl-Rl1 Rtm Specifications
VPX3-TL 2.2 VPX3-TL-RL1 RTM Specifications Ethernet • 2x 10GBASE-KR via RP1 • 1x 2.5GBASE-T via RP1 Graphics • 1x DisplayPort signal via RP1 SATA • 1x SATA 6Gb/s via RP1 (7-pin vertical SATA connector) • 1x USB 3.0 (backwards compatible) via RP1 Serial •... -
Page 20: Power Consumption
2.3 Power Consumption This section provides information on the power consumption of the VPX3-TL when using the Intel® Xeon® W-11865MRE processor with Dual Channel 16GB DDR4-2666 soldered memory. The VPX3-TL is powered by 12V. Windows 10 idle mode power con- sumption was measured running BurnInTest at 100% loading. -
Page 21: Functional Description
VPX3-TL Functional Description The following sections describe the VPX3-TL features and functions. 3.1 Processors The Intel® Xeon® W-11865MRE is a 64-bit, multi-core processor built on 14-nanometer process technology. The processor is designed for a two-chip platform consisting of a processor and chipset. - Page 22 Supported Technologies Intel® Virtualization Technology for Directed I/O (Intel® VT-d) Intel® Virtualization Technology (Intel® VT-x) Intel® VT-x with Extended Page Tables (EPT) Intel® Hyper-Threading Technology Intel® Turbo Boost Technology Intel® Speed Shift Technology Thermal Monitoring Technologies Interfaces Dual channel DDR4 memory with two channel of soldered SDRAM Memory DDR4 data transfer rates of 3200 MT/s 64-bit wide channels plus 8-bits of ECC support for each...
-
Page 23: Intel® Turbo Boost Technology
VPX3-TL 3.2 Intel® Turbo Boost Technology Intel Turbo Boost Technology is a feature that allows the processor to opportunistically and automatically run faster than its rated operating core and/or render clock frequency when there is suffi- cient power headroom, and the product is within specified temper- ature and current limits. -
Page 24: Usb
3.4 USB The VPX3-TL provides one USB 3.2 Gen1 port to the P2 connec- tor supporting data transfers up to 5Gb/s, and one USB 2.0 port to the P2 connector supporting data transfers up to 480 Mb/s. 3.5 SPI BIOS The VPX3-TL implements a dual BIOS feature. -
Page 25: Intel ® Gigibit Ethernet Controller I225-It
VPX3-TL 3.10 Intel ® Gigibit Ethernet Controller I225-IT The VPX3-TL has one 2.5GBASE-T LAN interface for network access. The Intel® 2.5 Gigabit Ethernet Controller I225 is a sin- gle-port, compact, low power Gigabit Ethernet (GbE) controller. It is a fully-integrated GbE Media Access Control (MAC) and Physi- cal Layer (PHY) device, offering 10/100/1000/2500 Mb/s data rates. -
Page 26: Tpm
3.17 XMC Site The VPX3-TL Series supports one XMC site for rear I/O expan- sion. The XMC site provides a x8 PCI Express Gen 3.0 lane. Jn2 rear XMC I/O connector is compliant to VITA 46.9, X8d+X12d+X16S. -
Page 27: Vpx3-Tl Board Interfaces
VPX3-TL VPX3-TL Board Interfaces This chapter illustrates the board layout, connector pin assign- ments, and jumper settings to familiarize users with the VPX3-TL. 4.1 VPX3-TL Board Layout Figure 4-1: VPX3-TL Top Side Layout Figure 4-2: VPX3-TL Bottom Side Layout VPX3-TL Board Interfaces... -
Page 28: Table 4-1: Vpx3-Tl Board Layout Legend
XMC Connector CPU (W-11865MRE) (X8d+X12d+X16s) Chipset (PCH RM590E) M.2 Connector (M Key) DDR4 ECC Memory Embedded Controller (IT5121) Ethernet Controller (FTX710-BM2) Super IO (NCT5104D) IPMC LAN Transformer XMC Primary Connector Ethernet Controller (I215IT) Table 4-1: VPX3-TL Board Layout Legend VPX3-TL Board Interfaces... -
Page 29: Vpx3-Tl Mechanical Dimensions
VPX3-TL 4.2 VPX3-TL Mechanical Dimensions Conduction-Cooled Version Dimensions in mm Figure 4-3: VPX3-TL Conduction-Cooled Mechanical Dimensions VPX3-TL Board Interfaces... -
Page 30: Vpx3-Tl Connector Pin Assignments
4.3 VPX3-TL Connector Pin Assignments XMC Connectors JN15 Connector Pin Definition (Primary) PET0p0 PET0n0 3.3V PET0p1 PET0n1 VPWR TRST# RESET# PET0p2 PET0n2 3.3V PET0p3 PET0n3 VPWR PULL UP PET0p4 PET0n4 3.3V PET0p5 PET0n5 VPWR 12V_AUX PET0p6 PET0n6 3.3V PET0p7 PET0n7 VPWR -12V_AUX VPWR... - Page 31 VPX3-TL J16 Connector Pin Definition (X8d+X12d+X16s) XMC_A1+ XMC_B1- XMC_D1+ XMC_E1- XMC_A3+ XMC_B3- XMC_D3+ XMC_E3- XMC_A5+ XMC_B5- XMC_D5+ XMC_E5- XMC_A7+ XMC_B7- XMC_D7+ XMC_E7- XMC_A9+ XMC_B9- XMC_D9+ XMC_E9- XMC_A11+ XMC_B11- XMC_D11+ XMC_E11- XMC_C12 XMC_F12 XMC_A13+ XMC_B13- XMC_C13 XMC_D13+ XMC_E13- XMC_F13 XMC_C14 XMC_F14 XMC_A15+ XMC_B15- XMC_C15...
- Page 32 Signal Signal PCH_PCIE19_TX_C_P PCH_PCIE18_RX_R_N PCH_PCIE18_RX_R_P PCH_PCIE18_TX_C_N PCH_PCIE18_TX_C_P DEVSLP_M2_CON_R PCH_PCIE17_SATA4_RX_R_P PCH_PCIE17_SATA4_RX_R_N PCH_PCIE17_SATA4_TX_C_N PCH_PCIE17_SATA4_TX_C_P M2_RST-L CLK_REQ_M2_R-L C_PCIECLK2_100M_N C_PCIECLK2_100M_P M2TYPE_PEDET P3V3 P3V3 P3V3 VPX3-TL Board Interfaces...
- Page 33 VPX3-TL VPX Connectors P0 Connector +12V (VS1) +12V (VS1) +12V (VS1) NC (VS2) NC (VS2) NC (VS2) +12V (VS1) +12V (VS1) +12V (VS1) NC (VS2) NC (VS2) NC (VS2) NC (VS3) NC (VS3) NC (VS3) NC (VS3) NC (VS3) NC (VS3) IPM1_CLK IPM1_DAT SYSRESET#...
- Page 34 P1 Connector GDiscrete1# PCIE1_TX0- PCIE1_TX0+ PCIE1_RX0- PCIE1_RX0+ PCIE1_TX1- PCIE1_TX1+ PCIE1_RX1- PCIE1_RX1+ P1_VBAT PCIE1_TX2- PCIE1_TX2+ PCIE1_RX2- PCIE1_RX2+ PCIE1_TX3- PCIE1_TX3+ PCIE1_RX3- PCIE1_RX3+ SYSCON# PCIE2_TX0- PCIE2_TX0+ PCIE2_RX0- PCIE2_RX0+ PCIE2_TX1- PCIE2_TX1+ PCIE2_RX1- PCIE2_RX1+ +5V_USB1 PCIE2_TX2- PCIE2_TX2+ PCIE2_RX2- PCIE2_RX2+ (for USB3.0) PCIE2_TX3- PCIE2_TX3+ PCIE2_RX3- PCIE2_RX3+ COM1_TX J16-A5 J16-B5...
- Page 35 VPX3-TL P2 Connector SER_TX1-/ DP_L1- DP_L1+ DP_L0- DP_L0+ DATA1-/TX1 DP_L3- DP_L3+ DP_L2- DP_L2+ SER_TX1+/ DP_PWR DP_HPD DP_AUX- DP_AUX+ DATA1+/TX2 USB2.0_2_D- USB2.0_2_D+ USB2.0_1_D- USB2.0_1_D+ SER_RX1-/ USB3_TX- USB3_TX+ USB3_RX- USB3_RX+ SATA3_TX- SATA3_TX+ SATA3_RX- SATA3_RX+ SER_RX1+/ +5V_USB2 (for J16-C12/ J16-C13/ J16-F12/ J16-F13/ USB2) PCIE3_TX0- PCIE3_TX0+ PCIE3_RX0-...
-
Page 36: Status Leds
4.4 Status LEDs IPMC WDT LED Power-up Reset Button SATA LED Button Power LED COM1 LVCOMS/RS232 Status EC Status LED Figure 4-4: VPX3-TL Front View Reset Button Press this button to perform a hard system reset. Power-up Button Press this button to power-up in ATX mode. LEDs Description Indication... -
Page 37: Vpx3-Tl-Rl1 Rtm
VPX3-TL VPX3-TL-RL1 RTM This chapter illustrates the board layout, connector pin assign- ments, and jumper settings to familiarize users with the VPX3-TL-RL1 RTM. 5.1 Connector Allocation Function Rear Connector Type 4 lanes DDI to Mini DisplayPort — DisplayPort 4 lanes MDI to 2.5GBASE-T MDI —... -
Page 38: Vpx3-Tl-Rl1 Block Diagram
5.2 VPX3-TL-RL1 Block Diagram Vs1 (12V), 8A Vs2 (3.3V), 8A Vs3 (5V), 8=16A SM [0:1] IPM2, SM [2:3] I2C NVMRO, SYSRESET# VBAT JTAG COM Port COM (2x RS232 or 1x RS422 or 1x RS485) DP Port 1x DDI (1.4) USB 2.0 1x USB 2.0 Port USB 3.0... -
Page 39: Vpx3-Tl-Rl1 Rtm Board Layout
VPX3-TL 5.3 VPX3-TL-RL1 RTM Board Layout Figure 5-2: VPX3-TL-RL1 RTM Board Layout LAN Port COM Port USB 2.0 Port VPX GPIO Test Jumper USB 3.0 + USB 2.0 Combo Port SATA Port Mini DP Port IPMB SMBus Switch Maintenance Port (MGMT) RTM L2 B2B Connector (reserved) VPX Utility Test Jumper... -
Page 40: Vpx3-Tl-Rl1 Rtm Connector Pin Assignments
5.4 VPX3-TL-RL1 RTM Connector Pin Assignments Rear I/O Connectors Mini DisplayPort Connector Signal Signal DP1_TXN1_CN DP_CN_HPD DP1_TXN3_CN DP1_TXP0_CN DP1_CFG1_CN DP1_TXN0_CN DP1_TXP2_CN DP1_CFG2_CN DP_AUX_C_P DP1_TXN2_CN DP_AUX_C_N DP1_TXP1_CN DP1_TXP3_CN P_+3V3_DP1_CN USB 3.0 Connectors Pin # Signal Name USB3.0_P5VA USB2_CMAN USB2_CMAP USB3A_CMRXN USB3A_CMRXP USB3A_CMTXN USB3A_CMTXP VPX3-TL-RL1 RTM... - Page 41 VPX3-TL USB 2.0 Connectors Pin # Signal Name UV0- UV0+ Serial Port (RJ-45) Pin # Signal MTN_TXD MTN_RXD System LAN Port (RJ-45) Pin # Signal MDIA_P MDIA_N MDIB_P MDIC_P MDIC_N MDIB_N MDID_P MDID_N VPX3-TL-RL1 RTM...
- Page 42 Onboard Connectors COM Port (COM1) Pin # Signal Pin # Signal COM1_RX_RX- COM2_TX_TX+ COM1_TX_TX- COM2_RX_RX+ JTAG Header Pin # Signal +3.3V TRST +3.3V SATA Connectors Pin # Signal VPX3-TL-RL1 RTM...
- Page 43 VPX3-TL IPMB Connector Pin # Signal IPMB_SDA IPMB_SCL VPX3-TL-RL1 RTM...
- Page 44 This page intentionally left blank. VPX3-TL-RL1 RTM...
-
Page 45: Getting Started
RTMs. Refer to previous sections for peripheral connectivity of all I/O ports on the RTM. When installing the VPX3-TL Series and related RTMs, make sure the RTM is the correct matching model. Getting Started... -
Page 46: Driver Installation
6.3 Driver Installation The VPX3-TL drivers are available from the ADLINK website at www.adlinktech.com/Products/VPX/VPX3UProcessorBlades/ VPX3-TL. ADLINK provides validated drivers for Windows 10 IoT Enterprise LTSC 21H2. We recommend using the drivers provided on the ADLINK website to ensure compatibility. Follow the steps below to install the drivers for Windows 10. 1. - Page 47 VPX3-TL 6. Install the Intel Trace Hub driver by extracting the con- tents of the Intel Trace Hub directory, and perform the following steps: a. In the Device Manager, right-click on "Unknown device" and click on “Update driver”. b. Click on "Browse my computer for driver software”. Getting Started...
- Page 48 c. Navigate to the "Intel Trace Hub" directory, click “OK” to search/install the driver. Click "Close" when done. 7. Install the Intel Network drivers by extracting the con- tents of the Intel network connections directory, and per- forming the following steps. a.
- Page 49 VPX3-TL b. Click on "Browse my computer for driver software”. c. Navigate to the "Intel Trace Hub" directory, click “OK” to search/install the driver. Click "Close" when done. Repeat for the other two "Ethernet Controller" under "Other devices" Getting Started...
- Page 50 d. The drivers for Intel Ethernet Controllers i225-IT and X710 are now successfully installed. Getting Started...
-
Page 51: Utilities
VPX3-TL Utilities 7.1 SEMA Hardware monitoring and Watchdog Timer functionality are pro- vided by ADLINK’s Smart Embedded Management Agent (SEMA), which operates via a Board Management Controller and communicates with the CPU through the SMBus. A graphical user interface program and command line interface are available to allow you to communicate with SEMA. - Page 52 This page intentionally left blank. Utilities...
-
Page 53: Bios Setup
VPX3-TL BIOS Setup The following chapter describes basic navigation for the AMIBIOS®8 BIOS setup utility. 8.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <... - Page 54 There is a hot key legend located in the right frame on most setup screens. NOTE: NOTE: →← Left/Right. The Left and Right < Arrow > keys allow you to select a setup screen. For example: Main screen, Advanced screen, Chipset screen, and so on. ↑↓...
-
Page 55: Setup Menus
VPX3-TL 8.2 Setup Menus Refer to the document VPX3-TL BIOS User's Manual for detailed BIOS setup menu information, available for download from the ADLINK website at www.adlinktech.com/Products/VPX/VPX3U ProcessorBlades/VPX3-TL. BIOS Setup... - Page 56 This page intentionally left blank. BIOS Setup...
-
Page 57: Important Safety Instructions
VPX3-TL Important Safety Instructions For user safety, please read and follow all instructions , WARNINGS , CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment. - Page 58 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...
-
Page 59: Getting Service
San Jose, CA 95119-1208, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-600-1189 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
