4.3

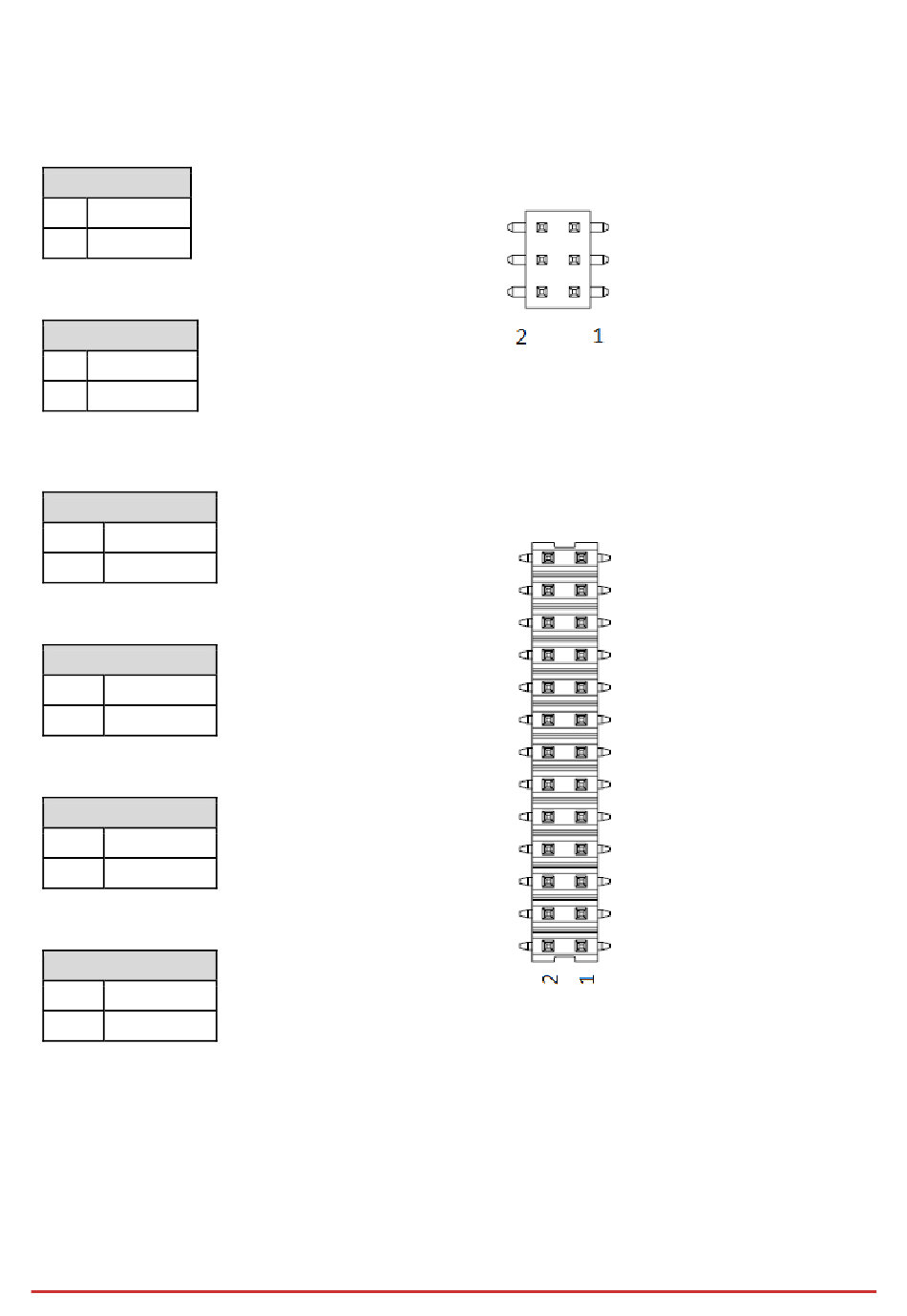

Jumper and Switch Settings

4.3.1 Panel Backlight Power 5V/12 Selection (CN13)
Panel Power
2-4 5V
4-6 12V (default)
4.3.2 Panel Resolution Selection (CN13)
Panel Resolution
1-3 8-bit (default)
3-5 6-bit
4.3.3 Case Open (CN6)
Case open
13-14 Function ON
N/A Undo (default)
4.3.4 ME Lock (CN6)
ME Lock
15-16 Lock
N/A Undo (default)
4.3.5 Clear CMOS (CN6)
Clear CMOS
17-18 Clear CMOS
N/A Undo (default)
4.3.6 BIOS WP (CN6)
BIOS WP
19-20 BIOS WP
N/A Undo (default)
Notes:
•
S3 and S4 not supported under operating system
•
IAMT not supported while pairing with Q370
•
BIOS menu ME version information shows "zero"
•
Do not install an operating system when BIOS WP is enabled
•
Intel GbE LAN cannot update MAC address
•
Special PN/process needed if default setting is Write Protect Enabled for shipment
Connector Pinouts
Multi-purpose Connector (CN6)
AMSTX-CF Series
