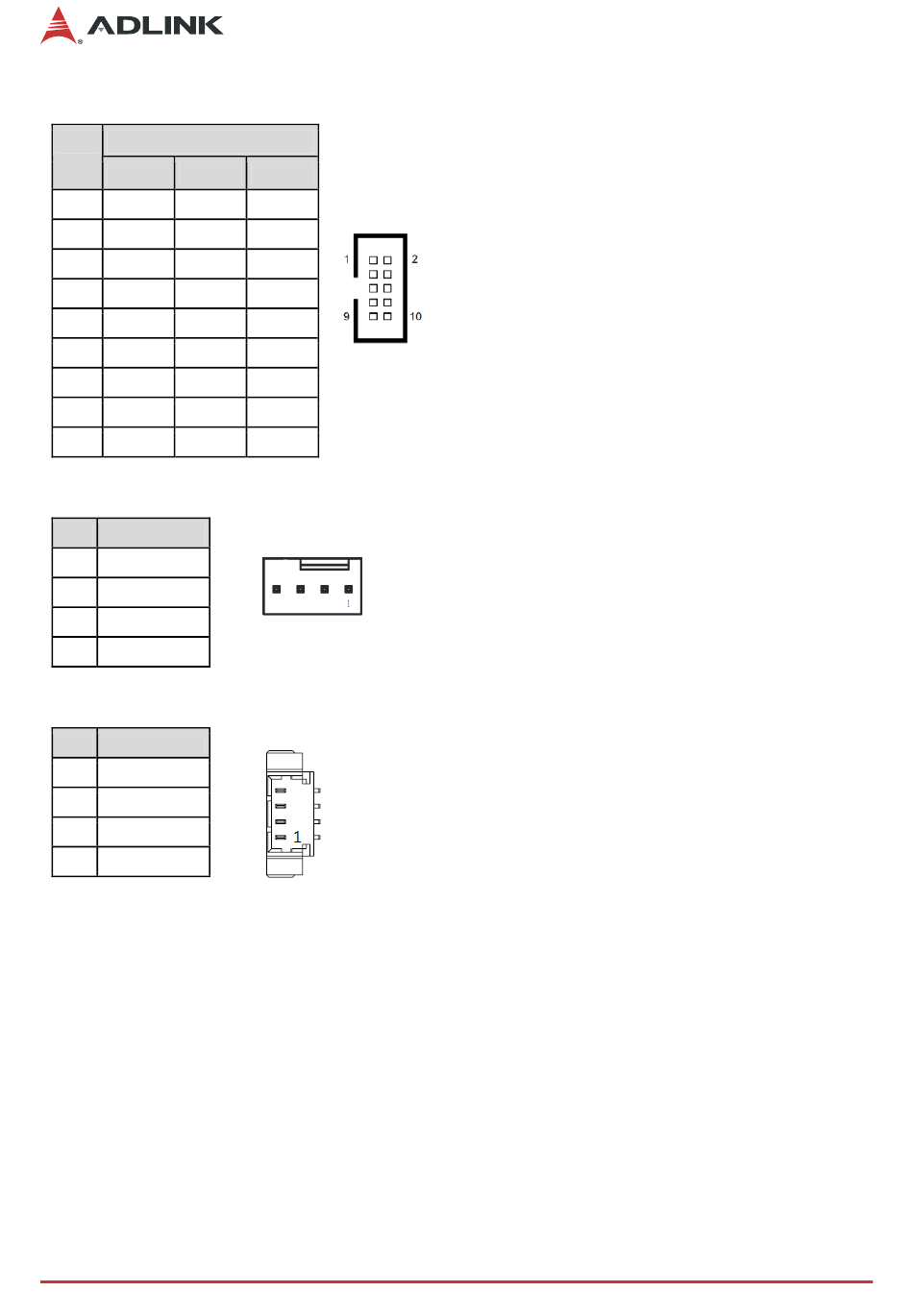

4.2.6 COM Pin Headers (CN8)
Pin Signal Name
RS-232 RS-422
1 DCD# Tx-
2 DSR# Tx+
3 RxD Rx+
4 RTS# Rx-
5 TxD N /A
6 CTS# N /A
7 DTR# N /A
8 RI# N /A
9 GND GND
4.2.7 CPU Fan and System Fan
Pin Signal
1 FAN_GND
2 P_+12V_FAN
3 FAN_IN
4 FAN_OUT
4.2.8 GPU Fan
Pin Signal
1 FAN_OUT
2 FAN_IN
3 P_+12V_FAN
4 FAN_GND
14
RS-485
Tx/Rx-
Tx/Rx+
N /A
N /A
N /A
N /A
N /A
N /A
GND
