Express-TL User's Guide

8. Mechanical and Thermal

8.1. Module Dimensions

95
91
90.73
26.56
4
0
Top View
Front View
Page 69
91 91
87.25
8.35
4

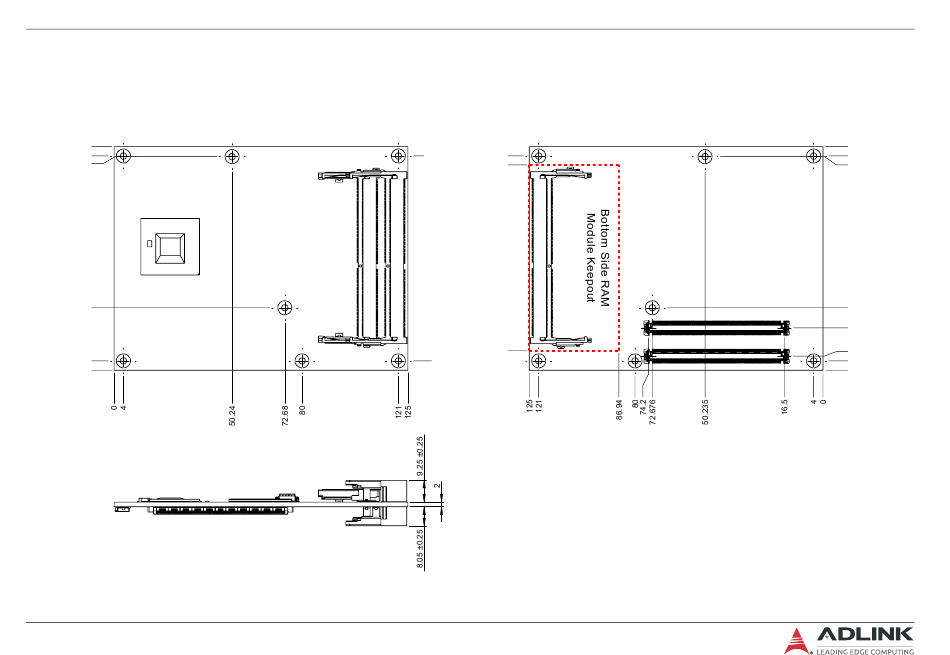

Figure 6 – Module mechanical dimensions
Copyright © 2022 ADLINK Technology, Inc.
Bottom View
All dimensions are shown in millimeters. Tolerances
should be ± 0.25mm, unless otherwise noted.
The tolerances on the module connector locating
peg holes (dimensions [16.50, 6.00]&[16.50,18.00])
should be ± 0.10mm.
Dimensions: mm
PICMG COM.0 R3.0
95
91
90.73
26.56
18
6
4
0
