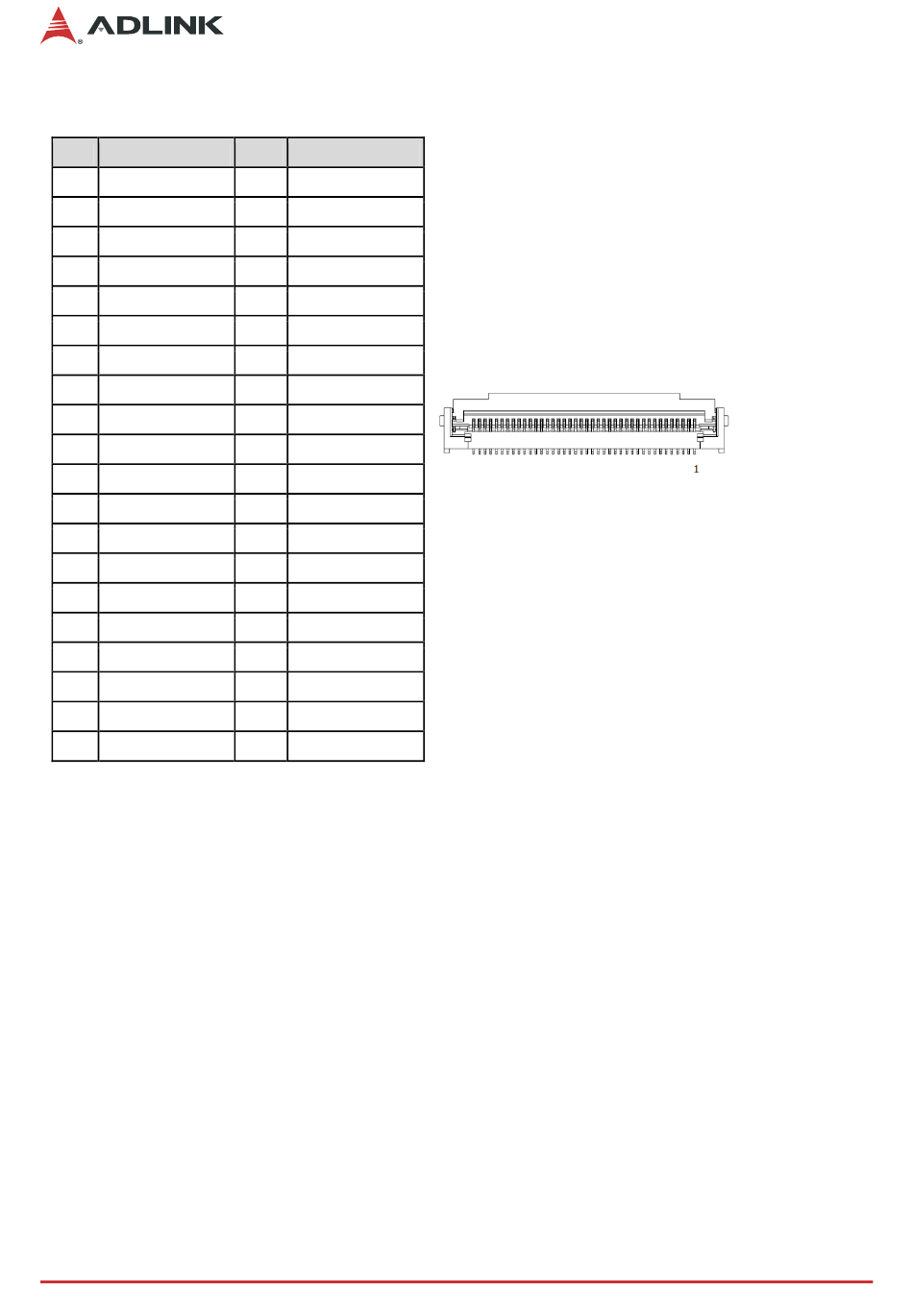

4.2.14 DB40 Connector (CN18)
Pin Signal
1 VCC_SPI_IN
2 GND
3 SPI_BIOS_CS0#
4 SPI_BIOS_CS1#
5 SPI_BIOS_MISO
6 SPI_BIOS_MOSI
7 SPI_BIOS_CLK
8 3V3_LPC
9 GND
10 BIOS_DIS0
11 RST#
12 CLK33_LPC
13 LPC_FRAME#
14 LPC_AD3
15 LPC_AD2
16 LPC_AD1
17 LPC_AD0
18 3.3V_SMC
19 3.3V_A
20 GND
18
Pin Signal
21 TXD6
22 RXD6
23 FUMD0
24 RESET_IN#
25 DATA
26 CLK
27 OCD0A
28 OCD0B
29 PWRBTN#
30 SYS_RESET#
31 CB_RESET#
32 CB_PWROK
33 SUS_S3#
34 SUS_S4#
35 SUS_S5#
36 POSTWDT_DIS#
37 SEL_BIOS
38 BIOS_MODE
39 SMC_STATUS
40 RSVD
Connector Pinouts
