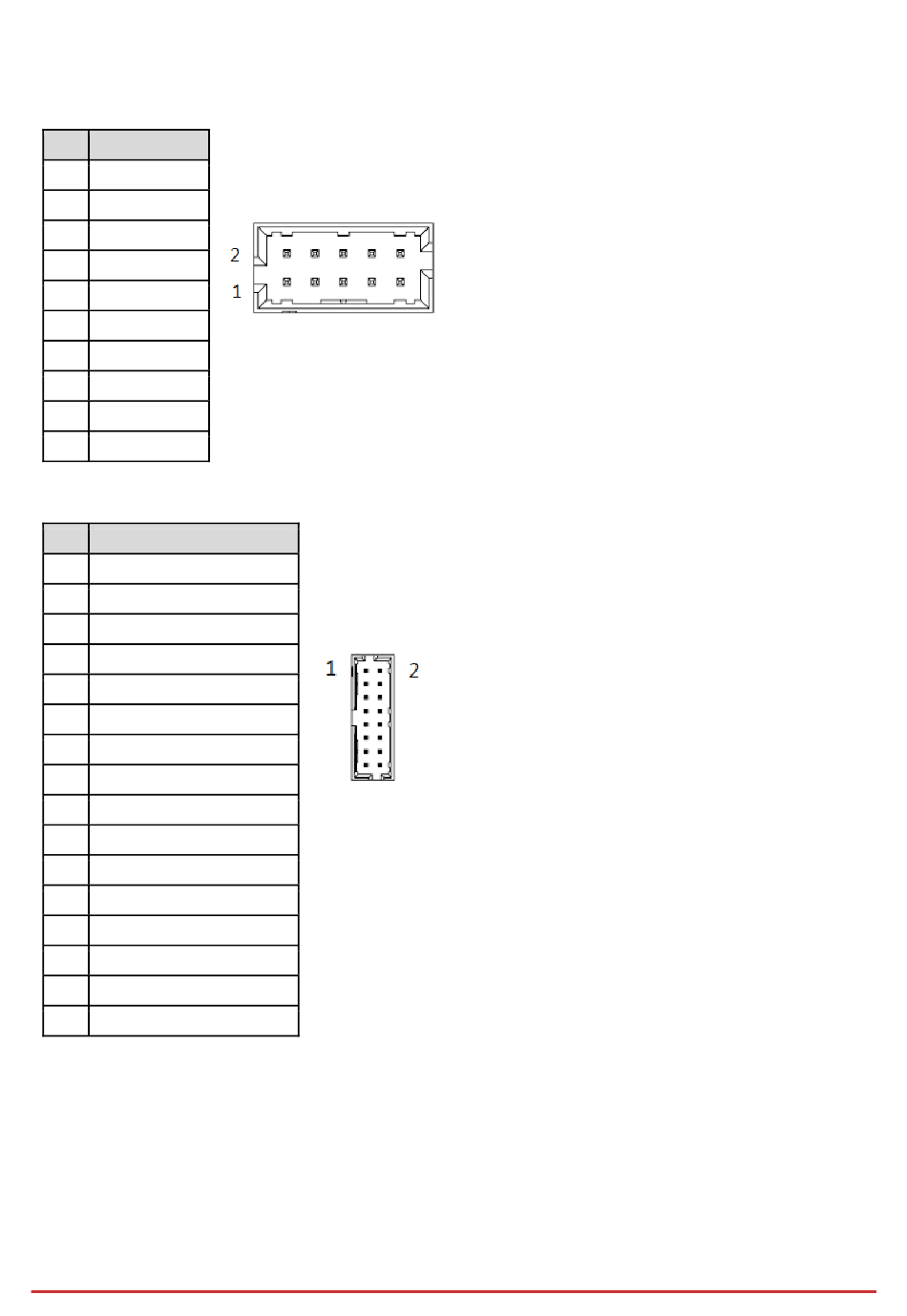

4.2.9 Audio Pin Header (CN9)
Pin Signal
1 AUDIO_Sense
2 SPK_RP
3 A_L_IN_L
4 SPK_RN
5 A_L_IN_R
6 GND_AUD
7 A_MIC_IN_L
8 SPK_LP
9 A_MIC_IN_R
10 SPK_LN
4.2.10 Power On Module Connector (CN12)
Pin Signal
1 P_+5V0_A
2 P_+3V3_A
3 PWR_BTN#
4 LED_STANDBY
5 RST_BTN#
6 POWER_ON
7 RESET_BUTTON_ALARM#
8 PCH_SATS-L
9 LED_TEMP_ALARM
10 GND
11 LED_FAN_ALARM
12 GND
13 P_+12V_A
14 GND
15 BEEP_TEMP_ALARM
16 GND
