Figure 4: Onboard Connector Locations - Bottom Side; Table 3: Onboard Connector Definitions - Bottom Side - ADLINK Technology AMSTX-CF Series User Manual

K
J J
E E
Mechanical Layout
A A F G F G
B B C C
H H

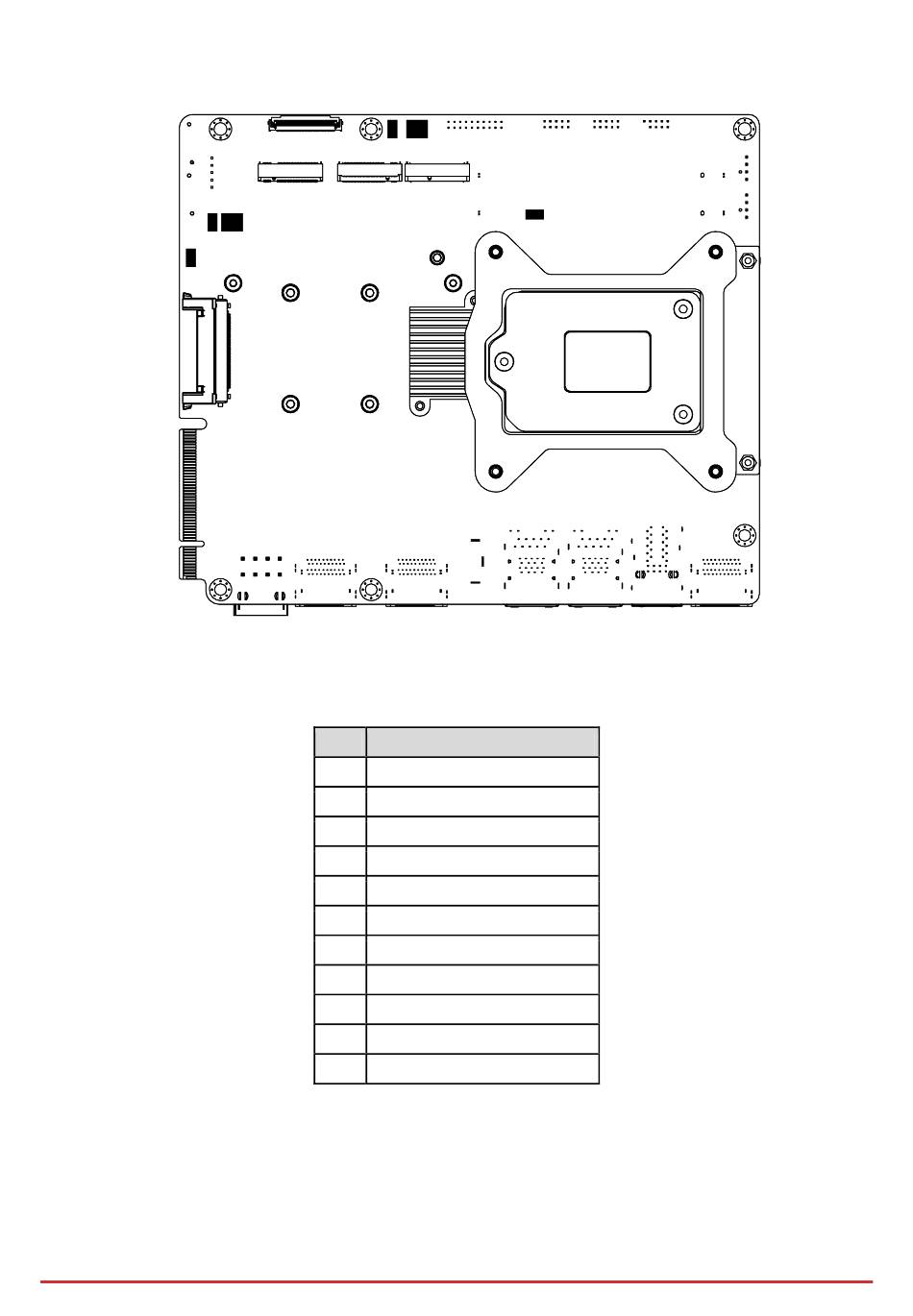

Figure 4: Onboard Connector Locations - Bottom Side

Table 3: Onboard Connector Definitions - Bottom Side

Item Description
A DB40 connector (CN19)
B M.2_B Key connector (CN17)
C M.2_M Key connector (CN20)
D M.2_E Key connector (CN15)
E LVDS (CN21)
F Multi-IO voltage selection (SW9)
G RI#,5V,12V selection (SW7)
H HSIO Selection (SW5)
I LVDS Channel selection (SW2)
J DIO voltage selection (SW8)
K LVDS VDD selection (SW6)
I I
D D
