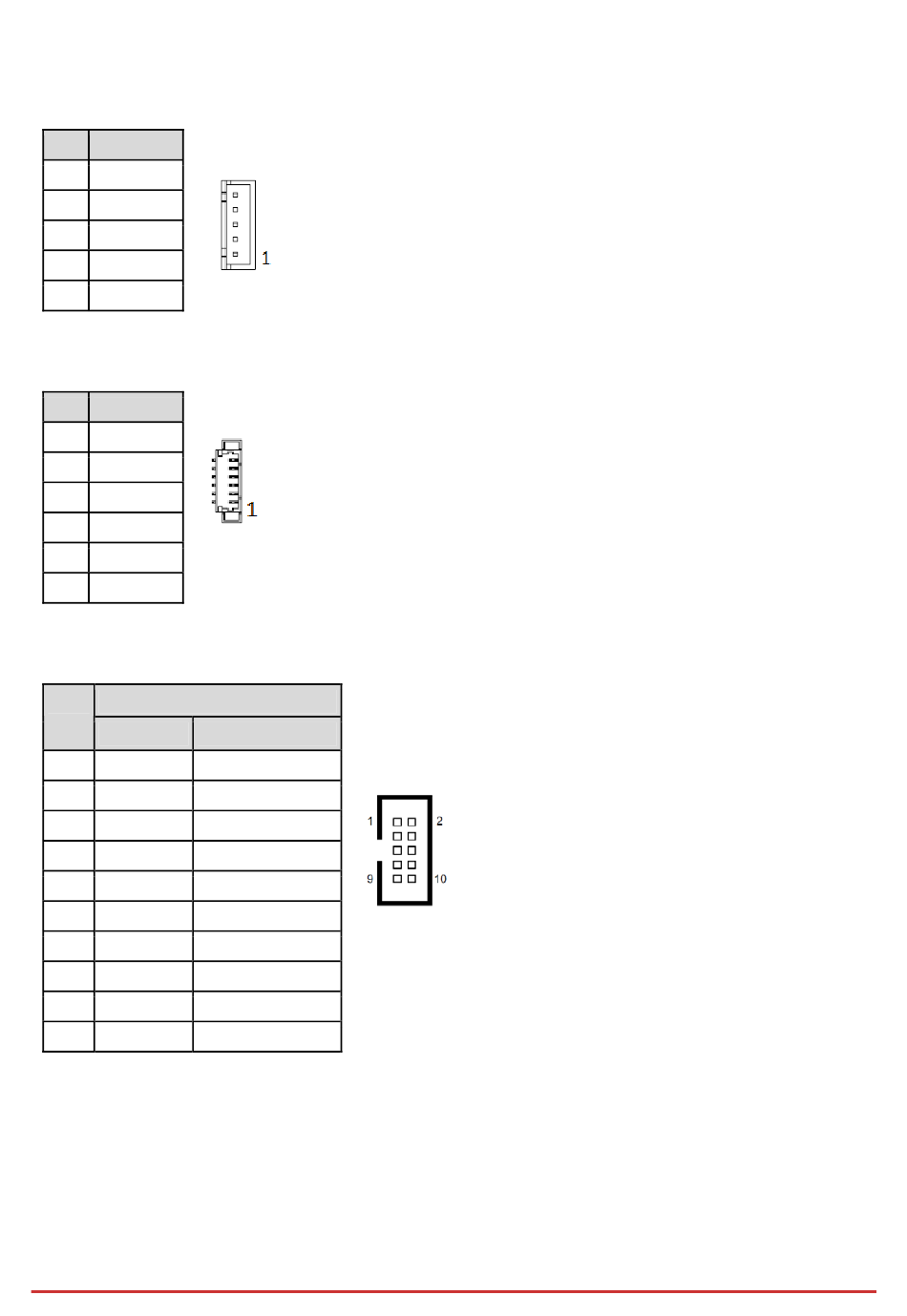

4.2.3 PCIe Power Connector Pin Header (CN10)
Pin Signal
1 P_+12V_S
2 P_+12V_S
3 P_+5V0_S
4 P_+5V0_S
5 GND
4.2.4 SATA Power Connector Pin Header (CN14)
Pin Signal
1 P_+5V0_S
2 P_+5V0_S
3 P_+5V0_S
4 GND
5 GND
6 GND
4.2.5 COM Pin Headers (CN7)
Pin Signal Name
RS-232
1 DCD#
2 DSR#
3 RxD
4 RTS#
5 TxD
6 CTS#
7 DTR#
8 RI#/5V/12V
9 GND
10 NC
Connector Pinouts
CC Talk mode
N/A
N/A
RS232_RX_ccTalk
N/A
RS232_TX_ccTalk
N/A
N/A
5V / 12V
GND
NC
