Install PCIe Card in PCIe Riser
2. Locate the proper PCIe slot for the card you are replacing.
3. Remove the PCIe riser.
See "Remove PCIe Riser From Server Nodes" on page

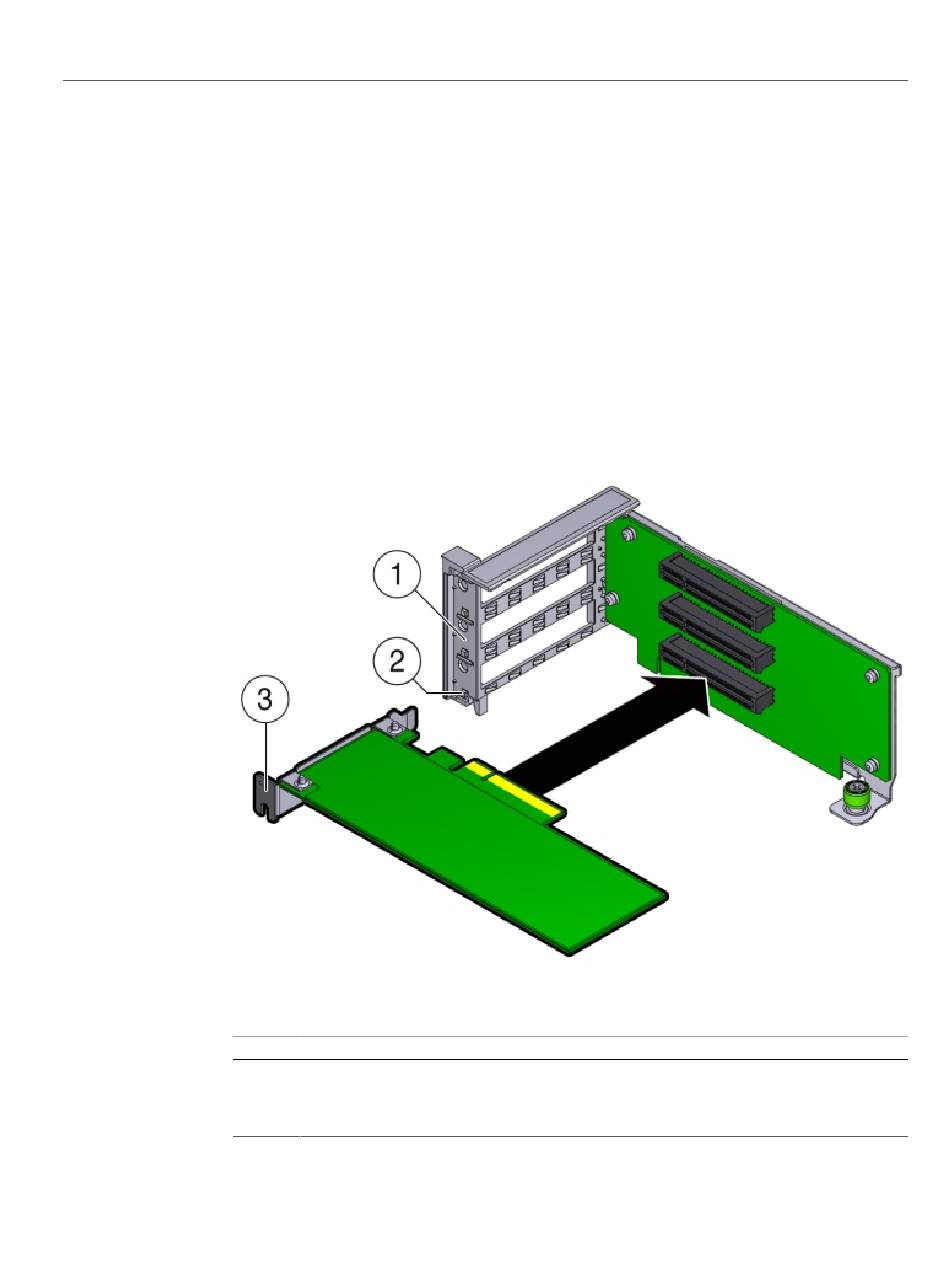

4. Insert the PCIe card into the correct slot on the riser.
a. Press the PCIe card until the locking bracket on the PCIe card is flush with
the recessed area on the PCIe riser.
Slide the locking bracket down until it engages the PCIe riser locking tab.
b.
Callout
1
2
3
Install the PCIe riser.
5.
78 Oracle Database Appliance Service Manual • February 2016
Description
Recessed area on the PCIe riser
PCIe riser locking tab
PCIe card locking bracket
72.
