Oracle Database Appliance X3-2/X4-2 Status Indicators
Callout
3
4
5
Storage Shelf Back Panel Indicators

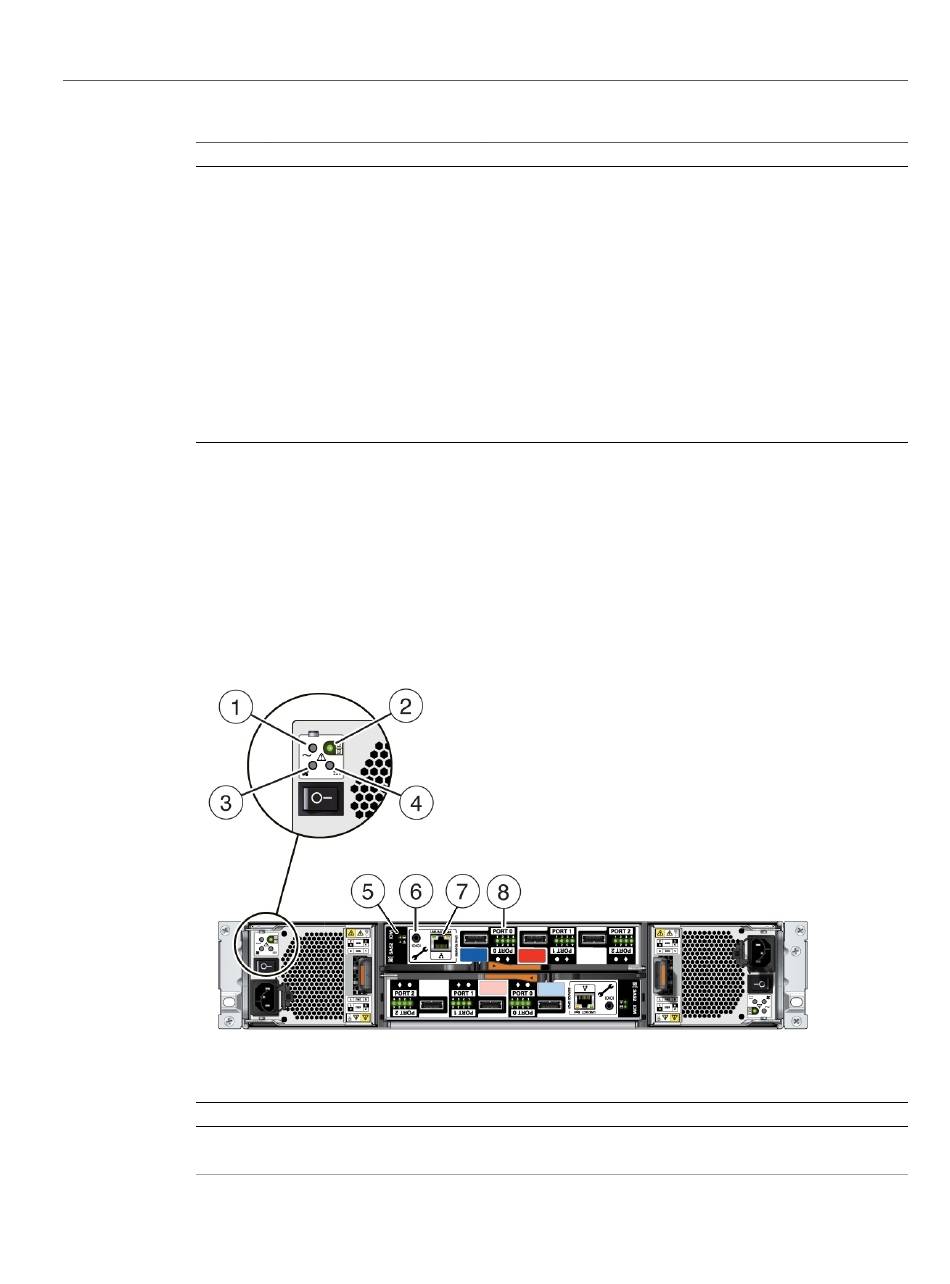

The following figure shows the controls and indicators on the storage shelf back panel and
drives.
Callout
1
16 Oracle Database Appliance Service Manual • February 2016
Indicator/LED: Color
Locate: white
Drive Service Required: amber
Power/Activity: green
Indicator/LED: Color
AC power fault indicator: amber
State Meaning
■ Steady on – A fault is present in the storage shelf.
■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
State Meaning
■ On – Indicates an AC power fault.
■ Off – Normal operation.
