Storage And Boot Drive Status Indicators; Power Supply Status Indicators - Oracle Database Appliance Service Manual

Indicator/LED: Color

Storage and Boot Drive Status Indicators

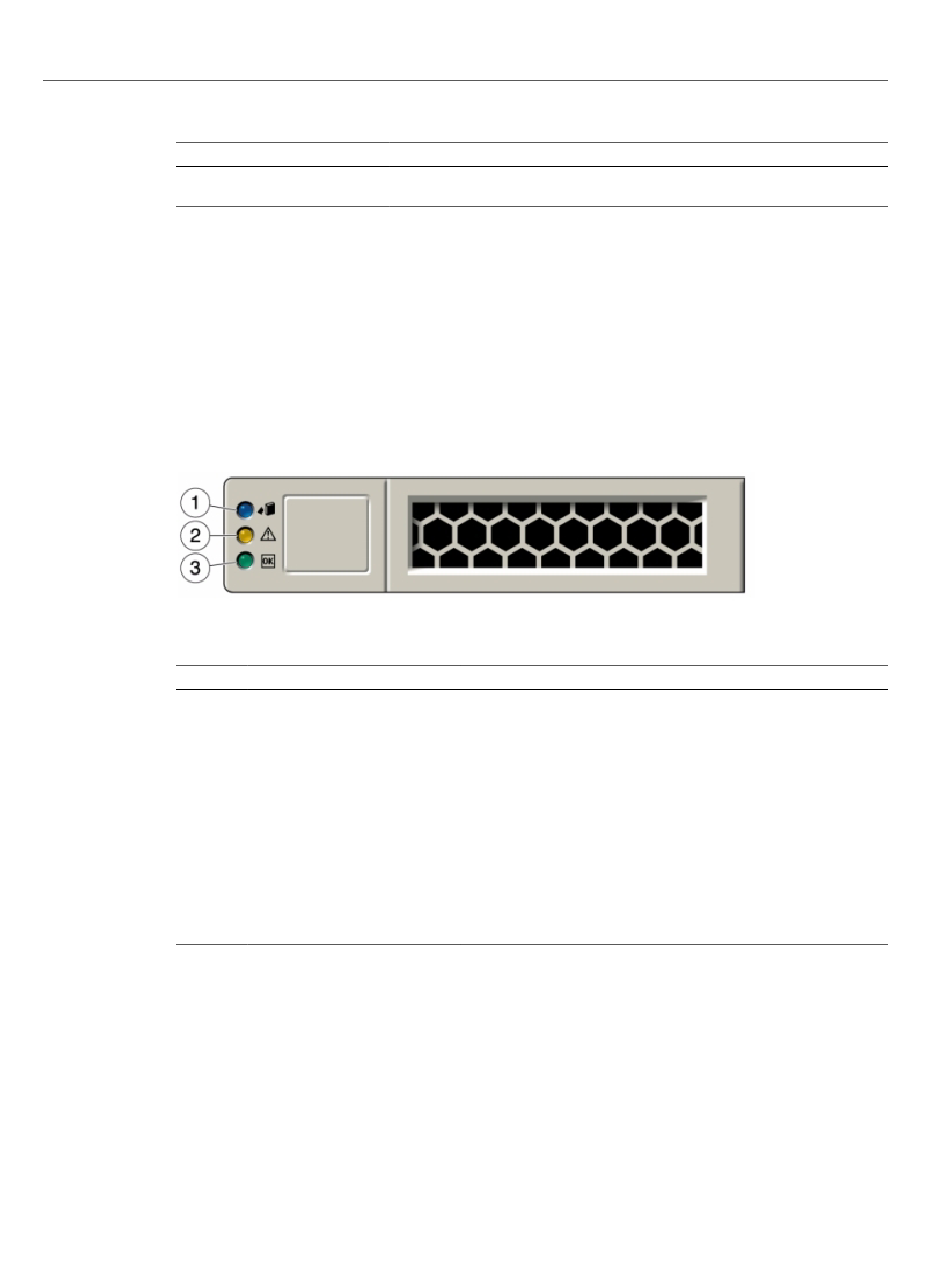

Each storage drive for Oracle Database Appliance (original version) includes three LEDs. They
are the same on the front storage drives and the rear-mounted boot drives. See the following
table.
Callout Indicator/LED: Color
1 Ready to Remove: blue
2 Service Required: amber
3 OK/Activity: green

Power Supply Status Indicators

There are three status LEDs on each power supply for Oracle Database Appliance (original
version), as shown in the following table.
Oracle Database Appliance (Original Version) Status Indicators
State Meaning
Note - The front and rear panel Service Required LEDs are also lit if the system
detects a fan module fault.
State Meaning
■ Off – Normal operation.
■ Fast blink – The system is preparing a disk drive for safe removal
but it is not ready yet.
■ Steady on – The disk drive can be safely removed.
■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
Chapter 1 • Overview of System Status Indicators and LEDs 21
