Storage Shelf Status Indicators

Storage shelves are supported with Oracle Database Appliance X3-2/X4-2. They include
controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/
O modules.
Storage Shelf Front Panel and Drive Indicators

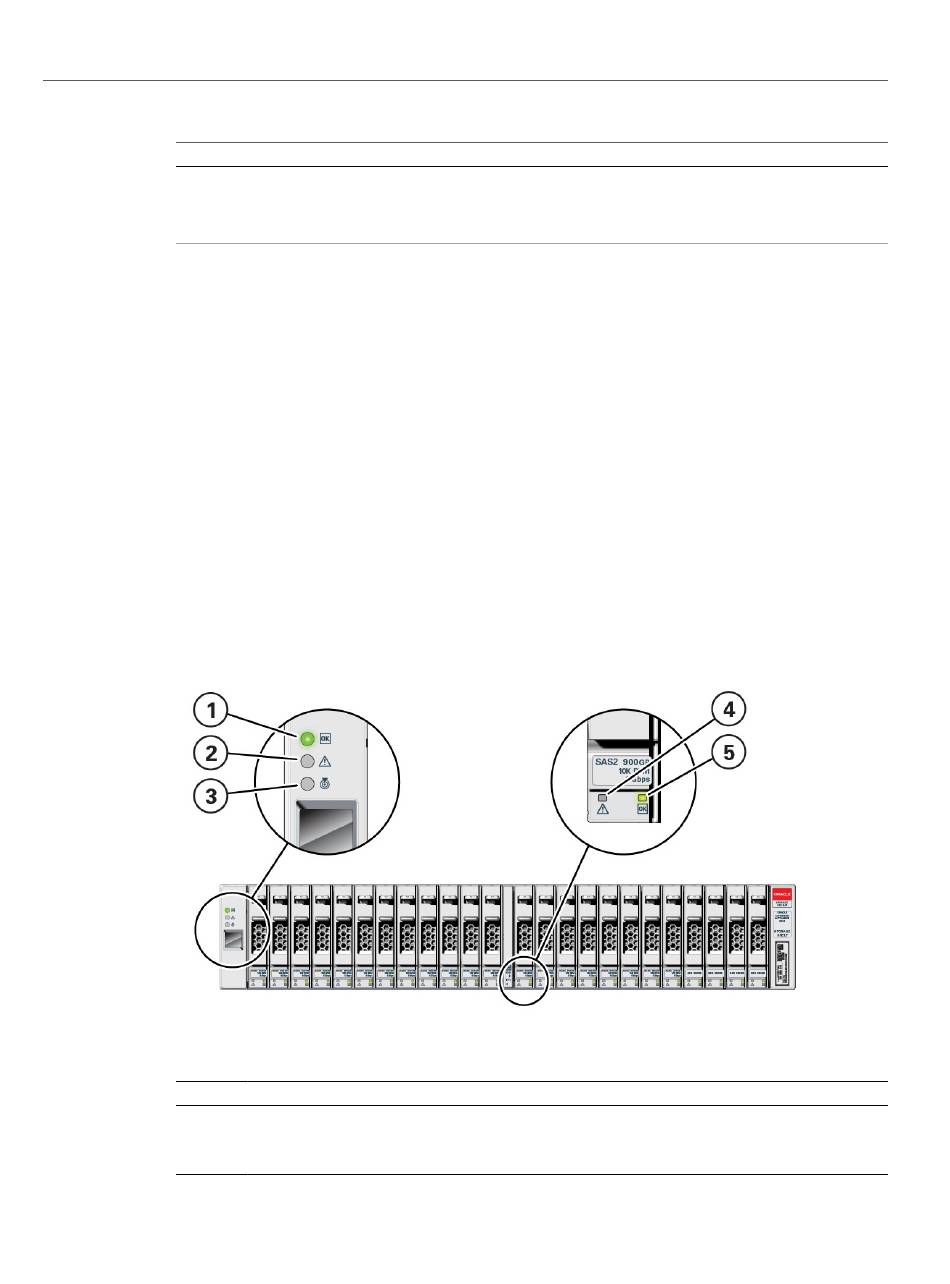

The following figure shows the controls and indicators on the storage shelf front panel and
drives.
Callout Indicator/LED: Color
1 OK: green
2 Service Required: amber
Oracle Database Appliance X3-2/X4-2 Status Indicators
ODA X4-2
Server Node Storage Drive Status Indicators
Server Node Power Supply Status Indicators
Server Node Motherboard Status Indicators
State Meaning
■ On – The storage shelf is powered on and operating normally.
■ Off – The storage shelf is unplugged or turned off.
■ Off – Normal operation.
Chapter 1 • Overview of System Status Indicators and LEDs 15
