The Cortex-M4 processor
2.2

Memory model

This section describes the processor memory map, the behavior of memory accesses, and
the bit-banding features. The processor has a fixed memory map that provides up to 4 GB of
addressable memory.
The regions for SRAM and peripherals include bit-band regions. Bit-banding provides
atomic operations to bit data, see
The processor reserves regions of the Private peripheral bus (PPB) address range for core
peripheral registers, see
page 193.
28/262

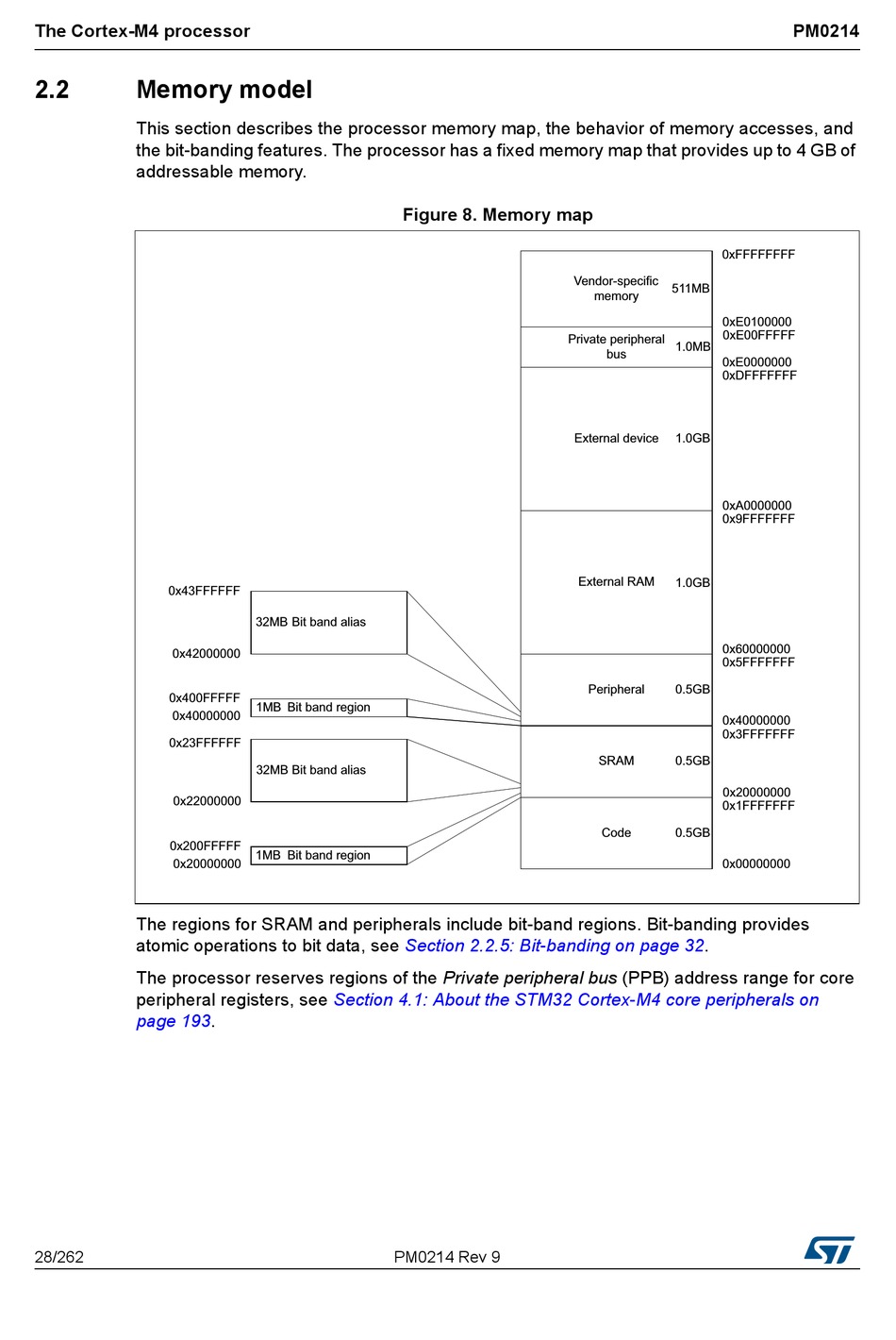

Figure 8. Memory map

Section 2.2.5: Bit-banding on page
Section 4.1: About the STM32 Cortex-M4 core peripherals on
PM0214 Rev 9
PM0214
32.
