Oil Pressure Sensor; Headlights; Testing The Headlight Bulb And Socket; Headlight Bulb Removal - Club Car Carryall 295 Maintenance And Service Manual

ELECTRICAL COMPONENTS: GASOLINE
VEHICLES

OIL PRESSURE SENSOR

See General Warnings, Section 1, Page 1-2.
Refer to the engine manual for additional testing, removal, disassembly, and installation procedures. See the
Kawasaki FH680D engine manual (CC P/N 103351201).

HEADLIGHTS

See General Warnings, Section 1, Page 1-2.

TESTING THE HEADLIGHT BULB AND SOCKET

See Test Procedure 34 – Voltage at Headlight Socket on page 11-36. See also Test Procedure 33 – Light
Switch on page 11-35.

HEADLIGHT BULB REMOVAL

1. Disconnect battery and spark plug wire(s). See Disconnecting the Battery – Gasoline/Diesel Vehicles on
page 1-3.
2. From the front of the vehicle, reach under the cowl and turn the connector harness/halogen bulb assembly
clockwise one-quarter turn (Figure 13-12, Page 13-17).
3. Remove the connector harness/halogen bulb assembly from the headlight lens.
4. Lift the retaining tabs on the connector and remove the halogen bulb.
1
1165

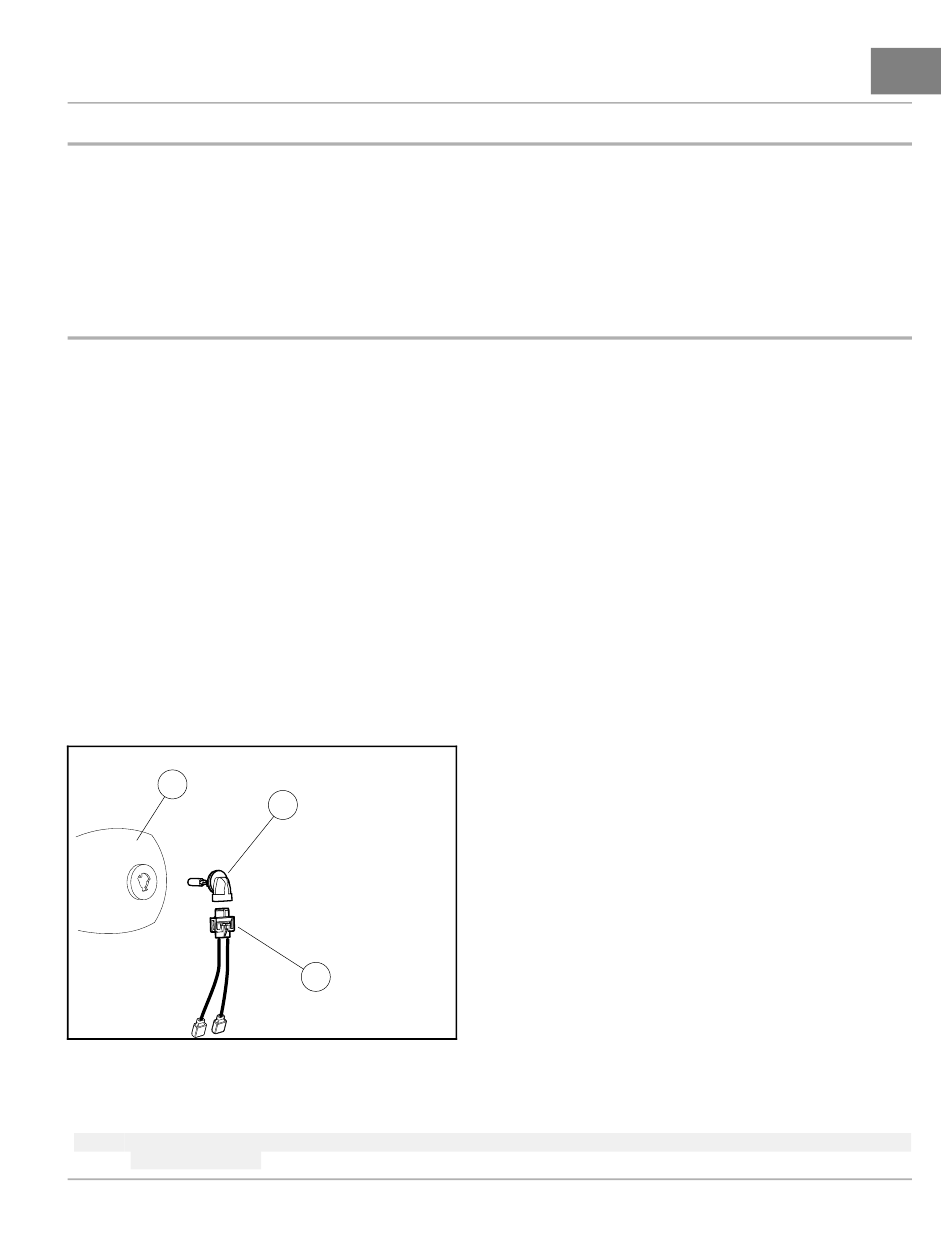

Figure 13-12 Headlight Bulb

HEADLIGHT BULB INSTALLATION

NOTE: When handling halogen bulbs, do not touch the glass portion of bulb. Oil from finger tips can cause premature
failure of the bulb.
2
3
