19
Electrical
– The continuity of the control valve coil.
– A bent valve stem. Replace valve.
– Any debris in the valve cartridge.
– Check for debris by energizing the valve without starting the motor and listening for the valve to shift (a
definite "Click" is heard when the valve in energized).
– If the valve does not shift, remove the cartridge from the valve body.
– Blow compressed air through the cartridge in both directions while holding the plunger off its seat. Use a
blunt object inserted through bottom of cartridge to move plunger. It will help to have the "body" filter
removed. See following NOTE.
NOTE: The cartridge itself cannot be disassembled in the field as the proper tolerances cannot be duplicated. If the
dirt cannot be removed the cartridge will have to be replaced.
2. If the valve does not return to the neutral or unshifted position, check for either dirt in the valve cartridge or a
bent stem.
Three-Way 2-Position and Four-Way 2-Position Valves
2
3 1
2
1
2249

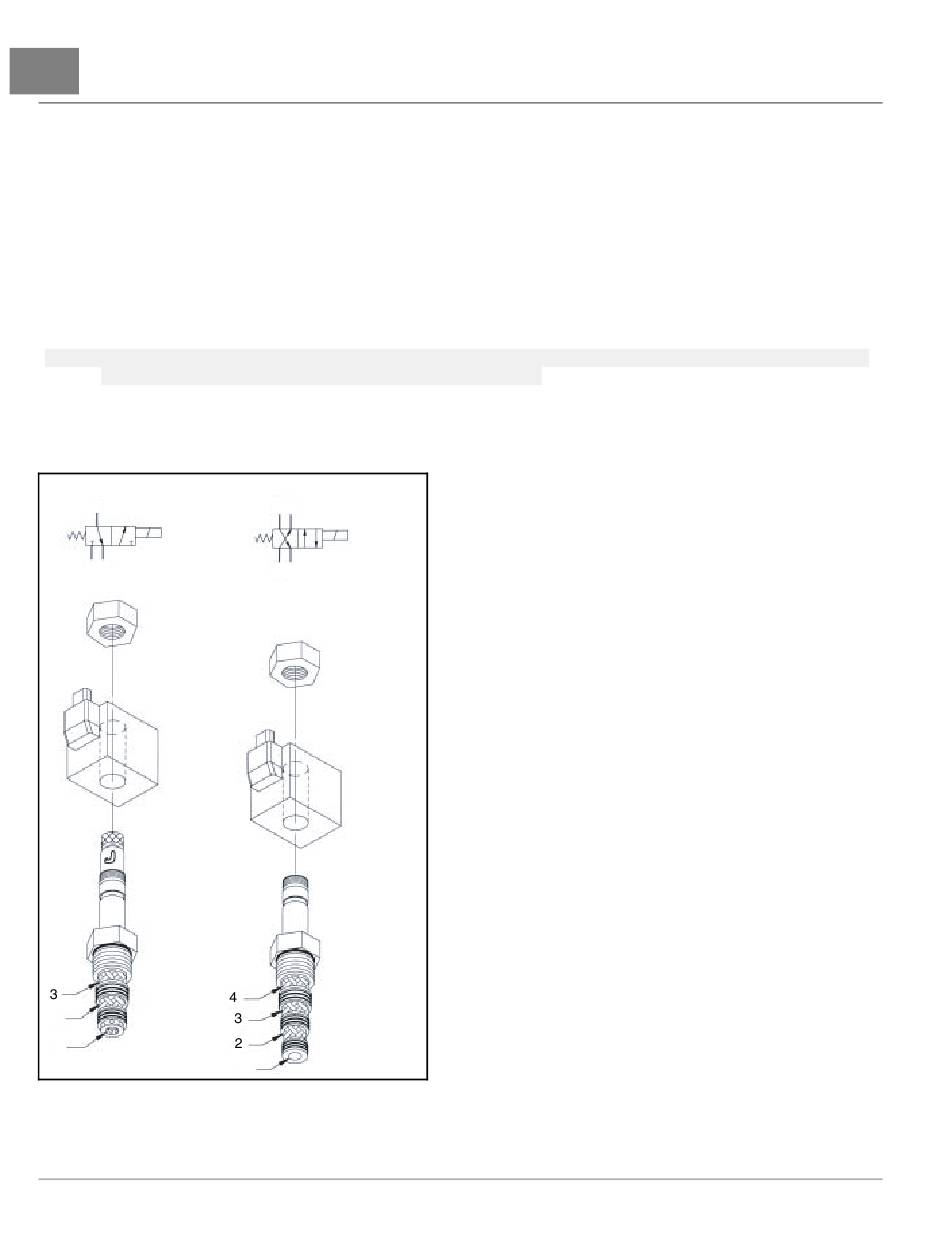

Figure 19-33 Three-Way 2-Position and Four-Way
2-Position Valve and Coil
Troubleshoot and repair these valves as follows (Figure 19-33, Page 19-20):
Page 19-20 2008-2012 All-Wheel Drive Maintenance and Service Manual
4 2
3 1
1
HYDRAULIC ATTACHMENT SYSTEM
