TROUBLESHOOTING AND ELECTRICAL SYSTEM:
DIESEL VEHICLES
2092

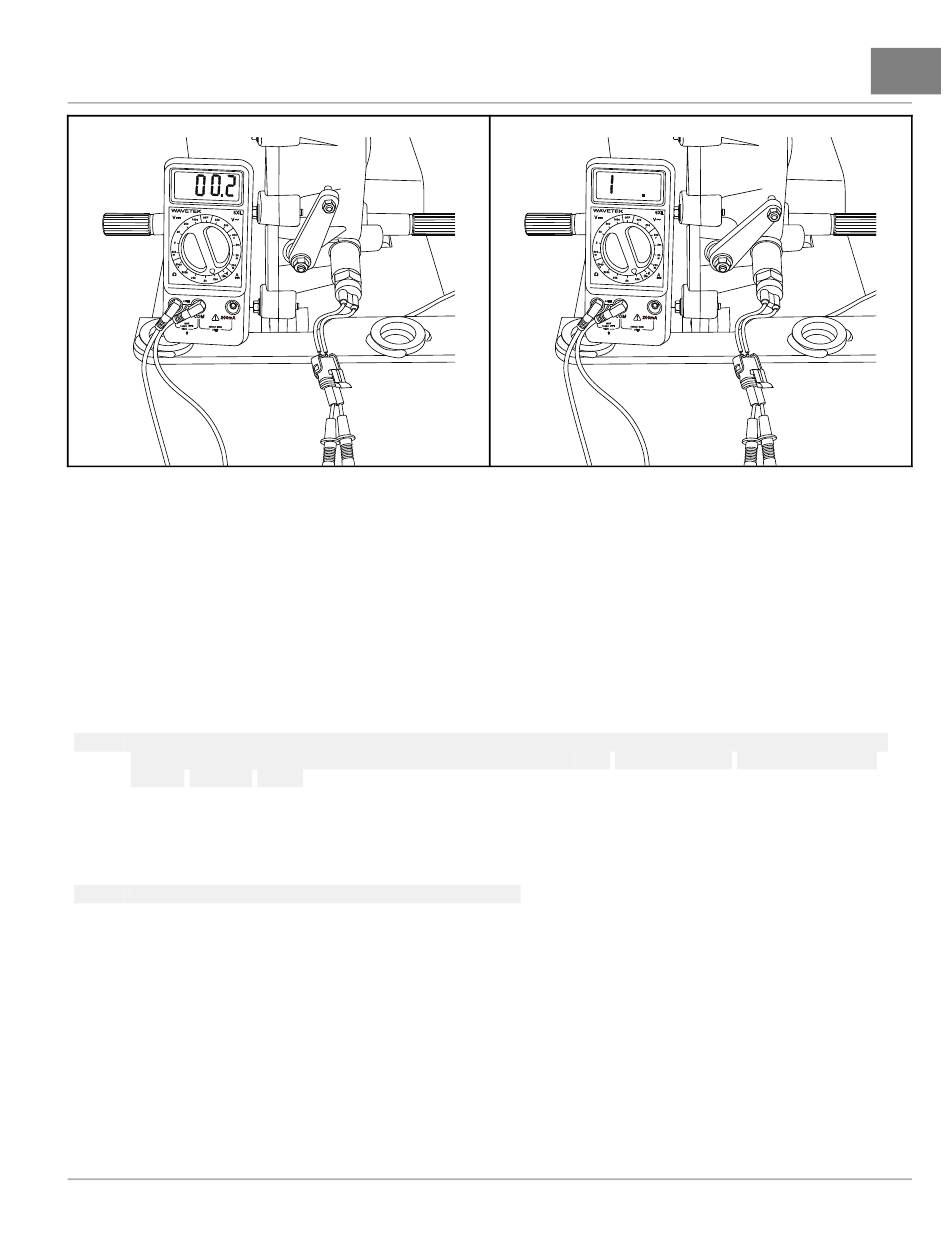

Figure 12-26 Neutral Switch – Neutral Position
TEST PROCEDURE 18 – Wire Continuity
See General Warnings, Section 1, Page 1-2.
1. Disconnect battery. See Disconnecting the Battery – Gasoline/Diesel Vehicles, Section 1, Page 1-3.
2. To test a wire for continuity, disconnect either end from the electrical component to which it is attached.
3. Set the multimeter to 200 ohms and place the red (+) probe on the terminal at one end of the wire. Place the
black (–) probe on the other terminal end of the wire. The reading should indicate continuity. If the reading is
incorrect, repair or replace the wire. See following NOTE.
NOTE: When checking continuity of wires in the wire harness, observe the polarity of diodes. Testing continuity of
certain wires will require the appropriate diode test procedure. See Test Procedure 12 – Wire Harness
Diodes on page 12-26.
TEST PROCEDURE 19 – Front Differential Limit Switch
See General Warnings, Section 1, Page 1-2.
NOTE: Keep the battery connected during this test procedure.
The front differential limit switch is located under the hood where the accelerator pedal mounts to the chassis.
1. Disable the vehicle. See Disabling the Vehicle on page 1-3.
2. Check for proper wiring and tight connections at the front differential limit switch (Figure 12-28, Page 12-32)
or (Figure 12-29, Page 12-32).
2094
Figure 12-27 Neutral Switch – Reverse Position
2008-2012 All-Wheel Drive Maintenance and Service Manual
12
Test Procedures
Page 12-31
