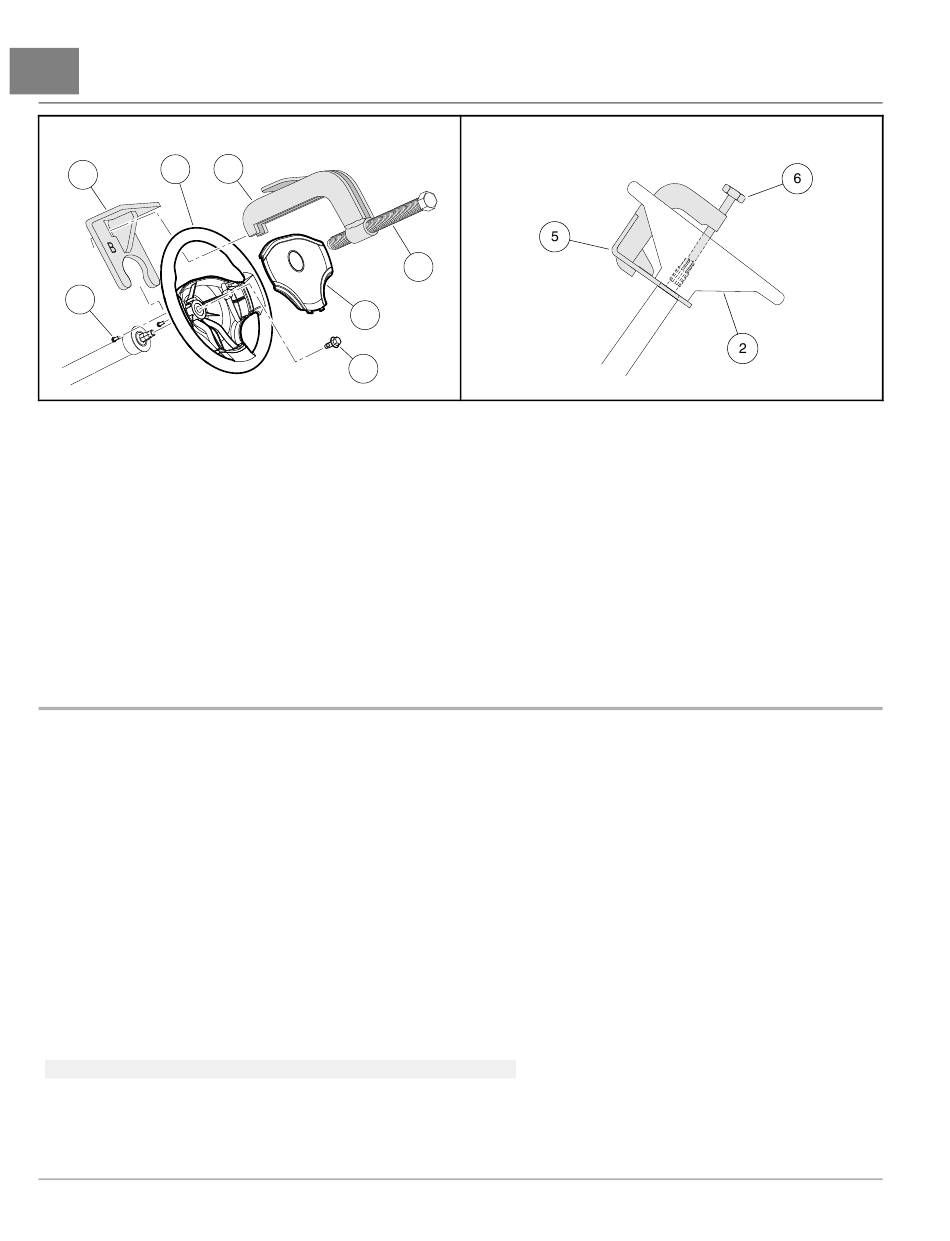

Figure 7-1 Steering Wheel Removal

STEERING WHEEL INSTALLATION

1. Install the steering wheel (3) on the hex portion of the steering shaft. Align the hex fitting of the wheel with
the steering column shaft (Figure 7-1, Page 7-2).
2. Install steering wheel retaining bolt (4) and tighten to 37 ft-lb (50 N·m).
3. Place cover (2) onto steering wheel and secure with two screws (1). Tighten screws to 15 in-lb (1.7 N·m).
4. Connect battery. See Connecting the Battery – Gasoline/Diesel Vehicles, Section 1, Page 1-4.
STEERING COLUMN
See General Warnings, Section 1, Page 1-2.

STEERING COLUMN REMOVAL

1. Disable the vehicle. See Disabling the Vehicle on page 1-3.
2. Disconnect battery. See Disconnecting the Battery – Gasoline/Diesel Vehicles, Section 1, Page 1-3.
3. Remove the steering wheel. See Steering Wheel Removal on page 7-1.
4. Remove the instrument panel. See Instrument Panel Removal, Section 4, Page 4-3.
5. Raise the hood. See Front Fascia Removal, Section 4, Page 4-4.
6. Loosen the top bolt from the steering column shaft at the universal joint (Figure 7-4, Page 7-3).
7. Remove the bottom bolt from the rack and pinion shaft at the universal joint.
8. Remove the three nuts from the steering column mount bolts.
NOTE: Bolts are pressed into the steering column mount bracket.
9. Remove the steering column, and pull the shaft up through the hole in the splash guard.
Page 7-2 2008-2012 All-Wheel Drive Maintenance and Service Manual
5
2
4
STEERING AND FRONT SUSPENSION
7
2043
Figure 7-2 Steering Wheel Puller
