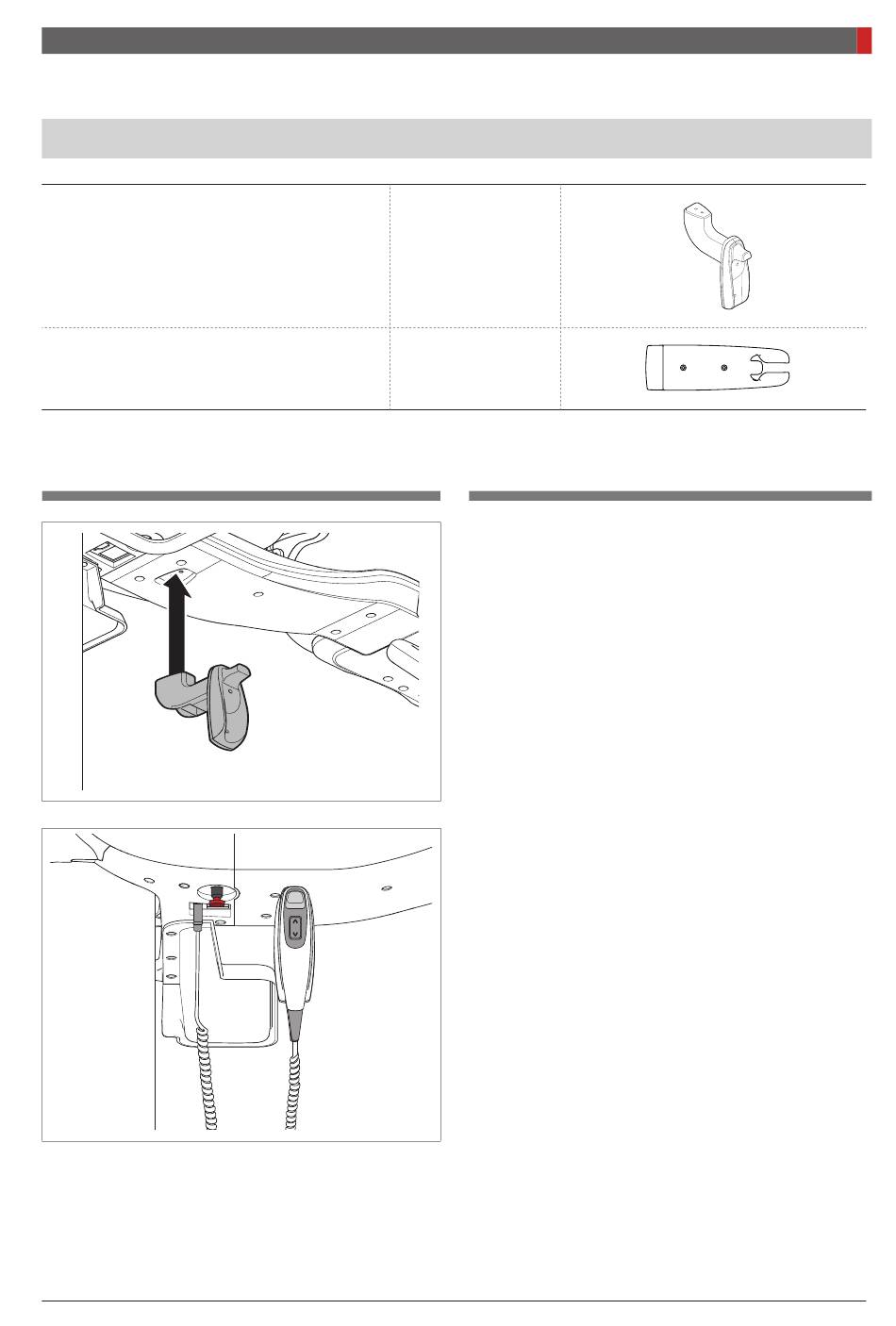

5.3 Installing the Switch Holders

UP/DOWN SWITCH HOLDER (Optional)
EXPOSURE SWITCH HOLDER
UP/DOWN switch holder
Exposure switch holder
1. Locate the exposure switch holder(Part No.:2) with a sticker and two screws.
2. Install the switch holder on the wall at the appropriate height using two screws.
Pax-i3D Smart(PHT-30LFO) Installation Manual
5 Completing Miscellaneous Works
Part No.:33
1 PCS
Part No.:2
1 PCS
1. Assemble the UP/DOWN switch holder on
the bottom of the handle frame with two truss
bolts(M4 x 10).
2. Connect the UP/DOWN switch(Optional, Part
No.:33) to the unit and hang it on the switch
holder.
71
