9 Acquiring the test image

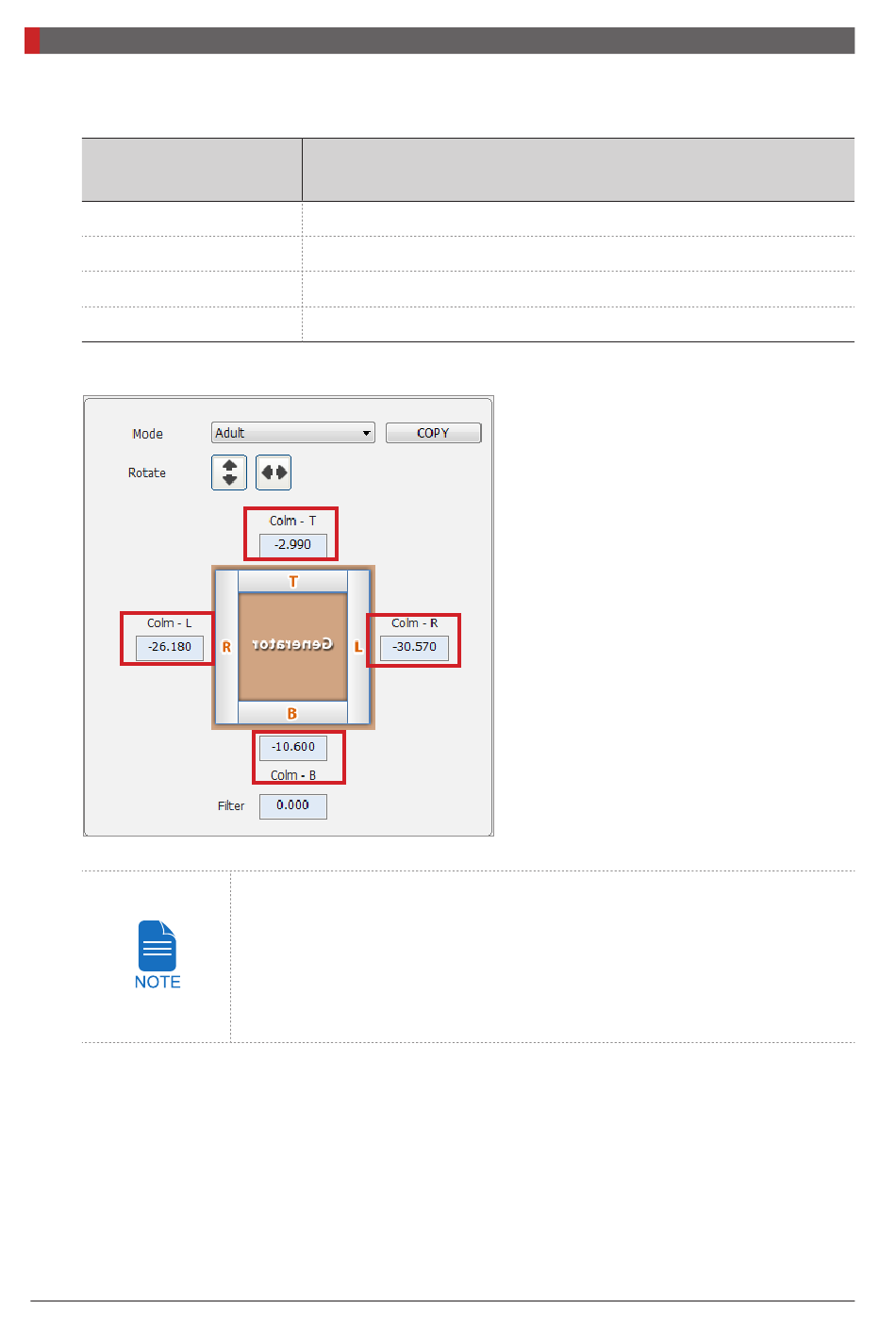

12. Make sure that the result meets the PANO collimator alignment standard.
Top
Bottom
Left
Right
13. If the red pixel count is out of the permitted value, change the collimator position values.
14. Do the steps 5 through 12 until the top/bottom/left/right red pixel count is within the permitted
value.
15. When the Collimator Alignment is completed, click COPY to save the Adult mode collimator
position value as Child mode default value.
130
(Red pixels covered by collimator)
● 0.1(mm) is approximately 3 pixels.
● To close the 4 axis collimator, decrease the collimator position
values.
To open the 4 axis collimator, increase the collimator position
values.
Permitted value
10~35 pixels
10~25 pixels
2~4 pixels
2~4 pixels
