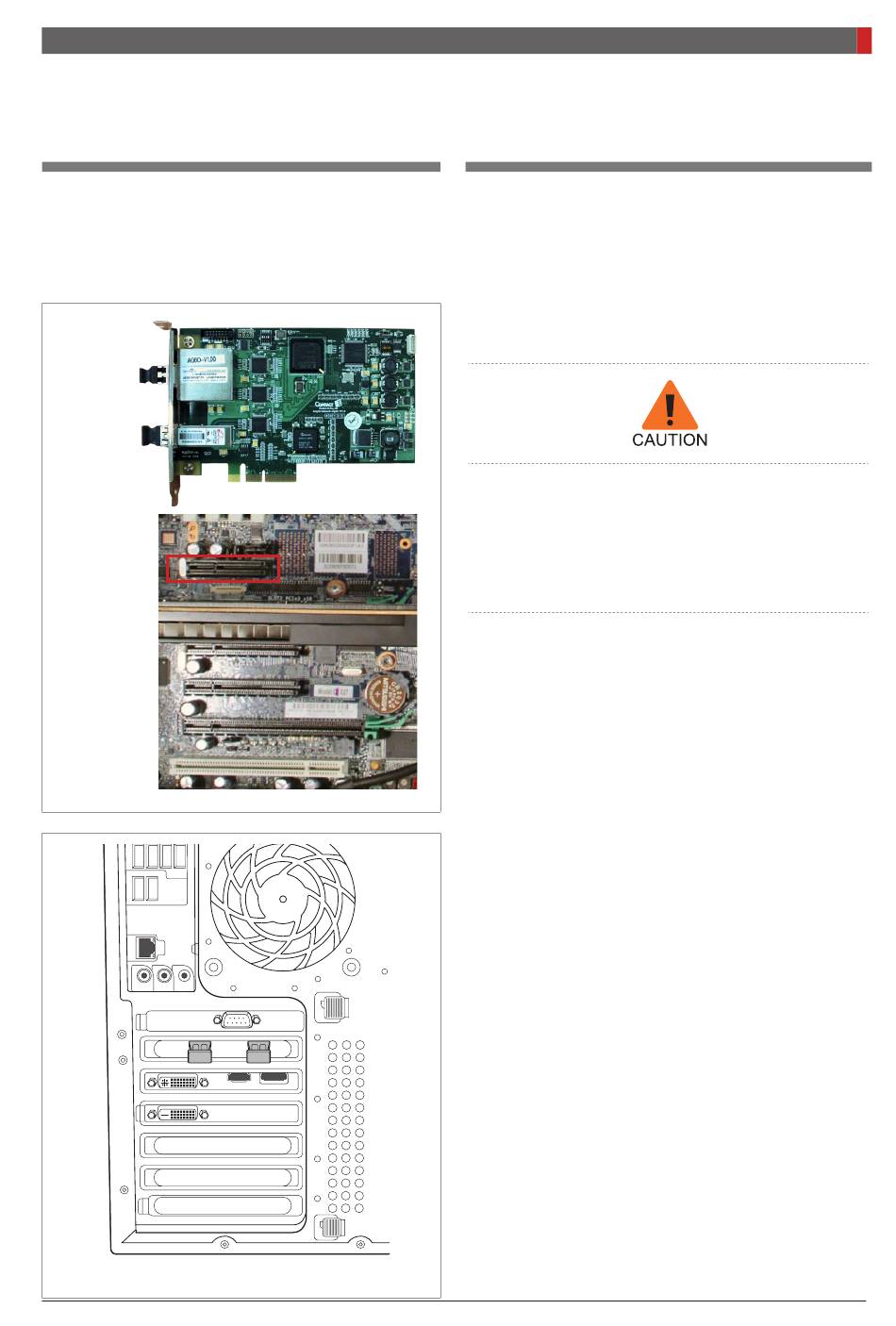

Installing the fiber optic frame grabber board
CT/PANO
CEPH
CEPH
The end result after the peripheral installation
Pax-i3D Smart(PHT-30LFO) Installation Manual
CT/PANO
1. Unplug the power cable from the back of PC
and wait for a while.
2. Open the PC cover.
3. Insert the fiber grabber board (Part No.:21)
carefully into that PCIe2 x 4 slot and lock it.
Double check the locking status between the
board and its holder after the board installed.
A bad insertion of the board into the PC slot
could cause failure for Dark calibration data
acquisition or noisy image acquisition.
4. Put the slot holder back to its initial position.
The end result after the peripheral installation
6 Setting up PC
