6 Setting up PC
6.1

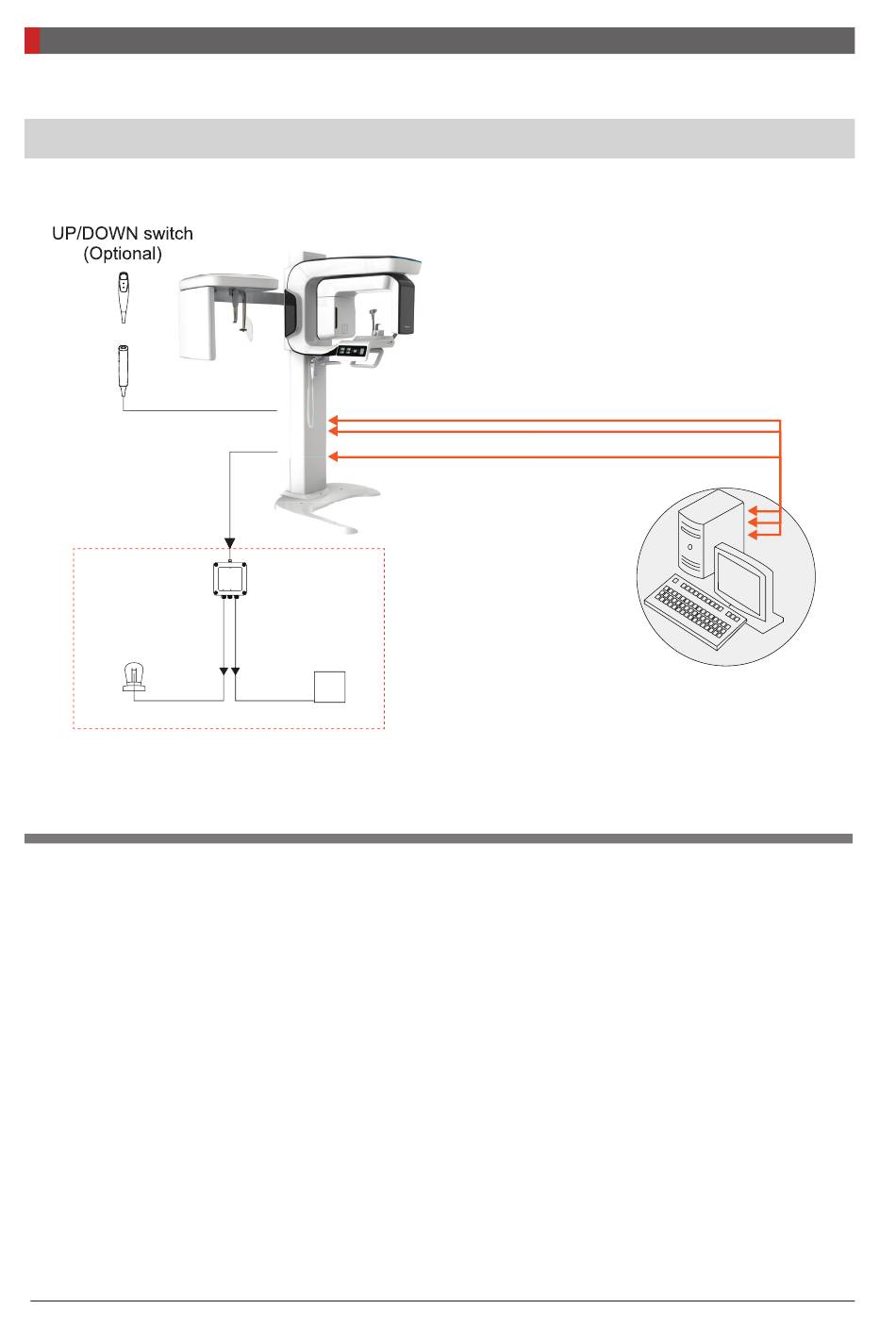

Direct Connection Diagram
Exposure switch
e switch
Warning system panel
Warning lamp
(Optional)
Fiber Optic Cable & Ethernet cable: Used to transfer image data to the PC.
Warning system panel: Used to provide a visible indicator: light when the equipment is irradiating
X-Ray
74
PaX-i3D Smart
PaX-i3D Smart
Fiber Optice Cable 10m(32.8'): SCAN CEPH(Optional)
Ethernet Cable(CAT5e): OneShot CEPH(Optional)
Fiber Optic Cable 10m(32.8'): PANO, CT
SIGNAL INPUT
WARNING SYSTEM BOX
LAMP INPUT
LAMP OUTPUT
Door interlock
PC w/ imaging and
image viewer programs
Pax-i3D Smart(PHT-30LFO) Installation Manual
