2 Choosing an Installation Site

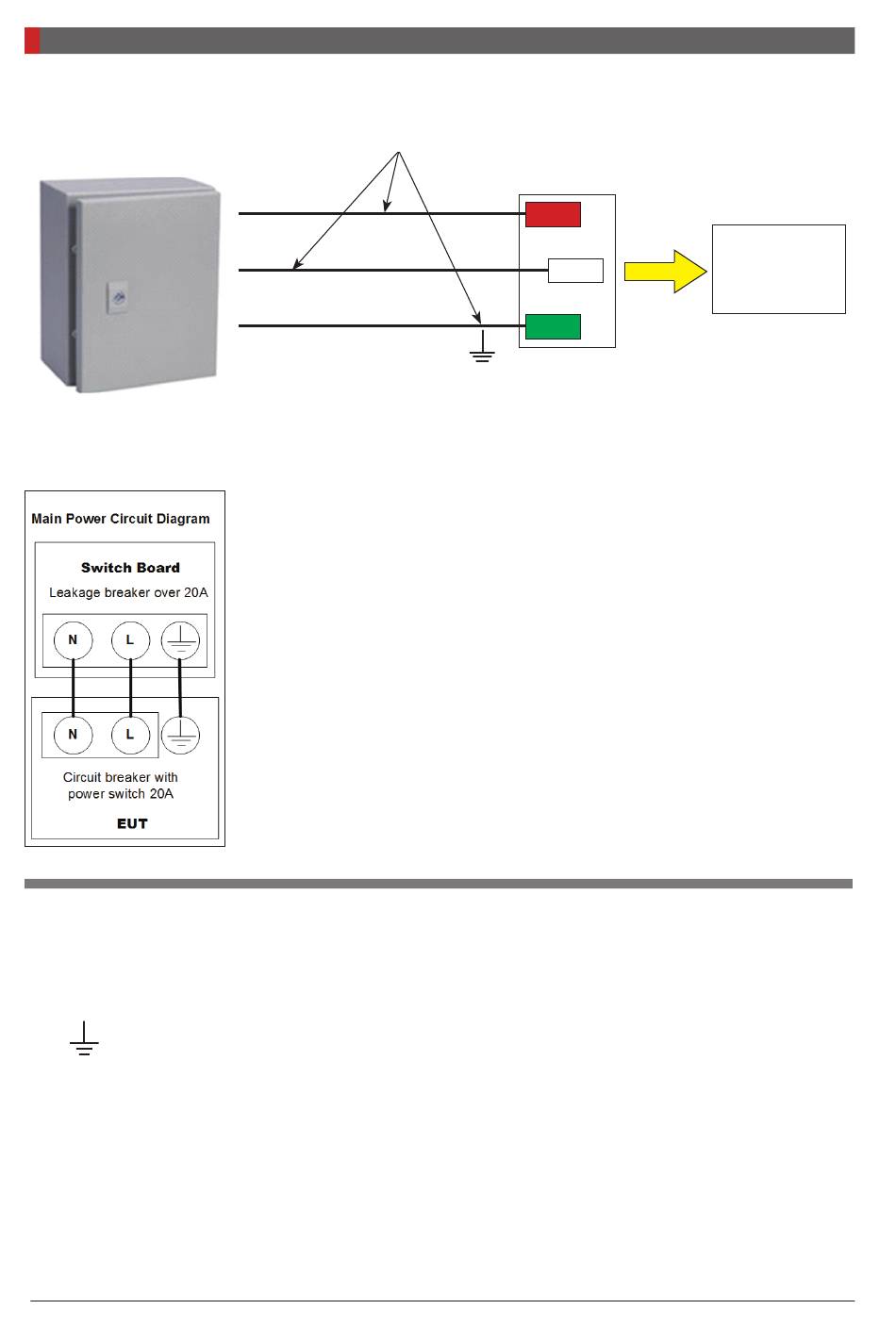

Central distribution panel
w/a circuit breaker
1. To assure line voltage quality, a separate 3-core grounded power cable connected directly to
central distribution panel with over-current circuit breaker rated for 20/15A must be used.
2. The mains resistance should not exceed 0.5 Ω.
3. This equipment should be connected to the earthed outlet.
24
No. 12 AWG or larger
Live
Neutral
Protective Ground (PE)
AC Outlet
Pax-i3D Smart(PHT-30LFO) Installation Manual
