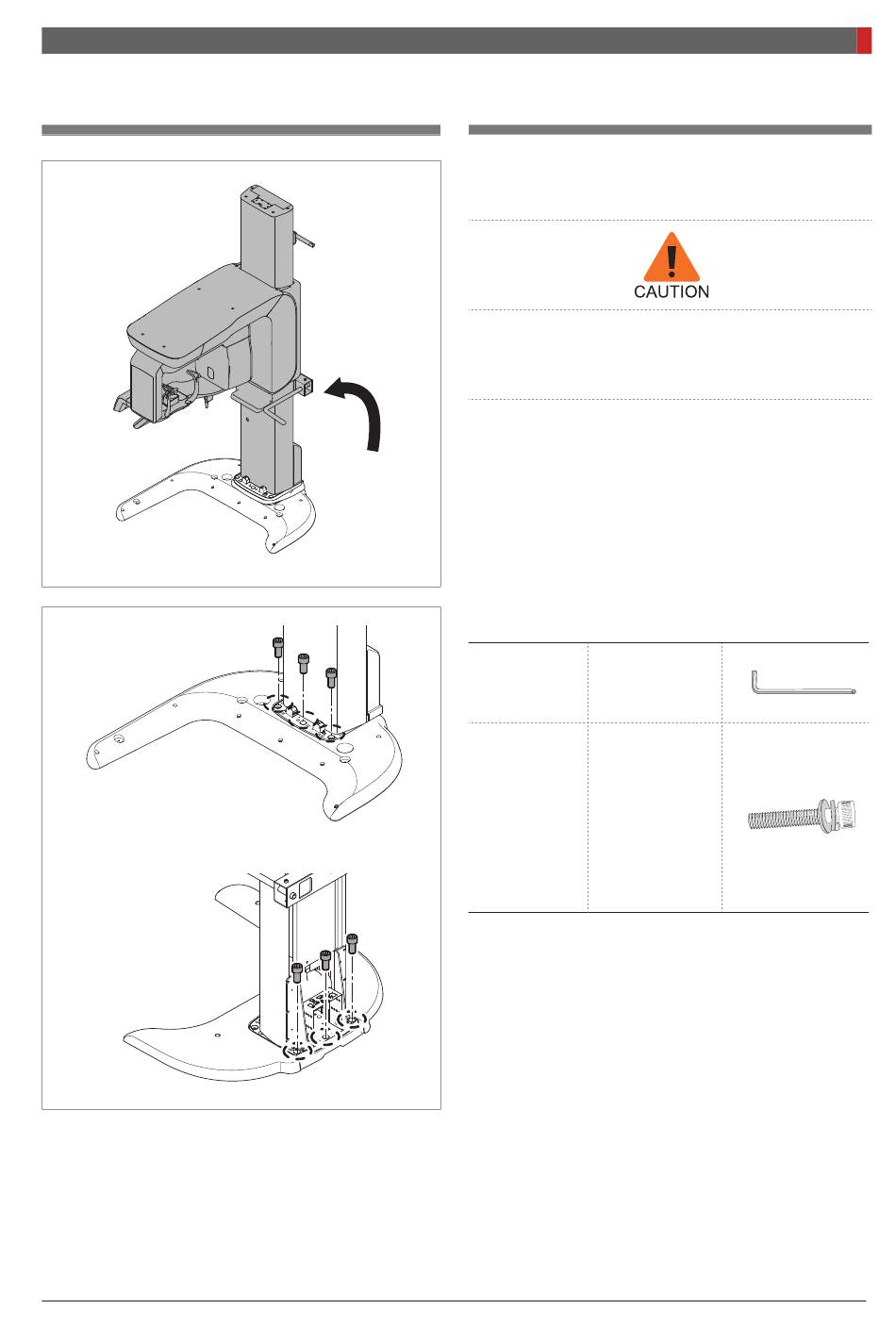

Pax-i3D Smart(PHT-30LFO) Installation Manual
4 Installing the Equipment: Floor Standing (Optional)
3. Erect the equipment in an upright position on
the base.
Be careful not to damage the cables. Before
erecting the equipment, keep them clear of
the equipment
4. Fix the column unit to the base unit.
Allen wrench
WRENCH
BOLT
8 mm/0.31"
M10 x 25
w/spring
and flat
washers
Part No.: 23
6 PCS
49
