Cbct Collimator Alignment - Vatech PaX-i3D Smart Installation Manual

9 Acquiring the test image

9.1.2 CBCT collimator Alignment

Left/Right Alignment
1. Remove the Temple support and Normal bite block from the unit

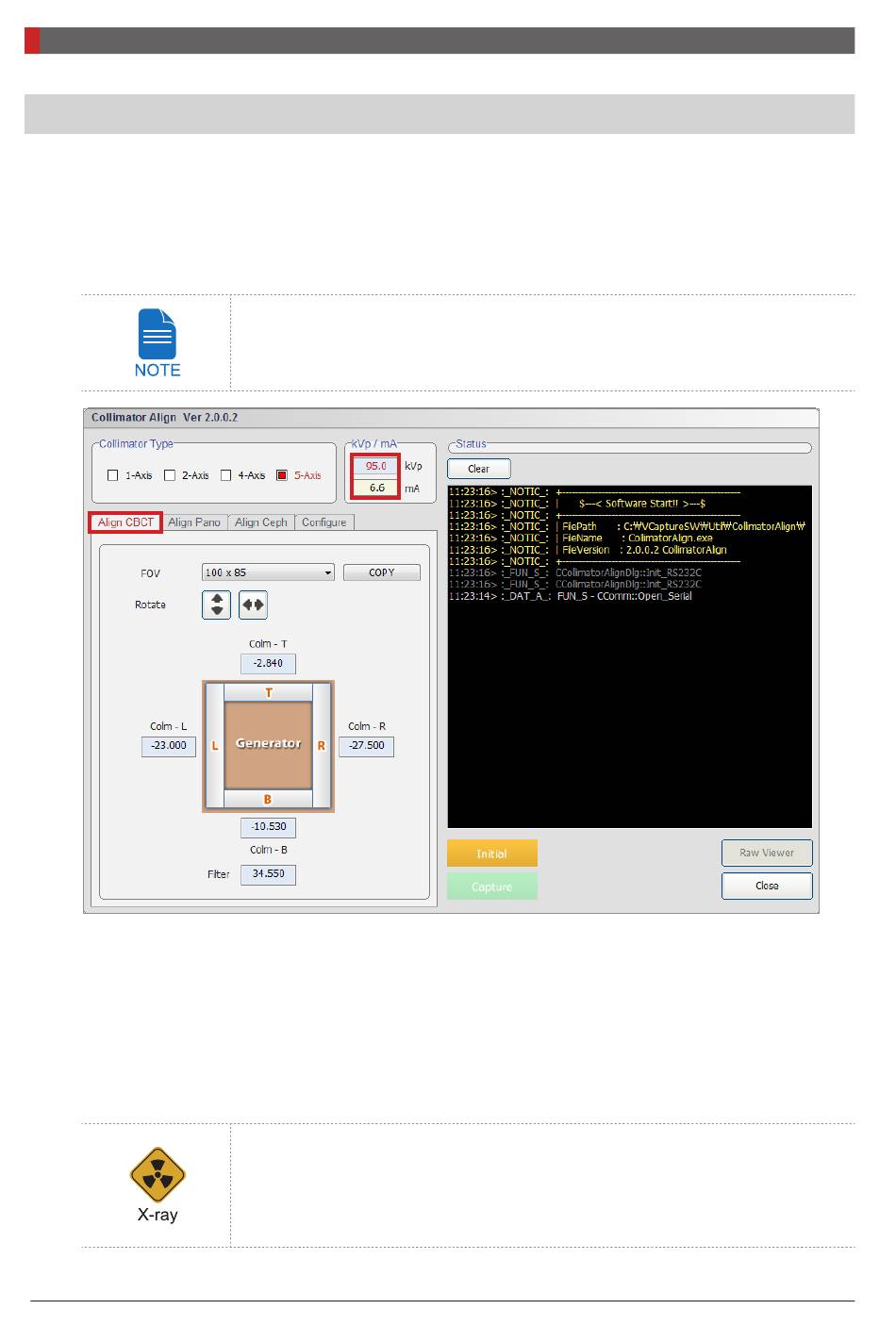

2. Run CollimatorAlign.exe.
3. Click Align CBCT tab.
4. Type 95 kVp, 6.6 mA in the KVp/mA filed.
5. Click Initial and wait until the system is initialized.
6. Click Capture when it is enabled.
7. When Align Sequence window appears, press the X-ray exposure switch
132
Path: C\VCaptureSW\Util\CollimatorAlign\CollimatorAlign.exe
Stay outside of the X-ray shielding room during the exposure.
Pax-i3D Smart(PHT-30LFO) Installation Manual
