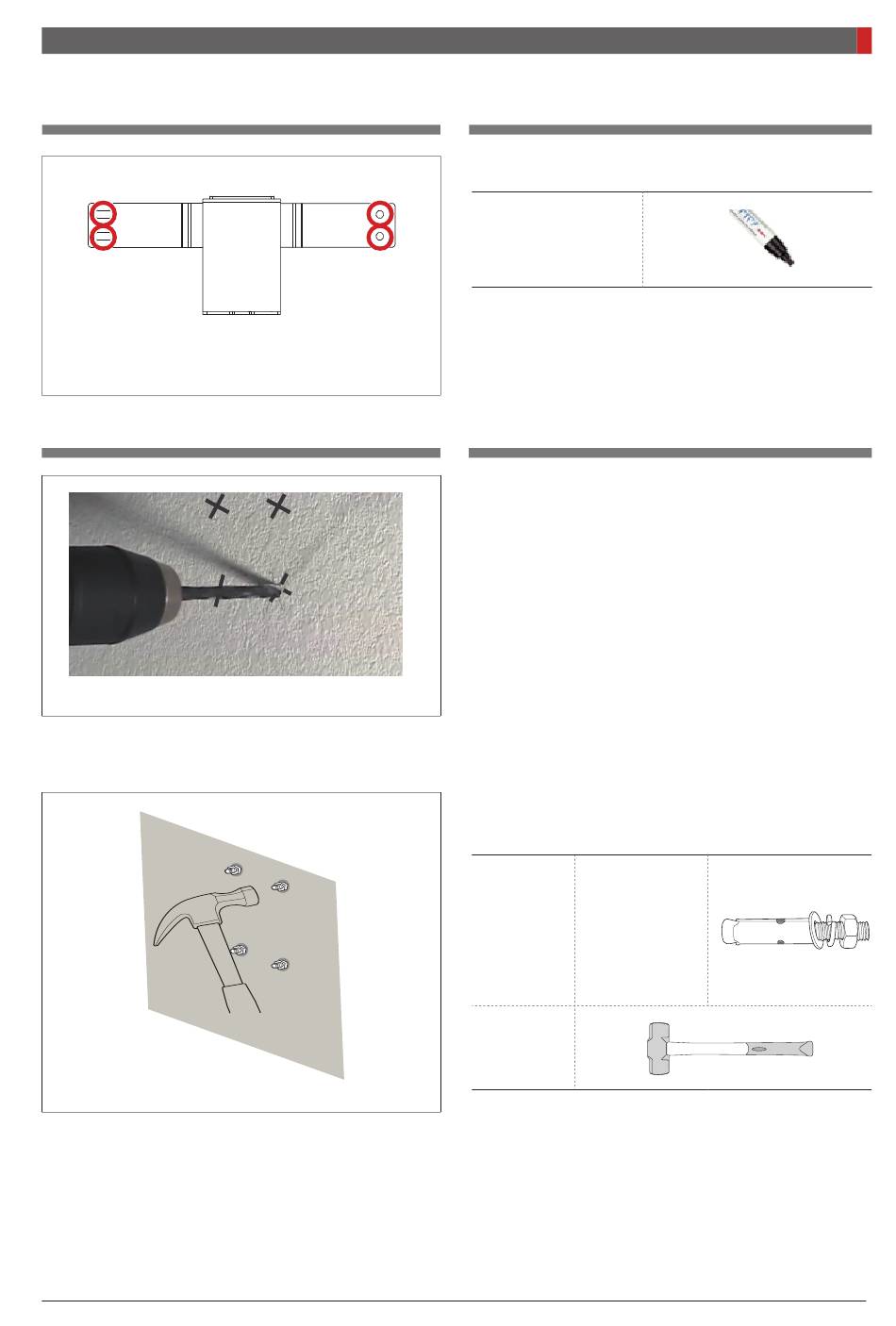

On the wall
Drilling on the wall
Pax-i3D Smart(PHT-30LFO) Installation Manual
4 Installing the Equipment: Floor Standing (Optional)
3. Mark 4 anchor bolts locations on the wall.
Marker
1. Drill the wall holes of size 10.5 mm x 30 mm
(depth) using the concrete hammer drill.
2. Remove the debris and clean the holes using
the dust pump.
3. Anchor the bolts with the hammer.Verify that
the anchors are secured
M8 Size
WRENCH
Part No.: 34
BOLTS
Wall: 4 PCS
Hammer
drill
57
