4 Installing the Equipment: Floor Standing (Optional)
4.7

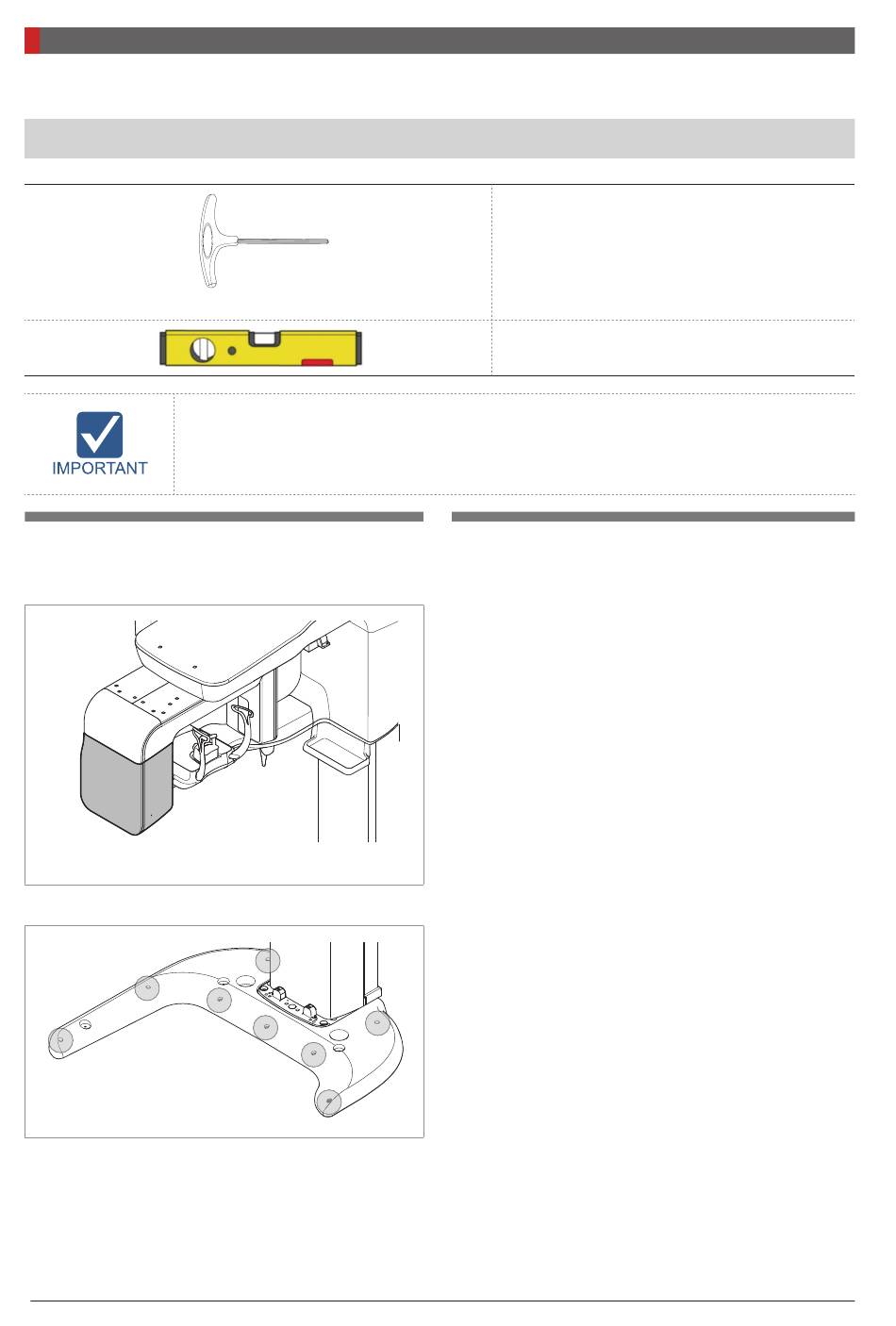

Leveling the Equipment

Ensure that the spirit level should restonly on the locations indicated in
the following figures to obtain the accurate center.
Tube head
64
8mm / 0.3"
T-shaped hex wrench
1. Prepare the spirit level.
2. Position the rotating unit so that the X-Ray
tube head faces the front.
3. Turn all eight screws on the base plate unit
clockwise until they touch the ground.
Pax-i3D Smart(PHT-30LFO) Installation Manual
Spirit level
