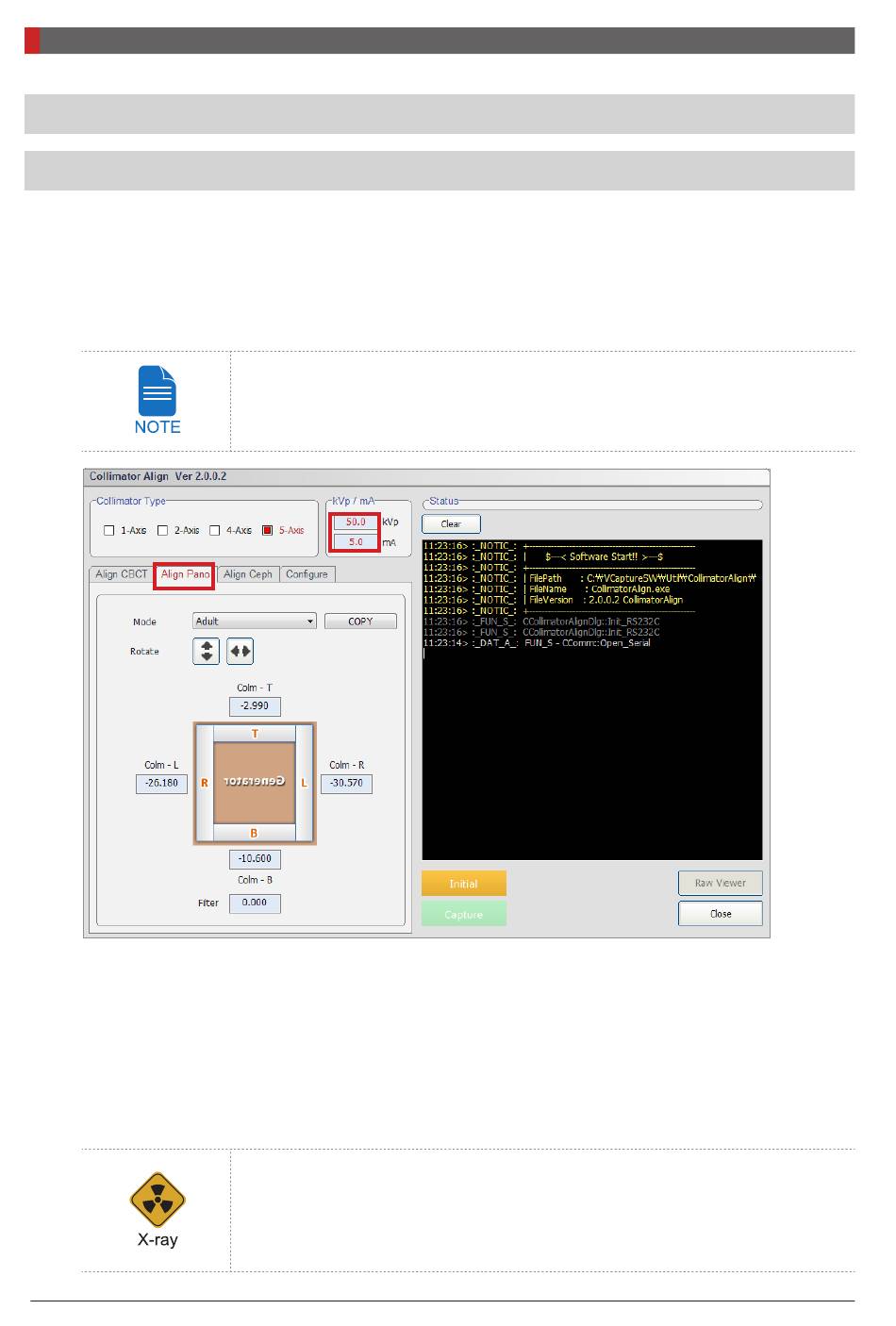

9 Acquiring the test image

9.1 Aligning the collimator

9.1.1 PANO collimator Alignment

Adult mode Alignment
1. Remove the Temple support and Normal bite block from the unit
2. Run CollimatorAlign.exe.
3. Click Align Pano tab.
4. Type 50 kVp, 5.0 mA in the KVp/mA filed.
5. Click Initial and wait until the system is initialized.
6. Click Capture when it is enabled.
7. When Align Sequence window appears, press the X-ray exposure switch
128
Path: C\VCaptureSW\Util\CollimatorAlign\CollimatorAlign.exe
Stay outside of the X-ray shielding room during the exposure.
