Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS 1. Introduction 2. Safety Information 3. Installation 4. Operation 5. Maintenance 6. Specification PAGE... -
Page 4: Introduction

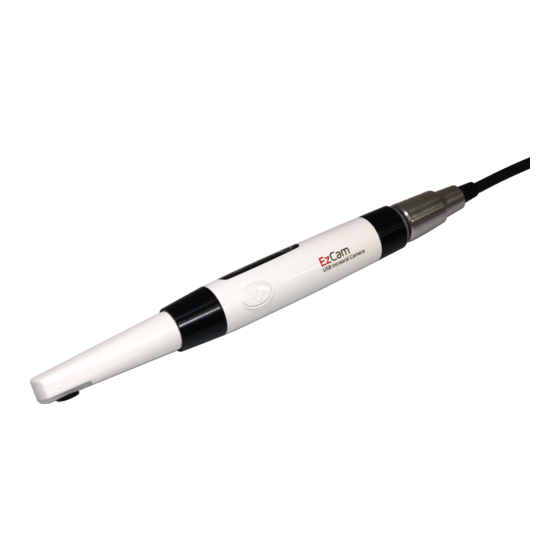

1. Introduction 1. Introduction 1.1 Overview The EzCam is the latest hand-held Intraoral Camera from Vatech. The advanced ergonomics of the handpiece design are comfortable and easy to use. The camera's integrated capture button makes image acquisition simple. The EzCam has the following features: —... - Page 5 1. Introduction Note Please read the entire contents of this manual before operating your EzCam Intra oral camera. Please keep this manual in a safe place for future reference. 1.2 System Parts — Handpiece — USB 2.0 Cable: 3m (Option: 5m) —...
-
Page 6: Safety Information
2. Safety Information 2. Safety Information The EzCam is designed in conformity with ISO, EMC & CE standards. To prevent damage to equipment and minimize the risks to patients, users, and third parties getting injured, please follow the safety notes and operate with care. - Page 7 2. Safety Information 2.2 Precautions — Do not expose your camera to liquids or store in a damp place (it is not waterproof). — Do not drop the handpiece. — Store the camera in a clean, dry and well ventilated place. —...
-
Page 8: Installation
3. Installation Warning — The EzCam is not waterproof. Do not immerse in water or any form of liquid. — Do not sterilize the handpiece by autoclave. — Beware of electromagnetic radiation generated from other electrical appliances, as they may cause the EzCam to malfunction. -
Page 9: Operation
4. Operation 4. Operation Image capture button/ ‚ User interface/ ƒ USB Plug /„ Camera lens/ … Camera status indicator/ † Macro indicator/ p Macro button PAGE... - Page 10 EzCam will automatically turn off and the Camera status indicator will change to blue. — The EzCam may be manually turned on/off by pressing and holding the power on/off button on the handpiece. The camera will automatically turn itself off after 10 minutes of inactivity.
-
Page 11: Maintenance
- Inspect the USB cable and connector to prevent damage on the camera system. Warning — The PC workstation that connects to the EzCam via compatible USB cable is an integral part of a Medical Electrical System. The PC must be a CE-approved computer system conforming with the EN60601-1 or EN60950-1. -
Page 12: Specification
6. Warranty & Service 6. Specification 6. Specification — Sensor: CMOS/5MP — Resolution: 1280X720 — Light Source: 2 White LEDs — Focus Range: 9mm~35mm — Angle of View: 62° — Length of Cable: USB 2.0, 3m (Option: 5m) — Dimension: 198 x 24 x 23mm (77.95x 9.45x 9 inch) —... - Page 13 Vatech France Floor 4, 51 Quai de Dion Bouton 92800 Puteaux, France DENTALL Co.,Ltd. 301-905 Bucheon Technopark, 345 Seokcheon-ro, Ojeong-gu, Bucheon-si, Gyeonggi-do, 14501 KOREA Tel: +82-32-327-6026 Fax: +82-32-327-6027 Disposal The device must be disposed of properly. Within the European Union, the device must be disposed of in accordance with EU Directive 2012/19/EU(WEEE).
- Page 14 SYMBOLS Direct current See instruction for use Attention, consult Manufacturer accompanying documents Keep dry Manufacture date Disposed of correctly in CE mark accordance with EU Directive 2012/19/EU(WEEE) Type B applied part Serial NO. Temperature limit Humidity limitation Atmospheric Pressure Limitation...
- Page 16 EzCam-V1.0/ 20200916...
