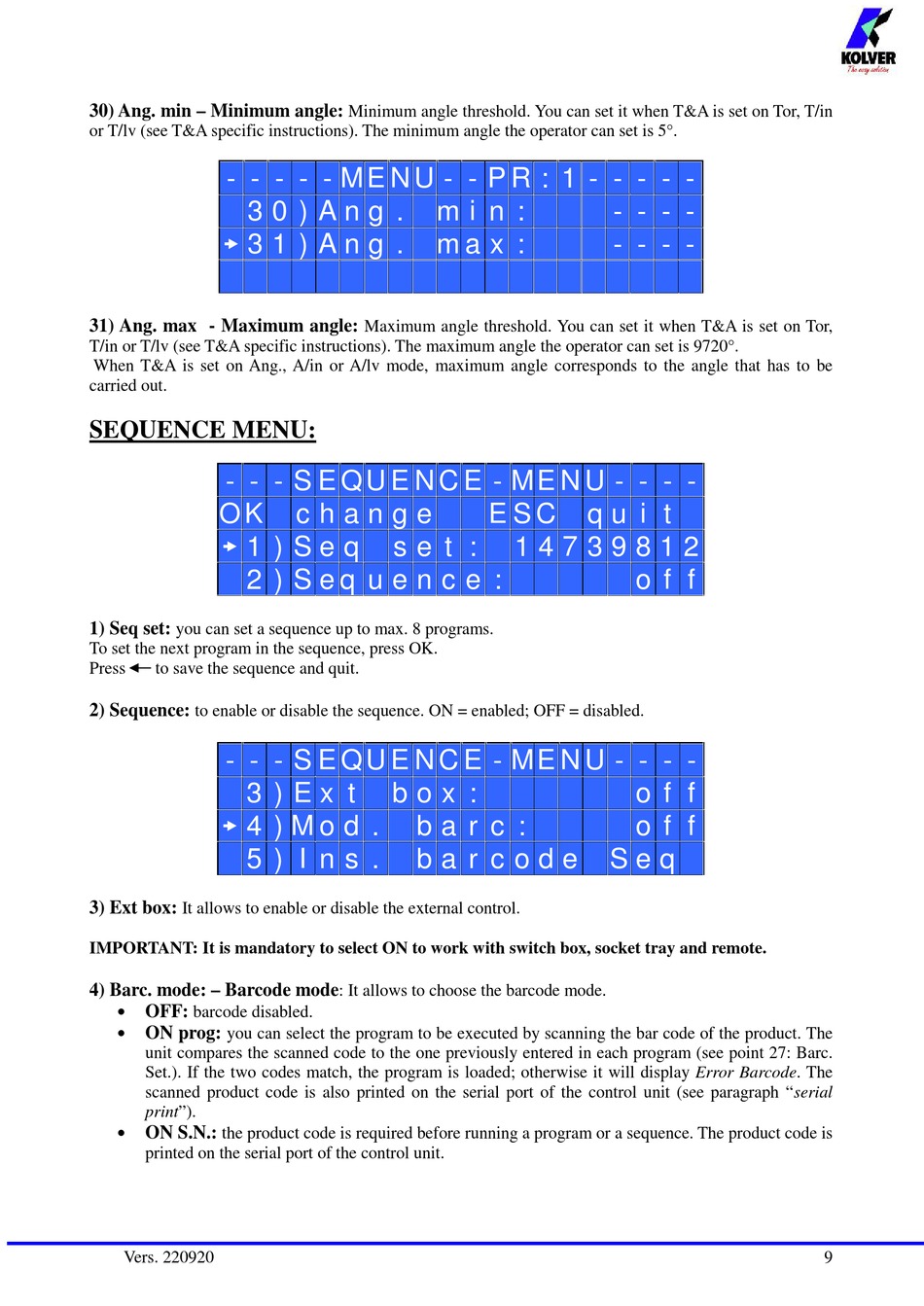

30) Ang. min – Minimum angle:
or T/lv (see T&A specific instructions). The minimum angle the operator can set is 5°.
- - - - - M E N U - - P R : 1 - - - - -
3 0 ) A n g .
3 1 ) A n g .
31) Ang. max - Maximum angle:
T/in or T/lv (see T&A specific instructions). The maximum angle the operator can set is 9720°.
When T&A is set on Ang., A/in or A/lv mode, maximum angle corresponds to the angle that has to be
carried out.
SEQUENCE MENU:
- - - S E Q U E N C E - M E N U - - - -
O K
1 ) S e q
2 ) S e q u e n c e :
1) Seq set:
you can set a sequence up to max. 8 programs.
To set the next program in the sequence, press OK.
Press
to save the sequence and quit.
2) Sequence:
to enable or disable the sequence. ON = enabled; OFF = disabled.
- - - S E Q U E N C E - M E N U - - - -
3 ) E x t
4 ) M o d .
5 ) I n s .
3) Ext box:
It allows to enable or disable the external control.
IMPORTANT: It is mandatory to select ON to work with switch box, socket tray and remote.
4) Barc. mode: – Barcode mode
OFF:
barcode disabled.
ON prog:
you can select the program to be executed by scanning the bar code of the product. The
unit compares the scanned code to the one previously entered in each program (see point 27: Barc.
Set.). If the two codes match, the program is loaded; otherwise it will display Error Barcode. The
scanned product code is also printed on the serial port of the control unit (see paragraph "serial
print").
ON S.N.:
the product code is required before running a program or a sequence. The product code is
printed on the serial port of the control unit.
Vers. 220920
Minimum angle threshold. You can set it when T&A is set on Tor, T/in
m i n :
m a x :
Maximum angle threshold. You can set it when T&A is set on Tor,
c h a n g e
s e t :
b o x :
b a r c :
b a r c o d e
: It allows to choose the barcode mode.
- - - -
- - - -
E S C
q u i t
1 4 7 3 9 8 1 2
o f f
o f f
o f f
S e q
9
