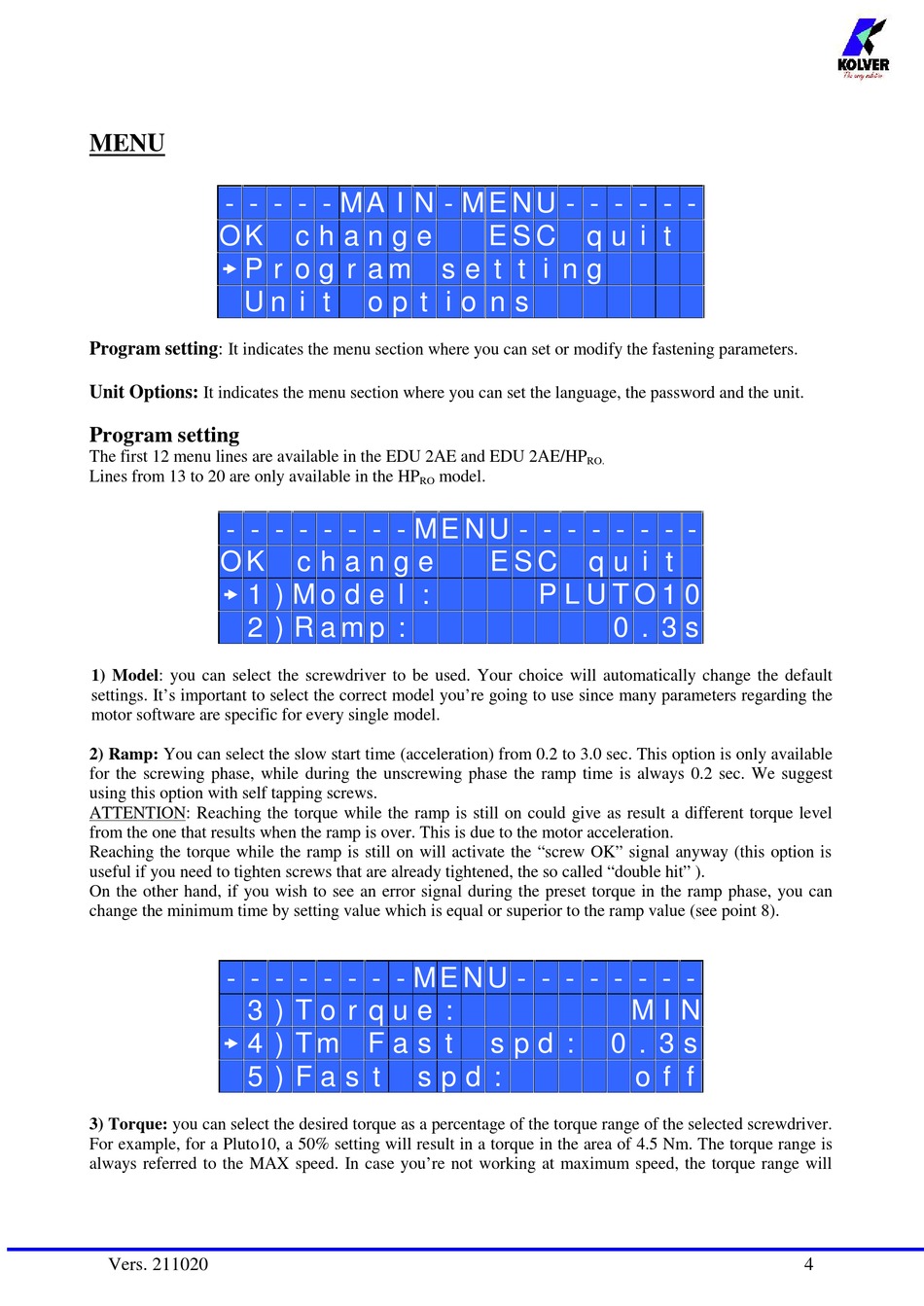

- - - - - M A I N - M E N U - - - - - -
O K
P r o g r a m

U n i t
Program setting:
It indicates the menu section where you can set or modify the fastening parameters.
Unit Options:
It indicates the menu section where you can set the language, the password and the unit.
Program setting
The first 12 menu lines are available in the EDU 2AE and EDU 2AE/HP
Lines from 13 to 20 are only available in the HP
- - - - - - - - M E N U - - - - - - - -
O K
1 ) M o d e l :

2 ) R a m p :
1) Model: you can select the screwdriver to be used. Your choice will automatically change the default
settings. It's important to select the correct model you're going to use since many parameters regarding the
motor software are specific for every single model.
2) Ramp: You can select the slow start time (acceleration) from 0.2 to 3.0 sec. This option is only available
for the screwing phase, while during the unscrewing phase the ramp time is always 0.2 sec. We suggest
using this option with self tapping screws.
ATTENTION: Reaching the torque while the ramp is still on could give as result a different torque level
from the one that results when the ramp is over. This is due to the motor acceleration.
Reaching the torque while the ramp is still on will activate the "screw OK" signal anyway (this option is
useful if you need to tighten screws that are already tightened, the so called "double hit" ).
On the other hand, if you wish to see an error signal during the preset torque in the ramp phase, you can
change the minimum time by setting value which is equal or superior to the ramp value (see point 8).
- - - - - - - - M E N U - - - - - - - -
3 ) T o r q u e :
 4 ) T m F a s t
5 ) F a s t
3) Torque: you can select the desired torque as a percentage of the torque range of the selected screwdriver.
For example, for a Pluto10, a 50% setting will result in a torque in the area of 4.5 Nm. The torque range is
always referred to the MAX speed. In case you're not working at maximum speed, the torque range will
