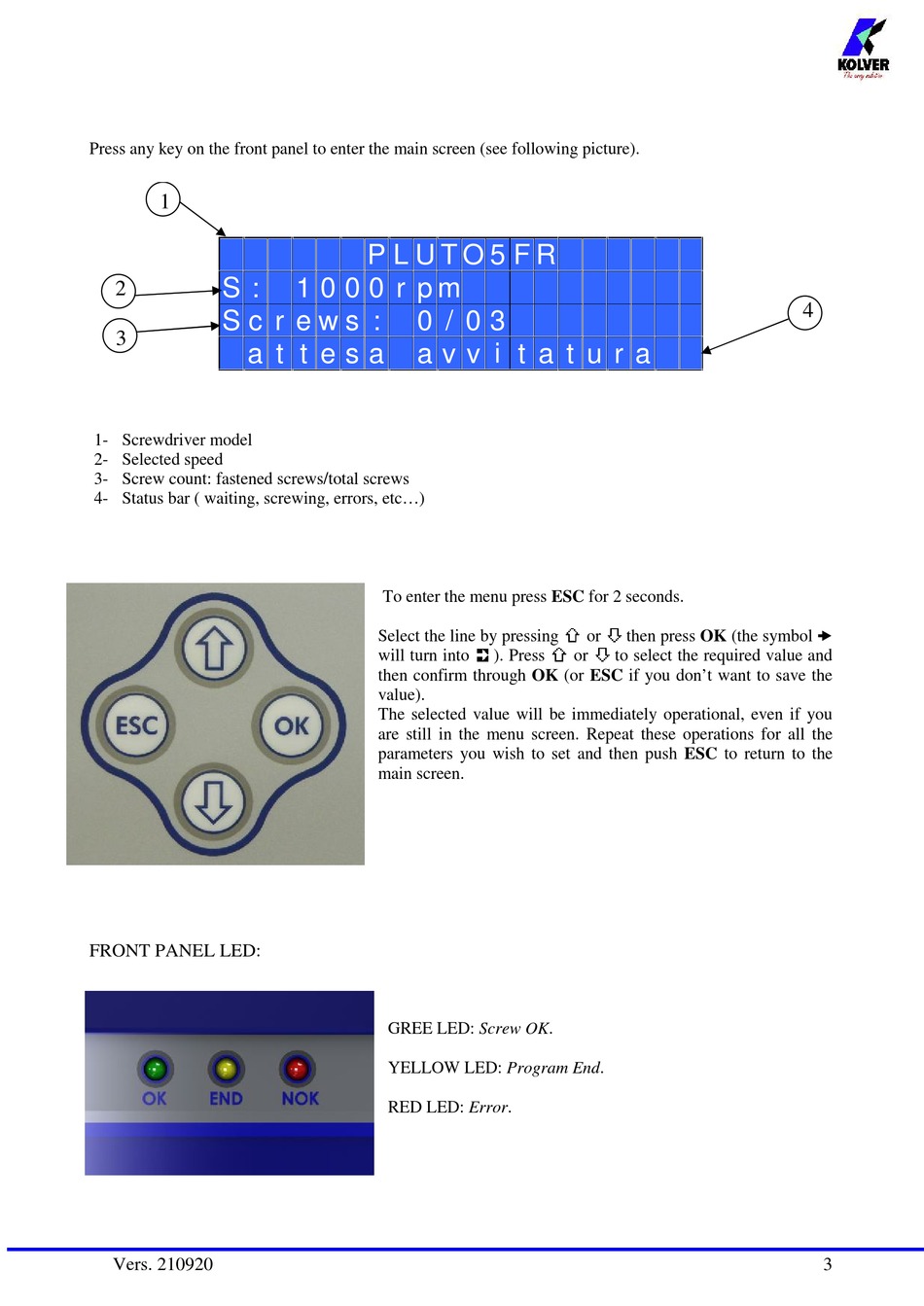

Press any key on the front panel to enter the main screen (see following picture).
1
S :
2 2
S c r e w s :
3
a t t e s a
1- Screwdriver model
2- Selected speed
3- Screw count: fastened screws/total screws
4- Status bar ( waiting, screwing, errors, etc...)
FRONT PANEL LED:
Vers. 210920
P L U T O 5 F R
1 0 0 0 r p m
0 / 0 3
a v v i t a t u r a
To enter the menu press ESC for 2 seconds.
Select the line by pressing
will turn into
then confirm through OK (or ESC if you don't want to save the
value).
The selected value will be immediately operational, even if you
are still in the menu screen. Repeat these operations for all the
parameters you wish to set and then push ESC to return to the
main screen.
GREE LED: Screw OK.
YELLOW LED: Program End.
RED LED: Error.
then press OK (the symbol
or
). Press
or
to select the required value and
4
3
