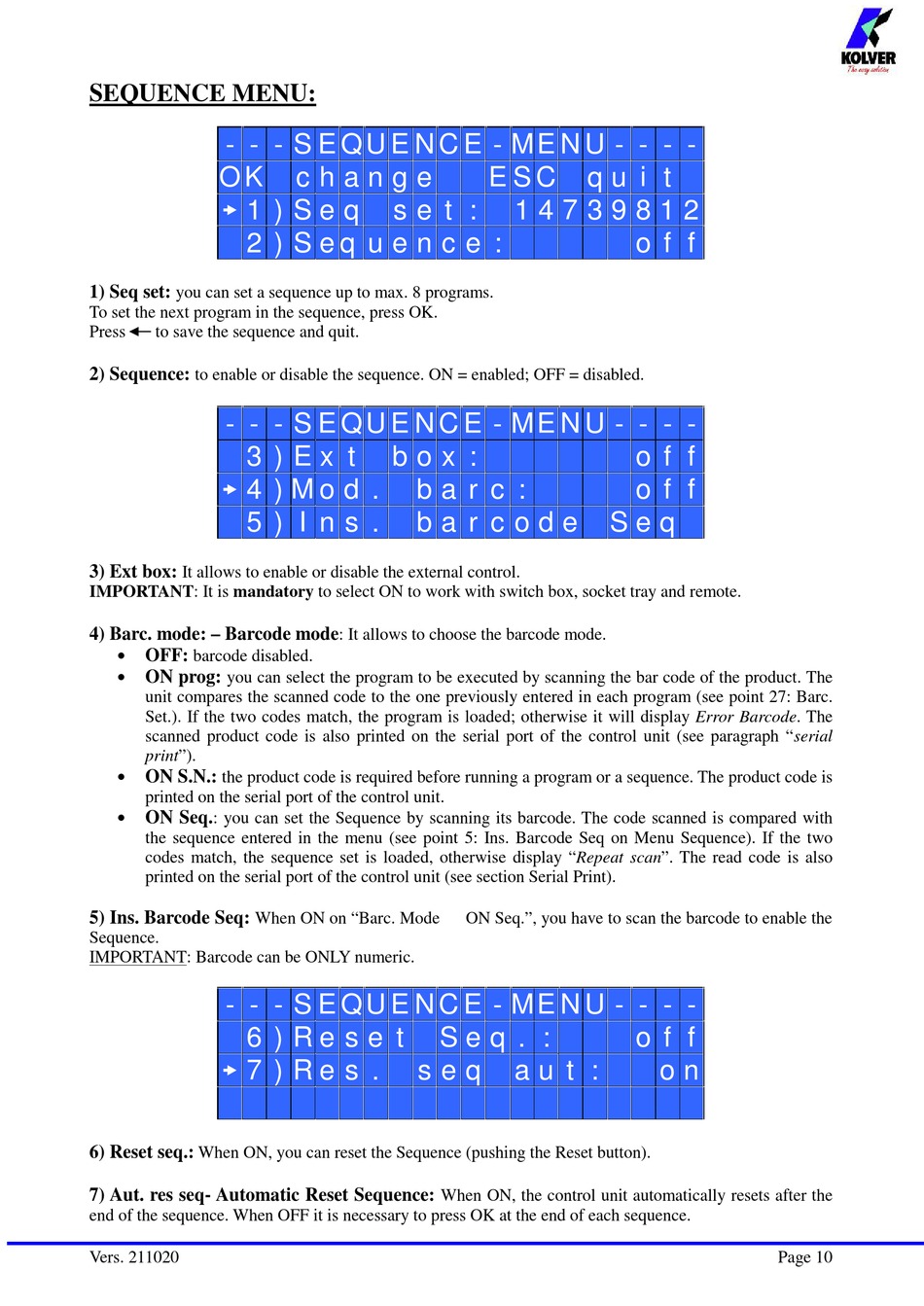

SEQUENCE MENU:
- - - S E Q U E N C E - M E N U - - - -
O K
1 ) S e q
2 ) S e q u e n c e :
1) Seq set:
you can set a sequence up to max. 8 programs.
To set the next program in the sequence, press OK.
Press
to save the sequence and quit.
2) Sequence:
to enable or disable the sequence. ON = enabled; OFF = disabled.
- - - S E Q U E N C E - M E N U - - - -
3 ) E x t
4 ) M o d .
5 ) I n s .
3) Ext box:
It allows to enable or disable the external control.
IMPORTANT: It is mandatory to select ON to work with switch box, socket tray and remote.
4) Barc. mode: – Barcode mode
OFF:
barcode disabled.
ON prog:
you can select the program to be executed by scanning the bar code of the product. The
unit compares the scanned code to the one previously entered in each program (see point 27: Barc.
Set.). If the two codes match, the program is loaded; otherwise it will display Error Barcode. The
scanned product code is also printed on the serial port of the control unit (see paragraph "serial
print").
ON S.N.:
the product code is required before running a program or a sequence. The product code is
printed on the serial port of the control unit.
ON Seq.
: you can set the Sequence by scanning its barcode. The code scanned is compared with
the sequence entered in the menu (see point 5: Ins. Barcode Seq on Menu Sequence). If the two
codes match, the sequence set is loaded, otherwise display "Repeat scan". The read code is also
printed on the serial port of the control unit (see section Serial Print).
5) Ins. Barcode Seq:
When ON on "Barc. Mode → ON Seq.", you have to scan the barcode to enable the
Sequence.
IMPORTANT: Barcode can be ONLY numeric.
- - - S E Q U E N C E - M E N U - - - -
6 ) R e s e t
7 ) R e s .
6) Reset seq.:
When ON, you can reset the Sequence (pushing the Reset button).
7) Aut. res seq- Automatic Reset Sequence:
end of the sequence. When OFF it is necessary to press OK at the end of each sequence.
Vers. 211020
c h a n g e
s e t :
b o x :
b a r c :
b a r c o d e
: It allows to choose the barcode mode.
S e q . :
s e q
When ON, the control unit automatically resets after the
E S C
q u i t
1 4 7 3 9 8 1 2
o f f
o f f
o f f
S e q
o f f
a u t :
o n
Page 10
