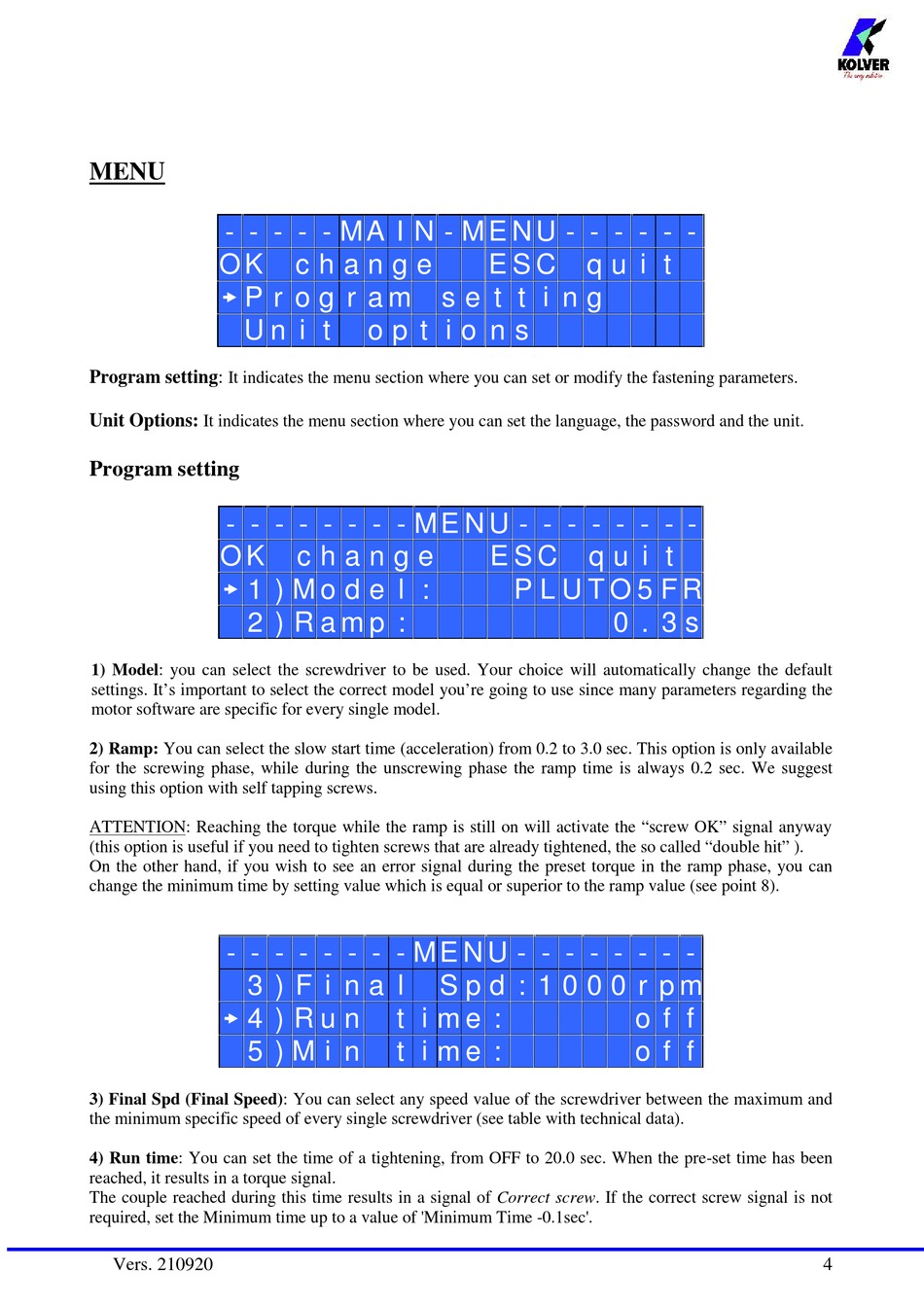

MENU
- - - - - M A I N - M E N U - - - - - -
O K
P r o g r a m
U n i t
Program setting:
It indicates the menu section where you can set or modify the fastening parameters.
Unit Options:
It indicates the menu section where you can set the language, the password and the unit.
Program setting
- - - - - - - - M E N U - - - - - - - -
O K
1 ) M o d e l :
2 ) R a m p :
1) Model: you can select the screwdriver to be used. Your choice will automatically change the default
settings. It's important to select the correct model you're going to use since many parameters regarding the
motor software are specific for every single model.
2) Ramp: You can select the slow start time (acceleration) from 0.2 to 3.0 sec. This option is only available
for the screwing phase, while during the unscrewing phase the ramp time is always 0.2 sec. We suggest
using this option with self tapping screws.
ATTENTION: Reaching the torque while the ramp is still on will activate the "screw OK" signal anyway
(this option is useful if you need to tighten screws that are already tightened, the so called "double hit" ).
On the other hand, if you wish to see an error signal during the preset torque in the ramp phase, you can
change the minimum time by setting value which is equal or superior to the ramp value (see point 8).
- - - - - - - - M E N U - - - - - - - -
3 ) F i n a l
4 ) R u n
5 ) M i n
3) Final Spd (Final Speed): You can select any speed value of the screwdriver between the maximum and
the minimum specific speed of every single screwdriver (see table with technical data).
4) Run time: You can set the time of a tightening, from OFF to 20.0 sec. When the pre-set time has been
reached, it results in a torque signal.
The couple reached during this time results in a signal of Correct screw. If the correct screw signal is not
required, set the Minimum time up to a value of 'Minimum Time -0.1sec'.
Vers. 210920
c h a n g e
s e t t i n g
o p t i o n s
c h a n g e
S p d : 1 0 0 0 r p m
t i m e :
t i m e :
E S C
q u i t
E S C
q u i t
P L U T O 5 F R
0 . 3 s
o f f
o f f
4
