automatically disappear at next screwing or when you enter the menu. Otherwise, press OK at the end of
each program.
ATTENTION: Every time you enter the menu, the number of screws resets to zero.

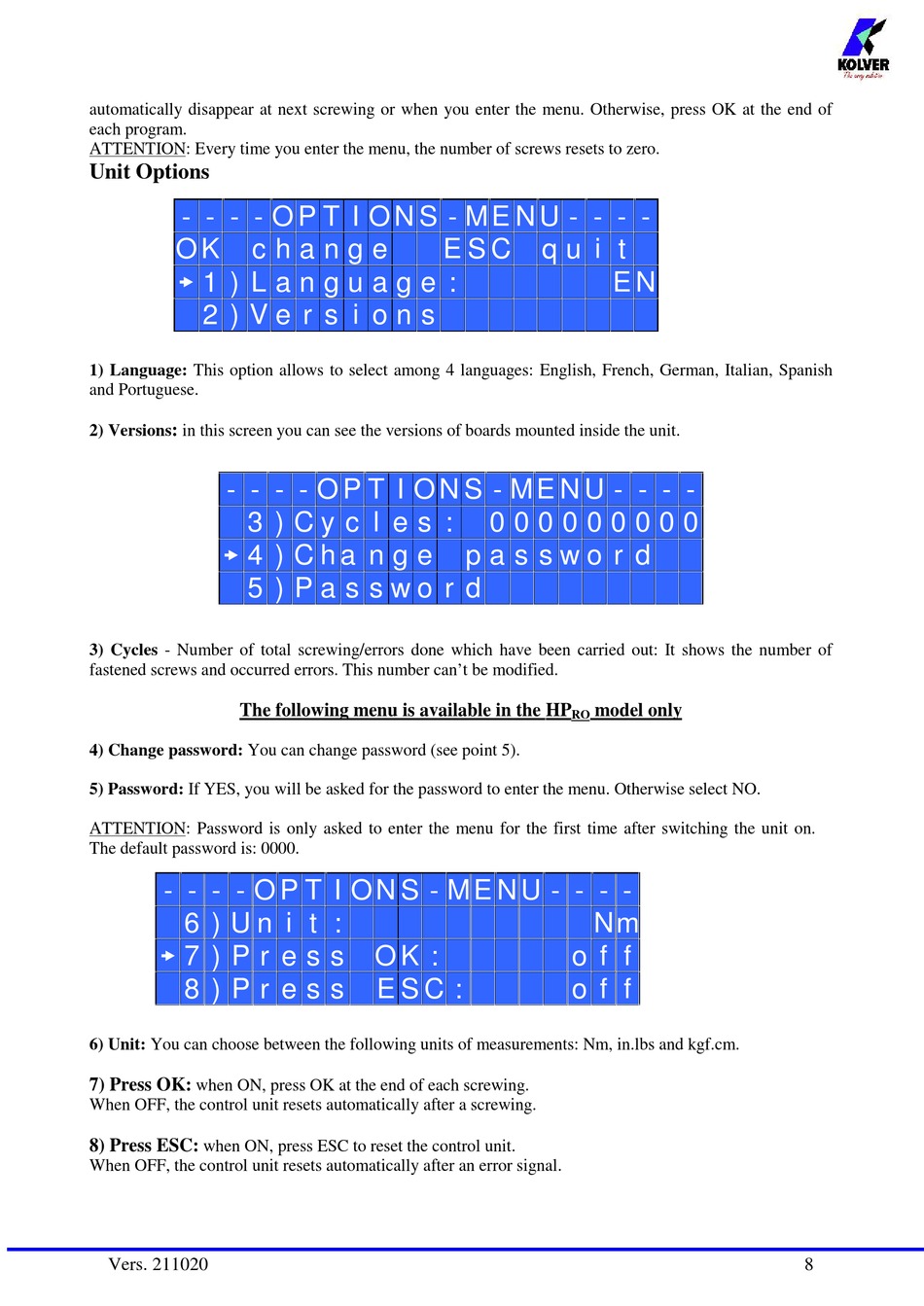

Unit Options
- - - - O P T I O N S - M E N U - - - -
O K
c h a n g e
1 ) L a n g u a g e :
2 ) V e r s i o n s
1) Language: This option allows to select among 4 languages: English, French, German, Italian, Spanish
and Portuguese.
:
2) Versions
in this screen you can see the versions of boards mounted inside the unit.
- - - - O P T I O N S - M E N U - - - -
3 ) C y c l e s :
4 ) C h a n g e
5 ) P a s s w o r d
3) Cycles - Number of total screwing/errors done which have been carried out: It shows the number of
fastened screws and occurred errors. This number can't be modified.
The following menu is available in the HP
4) Change password: You can change password (see point 5).
5) Password: If YES, you will be asked for the password to enter the menu. Otherwise select NO.
ATTENTION: Password is only asked to enter the menu for the first time after switching the unit on.
The default password is: 0000.
- - - - O P T I O N S - M E N U - - - -
6 ) U n i t :
7 ) P r e s s
8 ) P r e s s
6) Unit: You can choose between the following units of measurements: Nm, in.lbs and kgf.cm.
7) Press OK:
when ON, press OK at the end of each screwing.
When OFF, the control unit resets automatically after a screwing.
8) Press ESC:
when ON, press ESC to reset the control unit.
When OFF, the control unit resets automatically after an error signal.
Vers. 211020
E S C
q u i t
0 0 0 0 0 0 0 0 0
p a s s w o r d
O K :
E S C :
E N
model only
RO
Nm
o f f
o f f
8
