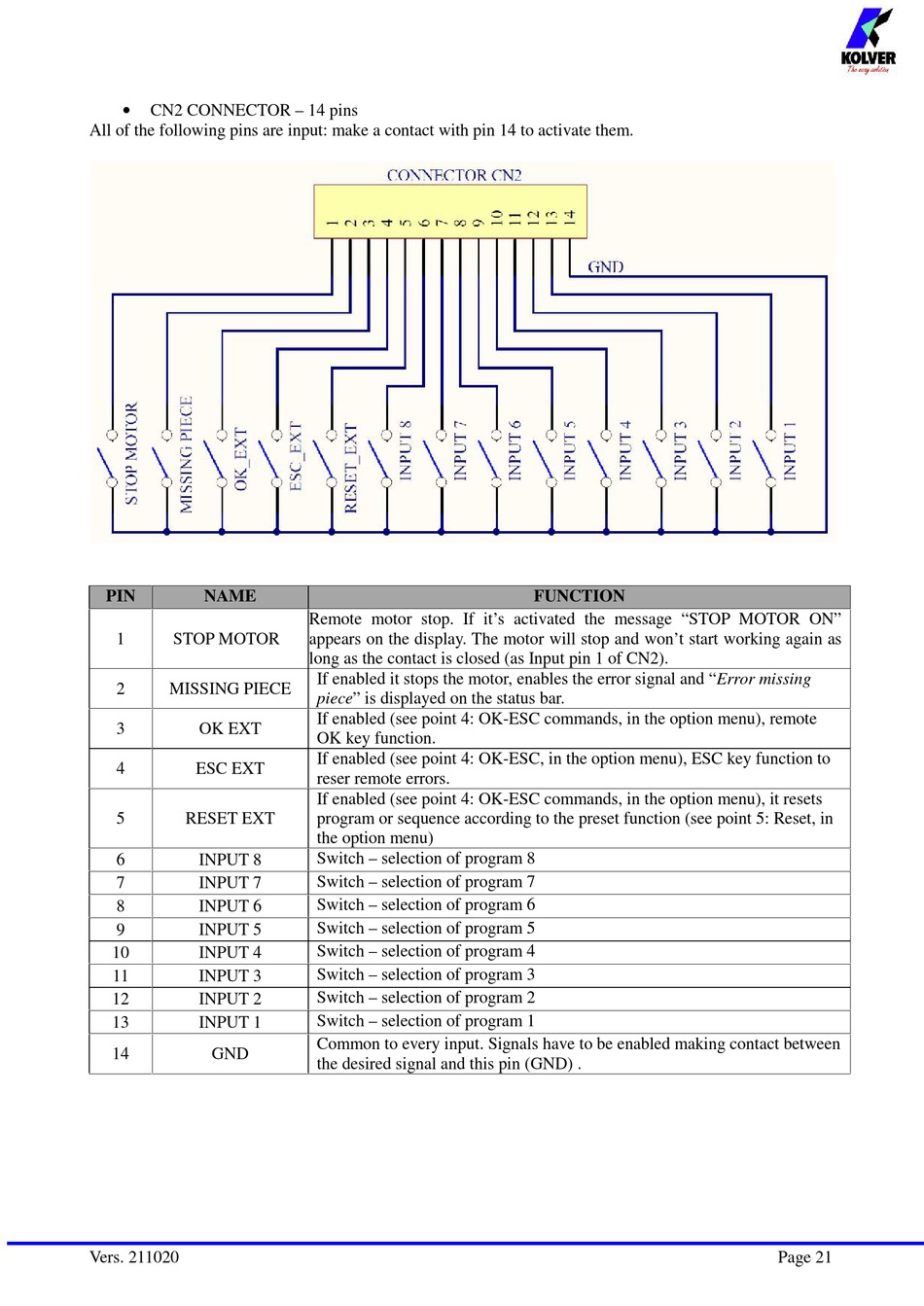

CN2 CONNECTOR – 14 pins
All of the following pins are input: make a contact with pin 14 to activate them.
PIN
NAME
1
STOP MOTOR
2
MISSING PIECE
3
OK EXT
4
ESC EXT
5
RESET EXT
6
INPUT 8
7
INPUT 7
8
INPUT 6
9
INPUT 5
10
INPUT 4
11
INPUT 3
12
INPUT 2
13
INPUT 1
14
GND
Vers. 211020
Remote motor stop. If it's activated the message "STOP MOTOR ON"
appears on the display. The motor will stop and won't start working again as
long as the contact is closed (as Input pin 1 of CN2).
If enabled it stops the motor, enables the error signal and "Error missing
piece" is displayed on the status bar.
If enabled (see point 4: OK-ESC commands, in the option menu), remote
OK key function.
If enabled (see point 4: OK-ESC, in the option menu), ESC key function to
reser remote errors.
If enabled (see point 4: OK-ESC commands, in the option menu), it resets
program or sequence according to the preset function (see point 5: Reset, in
the option menu)
Switch – selection of program 8
Switch – selection of program 7
Switch – selection of program 6
Switch – selection of program 5
Switch – selection of program 4
Switch – selection of program 3
Switch – selection of program 2
Switch – selection of program 1
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin (GND) .
FUNCTION
Page 21
